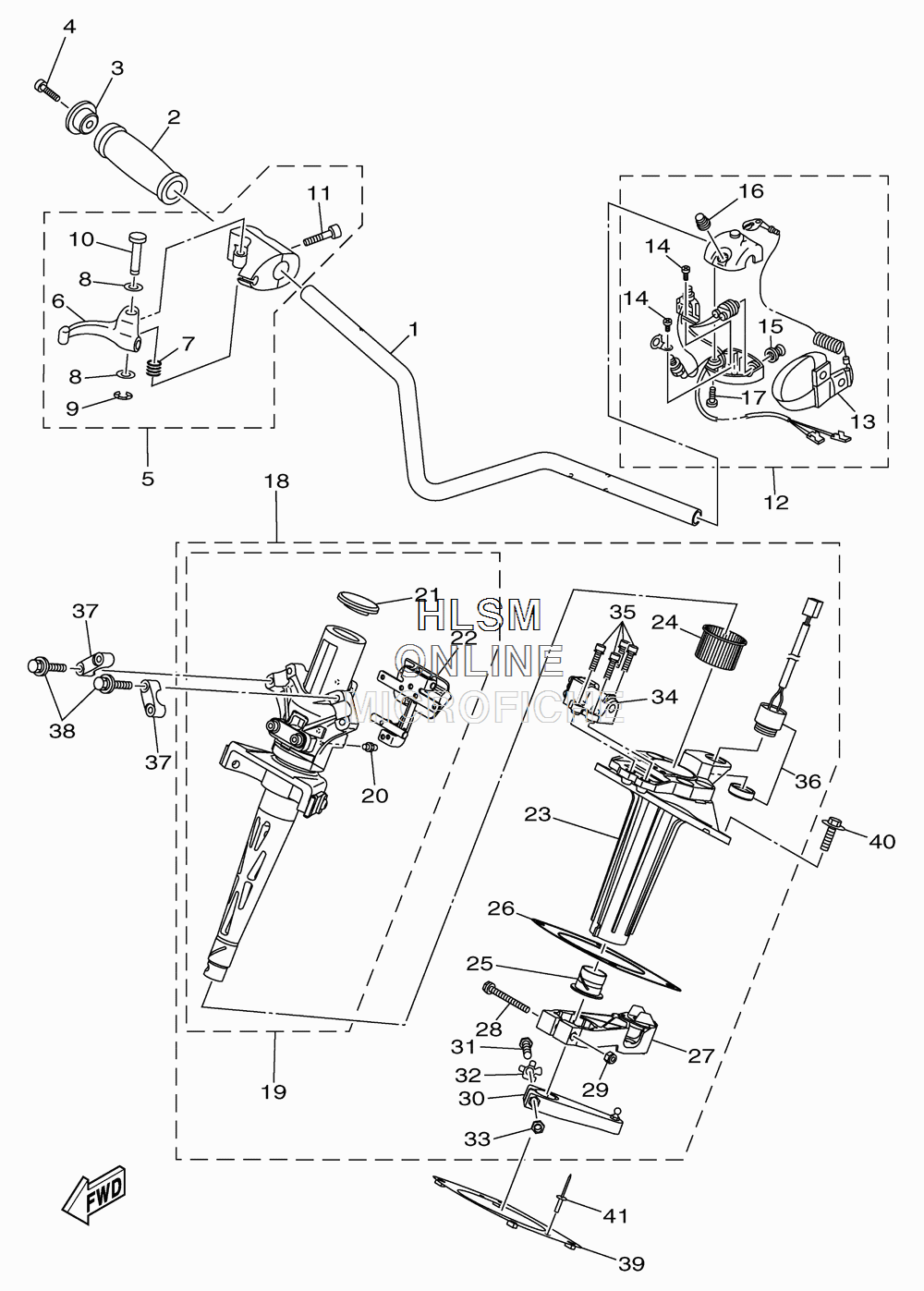

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha FZR - 2010 года выпуска
-
№АртикулНазвание
-
1F2C-U1552-00-00 HANDLEHANDLE
-
2GP7-U155D-01-00 GRIP, HANDLEGRIP, HANDLE
-
3GP7-U155F-00-00 GRIP, ENDGRIP, END
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F0D-67250-10-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
6F0D-67255-02-00 LEVER, THROTTLELEVER, THROTTLE
-
7EW2-67256-00-00 SPRINGSPRING
-
8EW2-67258-01-00 WASHERWASHER
-
9EW2-67259-01-00 CLIPCLIP
-
10F0D-67257-00-00 SHAFTSHAFT
-
11F1X-6725F-01-00 BOLT, THROTTLEBOLT, THROTTLE
-
12F2C-68310-00-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
13EW2-68348-00-00 LANYARD, STOP SWITCHLANYARD, STOP SWITCH
-
1497880-03008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
15FK7-68312-02-00 STOP BUTTON COMPSTOP BUTTON COMP
-
16FK7-68313-02-00 START BUTTON COMP.START BUTTON COMP.
-
1797880-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
18F2C-61400-00-00 STEERING MASTER ASSYSTEERING MASTER ASSY
-
19F2C-67410-00-00 SHAFT ASSYSHAFT ASSY
-
20F2C-6151T-00-00 NIPPLE, GREASENIPPLE, GREASE
-
21F2C-613B0-00-00 CAPCAP
-
22F2C-6287A-00-00 LOCK ASSYLOCK ASSY
-
23F2C-6152M-00-00 HOUSING ASSYHOUSING ASSY
-
24F1K-6134M-00-00 BUSHBUSH
-
25F2C-6134M-00-00 BUSHBUSH
-
26F2C-6143C-00-00 SEAL, RUBBERSEAL, RUBBER
-
27F2C-6146A-00-00 CABLE STOPPER ASSY.CABLE STOPPER ASSY.
-
28F2C-61369-00-00 BOLTBOLT
-
2995720-06300-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
30F2C-6153R-00-00 ARM ASSY.ARM ASSY.
-
31F1K-61355-00-00 BOLTBOLT
-
32F1K-6142B-00-00 PLATE, RETAININGPLATE, RETAINING
-
3395720-06300-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
34F1W-68303-00-00 SENSOR ASSYSENSOR ASSY
-
35F1W-61516-00-00 BOLTBOLT
-
36F1S-68341-00-00 BUZZERBUZZER
-
37EU0-23814-30-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
3890119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
39F2C-U1554-00-00 PLATE, RETAININGPLATE, RETAINING
-
4090119-08836-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4190267-48806-00 RIVET, BLINDRIVET, BLIND
