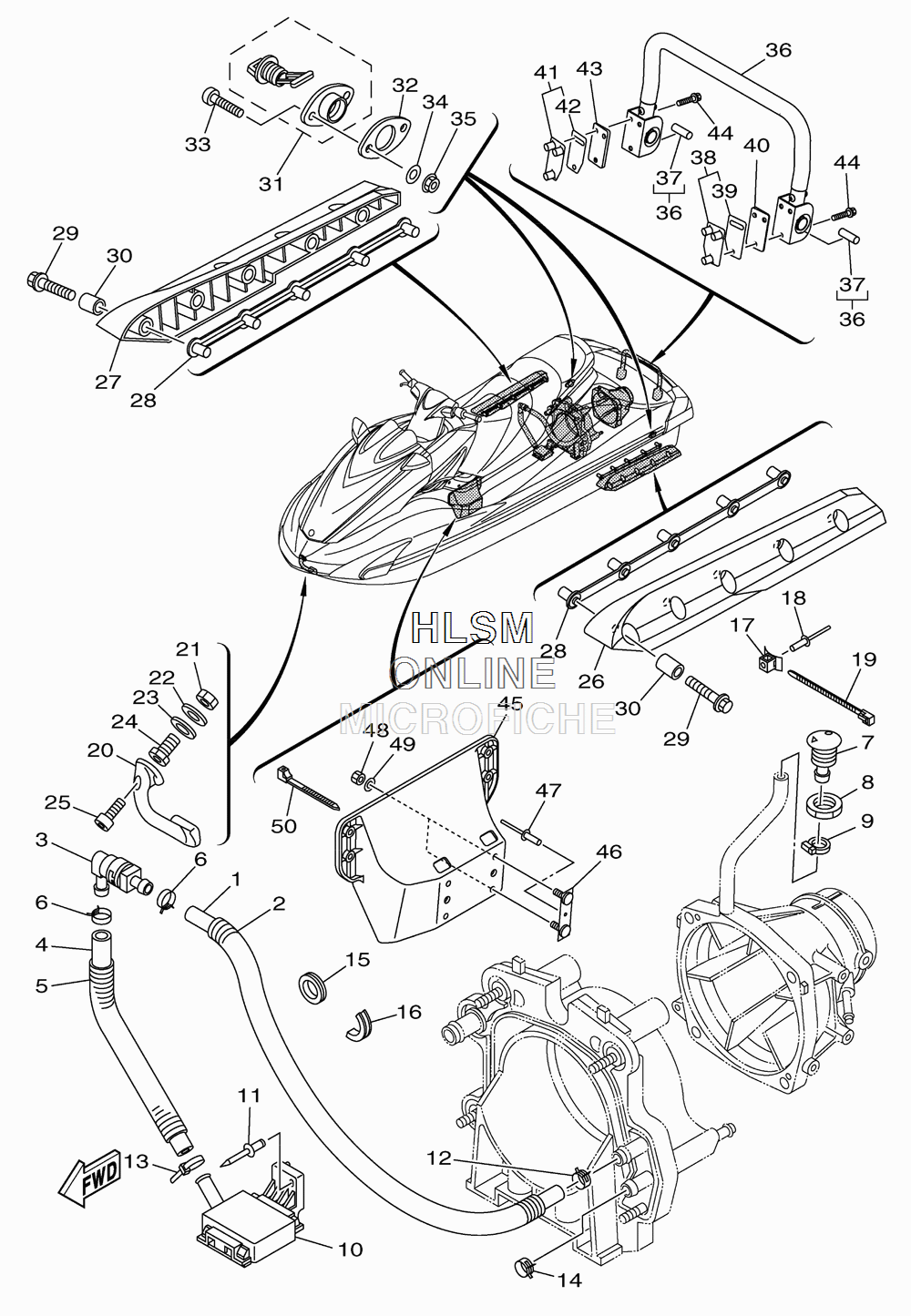

HULL FITTINGS W/ SPONSONS для Yamaha FZR - 2010 года выпуска`
-
№АртикулНазвание
-
190445-20804-00 HOSE (L860)HOSE (L860)
-
290446-27M73-00 HOSE (L700)HOSE (L700)
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-20800-00 HOSE (L500)HOSE (L500)
-
590446-27M55-00 TUBE (L400)TUBE (L400)
-
690467-18804-00 CLIPCLIP
-
7F1W-U269B-00-00 SPOUTSPOUT
-
8EU0-61652-00-00 NUTNUT
-
990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
10F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
1190267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1290467-21800-00 CLIPCLIP
-
1390601-200U1-00 BANDBAND
-
1490467-200A0-00 CLIPCLIP
-
1590480-38800-00 GROMMETGROMMET
-
16F1S-U828H-01-00 TRIM, 1TRIM, 1
-
17F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1890267-48802-00 RIVET, BLINDRIVET, BLIND
-
1990464-32801-00 CLAMPCLAMP
-
20F1K-61624-00-00 BOWEYE 1BOWEYE 1
-
2199780-12600-00 NUT.HEX.(COARS)NUT.HEX.(COARS)
-
2292990-12200-00 WASHER, PLAINWASHER, PLAIN
-
23F0X-61637-00-00 WASHERWASHER
-
24F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
2590110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
26F1S-U883N-01-00 STABILIZER LEFT HANDSTABILIZER LEFT HAND
-
27F1S-U883P-01-00 STABILIZER RIGHT HANDSTABILIZER RIGHT HAND
-
28F1X-U883T-01-00 BRACKET,STABILIZERBRACKET,STABILIZER
-
2990105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
30F2N-U8169-00-00 SPACERSPACER
-
31F1S-U2280-00-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
32F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
339788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
349299R-05200-00 WASHERWASHER
-
359572R-05300-00 NUT, FLANGENUT, FLANGE
-
36F2C-U278A-00-00 LADDER, STEP ASSYLADDER, STEP ASSY
-
37F1W-U771H-00-00 SLEEVE 1SLEEVE 1
-
38F2C-U278F-00-00 BRACKET, LADDER LEFT HANDBRACKET, LADDER LEFT HAND
-
39F2C-U278H-00-00 PACKING, BRKT. 1PACKING, BRKT. 1
-
40F2C-U278L-00-00 BRACKET 2BRACKET 2
-
41F2C-U278G-00-00 BRACKET, LADDER RIGHT HANDBRACKET, LADDER RIGHT HAND
-
42F2C-U278H-00-00 PACKING, BRKT. 1PACKING, BRKT. 1
-
43F2C-U278K-00-00 BRACKET 1BRACKET 1
-
4490119-08844-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
45F1W-U8572-01-00 BRACKET 2BRACKET 2
-
46F1K-U826C-03-00 BRACKETBRACKET
-
4790267-489U1-00 RIVET,BLINDRIVET,BLIND
-
489572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
499299R-08200-00 WASHERWASHER
-
5090464-32801-00 CLAMPCLAMP
