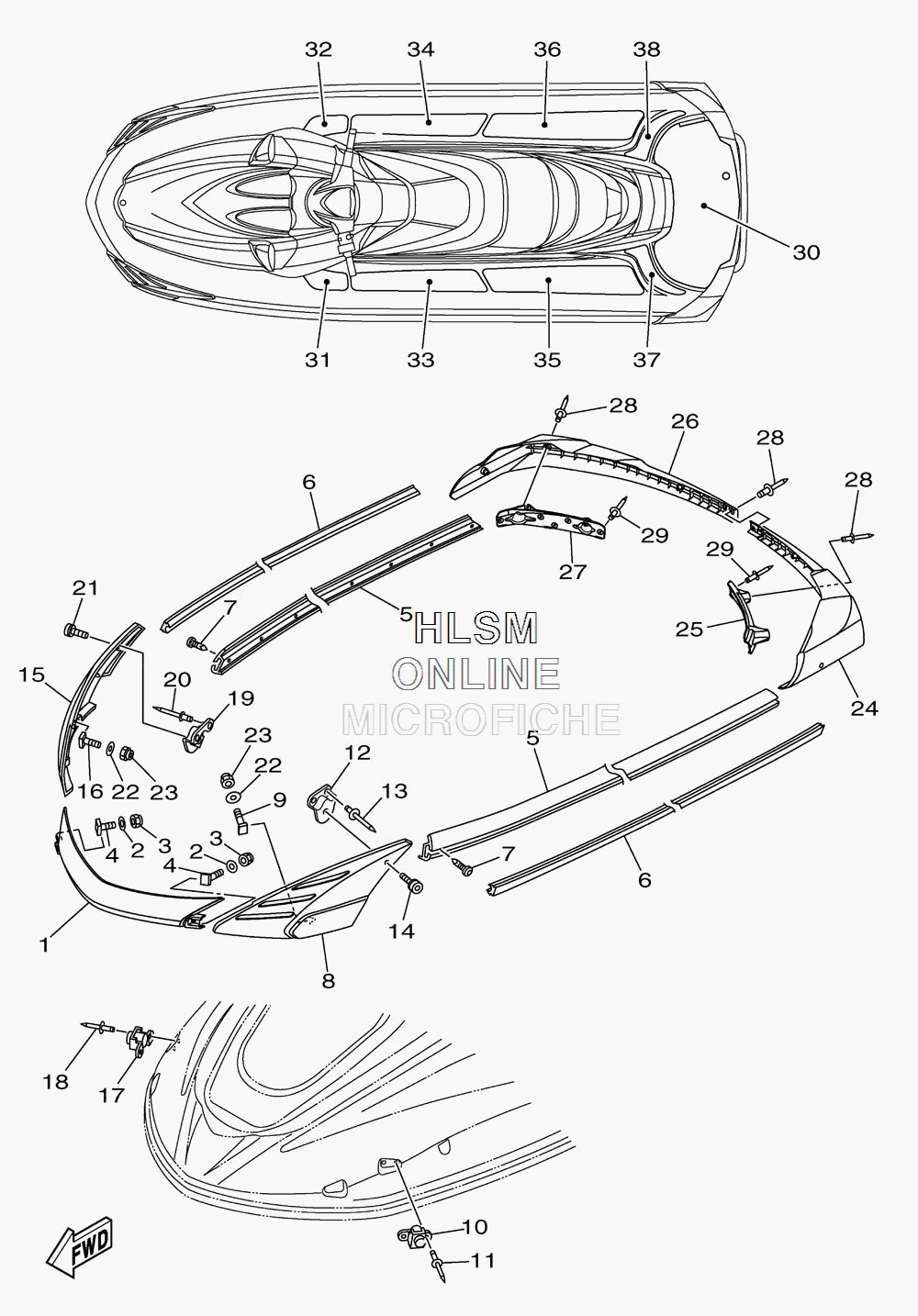

HULL - GUNWALE - MAT для Yamaha FZR - 2010 года выпуска
-
№АртикулНазвание
-
1F2C-U2511-00-00 GUNWALE, BOWGUNWALE, BOW
-
29299R-06200-00 WASHERWASHER
-
39572R-06300-00 NUT, NYLONNUT, NYLON
-
4F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
5F1B-U2512-00-00 GUNWALE, SIDEGUNWALE, SIDE
-
6F1B-U2519-10-00 INNER,GUNWALE (YB)INNER,GUNWALE (YB)
-
790169-059U1-00 SCREW,TAPPINGSCREW,TAPPING
-
8F1W-U252E-10-00 JOINT, GUNWALE LEFT HAND (GRAY)JOINT, GUNWALE LEFT HAND (GRAY)
-
9F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
10F1W-U250B-00-00 GROMMET ASSYGROMMET ASSY
-
1190267-489U6-00 RIVET, BLINDRIVET, BLIND
-
12F1W-U4949-00-00 BRACKETBRACKET
-
1390267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1490111-06114-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
15F1W-U252F-10-00 JOINT, GUNWALE RIGHT HAND (GRAY)JOINT, GUNWALE RIGHT HAND (GRAY)
-
16F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
17F1W-U250B-00-00 GROMMET ASSYGROMMET ASSY
-
1890267-489U6-00 RIVET, BLINDRIVET, BLIND
-
19F1W-U4949-00-00 BRACKETBRACKET
-
2090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
2190111-06114-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
229299R-06200-00 WASHERWASHER
-
239572R-06300-00 NUT, NYLONNUT, NYLON
-
24F1W-U251D-11-00 GUNWALE, STERN 1 (GRAY)GUNWALE, STERN 1 (GRAY)
-
25F1W-U251L-01-00 BRACKET, GUNWALE 1BRACKET, GUNWALE 1
-
26F1W-U251E-11-00 GUNWALE, STERN 2 (GRAY)GUNWALE, STERN 2 (GRAY)
-
27F1W-U251M-01-00 BRACKET, GUNWALE 2BRACKET, GUNWALE 2
-
2890267-48825-00 RIVET, BLINDRIVET, BLIND
-
2990267-489U8-00 RIVET, BLINDRIVET, BLIND
-
30F2C-U3581-00-00 MAT, UPPER (DARK GRAY)MAT, UPPER (DARK GRAY)
-
31F2C-U351H-00-00 MAT, STEP 1 (DARK GRAY)MAT, STEP 1 (DARK GRAY)
-
32F2C-U351J-00-00 MAT, STEP 2 (DARK GRAY)MAT, STEP 2 (DARK GRAY)
-
33F2C-U351K-00-00 MAT, STEP 3 (DARK GRAY)MAT, STEP 3 (DARK GRAY)
-
34F2C-U351M-00-00 MAT, STEP 4 (DARK GRAY)MAT, STEP 4 (DARK GRAY)
-
35F2C-U351N-00-00 MAT, STEP 5 (DARK GRAY)MAT, STEP 5 (DARK GRAY)
-
36F2C-U351P-00-00 MAT, STEP 6 (DARK GRAY)MAT, STEP 6 (DARK GRAY)
-
37F2C-U351R-00-00 MAT, STEP 7 (DARK GRAY)MAT, STEP 7 (DARK GRAY)
-
38F2C-U351S-00-00 MAT, STEP 8 (DARK GRAY)MAT, STEP 8 (DARK GRAY)
