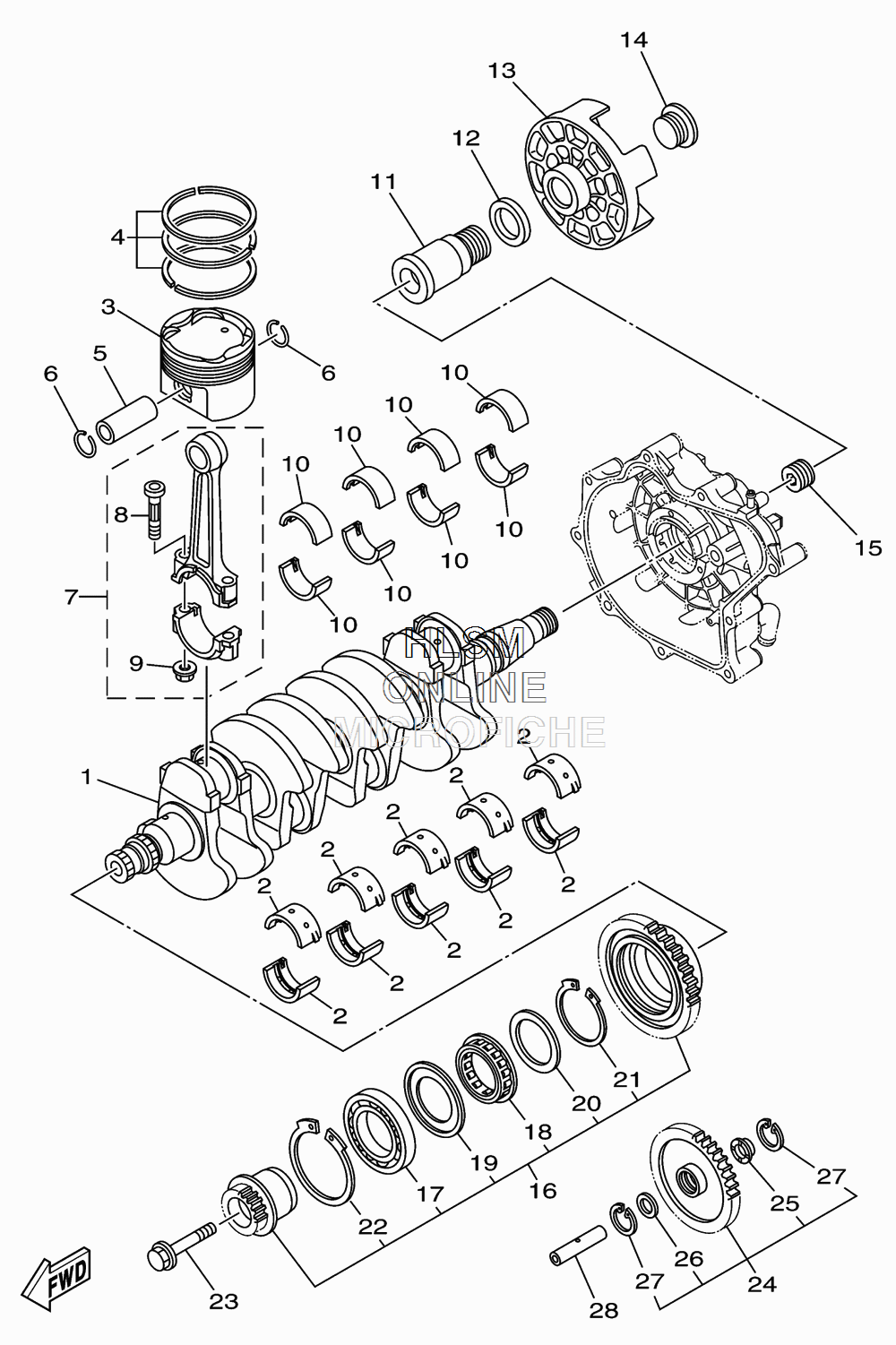

CRANKSHAFT W/ PISTON для Yamaha FZS - 2010 года выпуска
-
№АртикулНазвание
-
16S5-11411-00-00 CRANKSHAFTCRANKSHAFT
-
26S5-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
26S5-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)PLANE BEARING, CRANKSHAFT 1 (BLUE)
-
26S5-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
26S5-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (YELLOW)PLANE BEARING, CRANKSHAFT 1 (YELLOW)
-
26S5-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
36S5-11631-10-B0 PISTON (STD)PISTON (STD)
-
46S5-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
56S5-11633-00-00 PIN, PISTONPIN, PISTON
-
693450-24028-00 CIRCLIPCIRCLIP
-
76S5-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
86S5-11654-00-00 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
990179-09379-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
106S5-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
106S5-11656-20-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
106S5-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
106S5-11656-00-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
116S5-17572-01-00 SHAFT, TRANSFERSHAFT, TRANSFER
-
126S5-12289-00-00 WASHERWASHER
-
136S5-45813-01-94 FLANGE, COUPLINGFLANGE, COUPLING
-
146S5-17525-01-00 HOLDER 2HOLDER 2
-
156S5-11459-01-00 NUT, SPECIALNUT, SPECIAL
-
166S5-17800-00-00 GEAR UNIT ASSY, TACHO. DRIVEGEAR UNIT ASSY, TACHO. DRIVE
-
1793316-00901-00 BEARINGBEARING
-
186S5-15657-00-00 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
196S5-17648-00-00 WASHERWASHER
-
206S5-17658-00-00 WASHERWASHER
-
2193450-63160-00 CIRCLIPCIRCLIP
-
2293450-75161-00 CIRCLIPCIRCLIP
-
236S5-17031-00-00 BOLTBOLT
-
246S5-W1783-10-00 DRIVE GEAR AND COLLAR SETDRIVE GEAR AND COLLAR SET
-
256S5-17529-00-00 WASHER, THRUSTWASHER, THRUST
-
2690201-132G5-00 WASHER, PLATEWASHER, PLATE
-
2799009-24700-00 CIRCLIPCIRCLIP
-
286S5-17553-00-00 SHAFT, MIDDLE DRIVENSHAFT, MIDDLE DRIVEN
