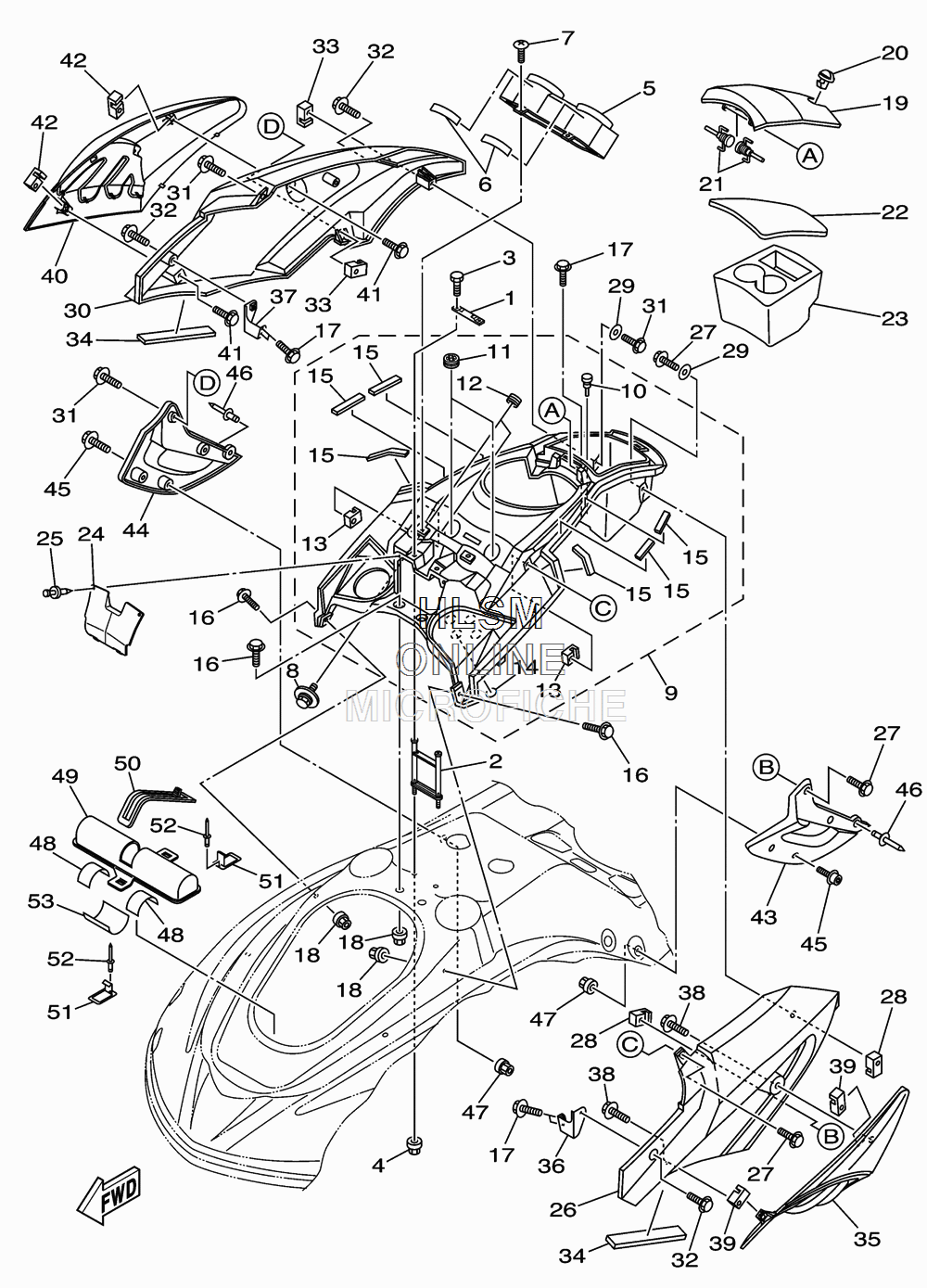

SIDE COVERS для Yamaha FZS - 2010 года выпуска
-
№АртикулНазвание
-
1F1W-U517F-00-00 HOOK,LID LOCKHOOK,LID LOCK
-
2F1W-U555D-02-00 BRKT., COVER CENTER 1BRKT., COVER CENTER 1
-
390101-05800-00 BOLTBOLT
-
490185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5F2C-U82AA-00-00 METER COVER ASSY.METER COVER ASSY.
-
6F0X-U515E-01-00 DAMPER 2DAMPER 2
-
790149-05903-00 SCREWSCREW
-
890119-05803-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
9F2C-U5508-02-00 CENTER COVER ASSY.CENTER COVER ASSY.
-
1090605-502U2-00 PLUGPLUG
-
11F1X-U828E-01-00 DAMPER 1DAMPER 1
-
1290480-19800-00 GROMMETGROMMET
-
13F1X-U517E-01-00 NUTNUT
-
14F2R-U884B-00-00 SEAL 1SEAL 1
-
15F0X-U515E-01-00 DAMPER 2DAMPER 2
-
1690119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790119-06882-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
19F2C-U517H-01-00 LID HATCHLID HATCH
-
20GU2-62875-01-00 LOCKLOCK
-
21F1B-6517R-00-00 PIN, HINGEPIN, HINGE
-
22F2C-U519D-01-00 PACKING CASEPACKING CASE
-
23F2C-U5633-00-00 HOLDER, DRINKHOLDER, DRINK
-
24F1W-U555B-00-00 SEAL, COVER CENTERSEAL, COVER CENTER
-
25F1W-U2698-00-00 RIVETRIVET
-
26F2C-U377B-20-P0 COVER,SIDE 1 FOR BLUECOVER,SIDE 1 FOR BLUE
-
26F2C-U377B-30-P0 COVER,SIDE 1 FOR BLACKCOVER,SIDE 1 FOR BLACK
-
2790119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
28F1X-U517E-01-00 NUTNUT
-
2990201-068G7-00 WASHER, PLATEWASHER, PLATE
-
30F2C-U377C-30-P0 COVER,SIDE 2 FOR BLACKCOVER,SIDE 2 FOR BLACK
-
30F2C-U377C-20-P0 COVER,SIDE 2 FOR BLUECOVER,SIDE 2 FOR BLUE
-
3190119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290119-06882-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
33F1X-U517E-01-00 NUTNUT
-
34F2C-U515D-00-00 DAMPER 1DAMPER 1
-
35F2C-U517W-00-00 ORNAMENT, LEFT HANDORNAMENT, LEFT HAND
-
36F2C-U377M-00-00 BRKT., COVER SIDE 1BRKT., COVER SIDE 1
-
37F2C-U377N-00-00 BRKT, COVER SIDE 2BRKT, COVER SIDE 2
-
3890119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
39F1X-U517E-01-00 NUTNUT
-
40F2C-U517X-00-00 ORNAMENT, RIGHT HANDORNAMENT, RIGHT HAND
-
4190119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
42F1X-U517E-01-00 NUTNUT
-
43F2C-U353B-00-00 PAD, KNEE (LEFT HAND)PAD, KNEE (LEFT HAND)
-
44F2C-U353B-10-00 PAD, KNEE (RIGHT HAND)PAD, KNEE (RIGHT HAND)
-
4590110-06823-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4690267-48807-00 RIVET, BLINDRIVET, BLIND
-
4790185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
48F1K-U759C-00-00 MAT 2MAT 2
-
49F1K-U5983-01-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
50F1K-U828K-00-00 BAND, 1BAND, 1
-
51F1K-U5772-03-00 HOOK AHOOK A
-
5290267-489U1-00 RIVET,BLINDRIVET,BLIND
-
53F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
