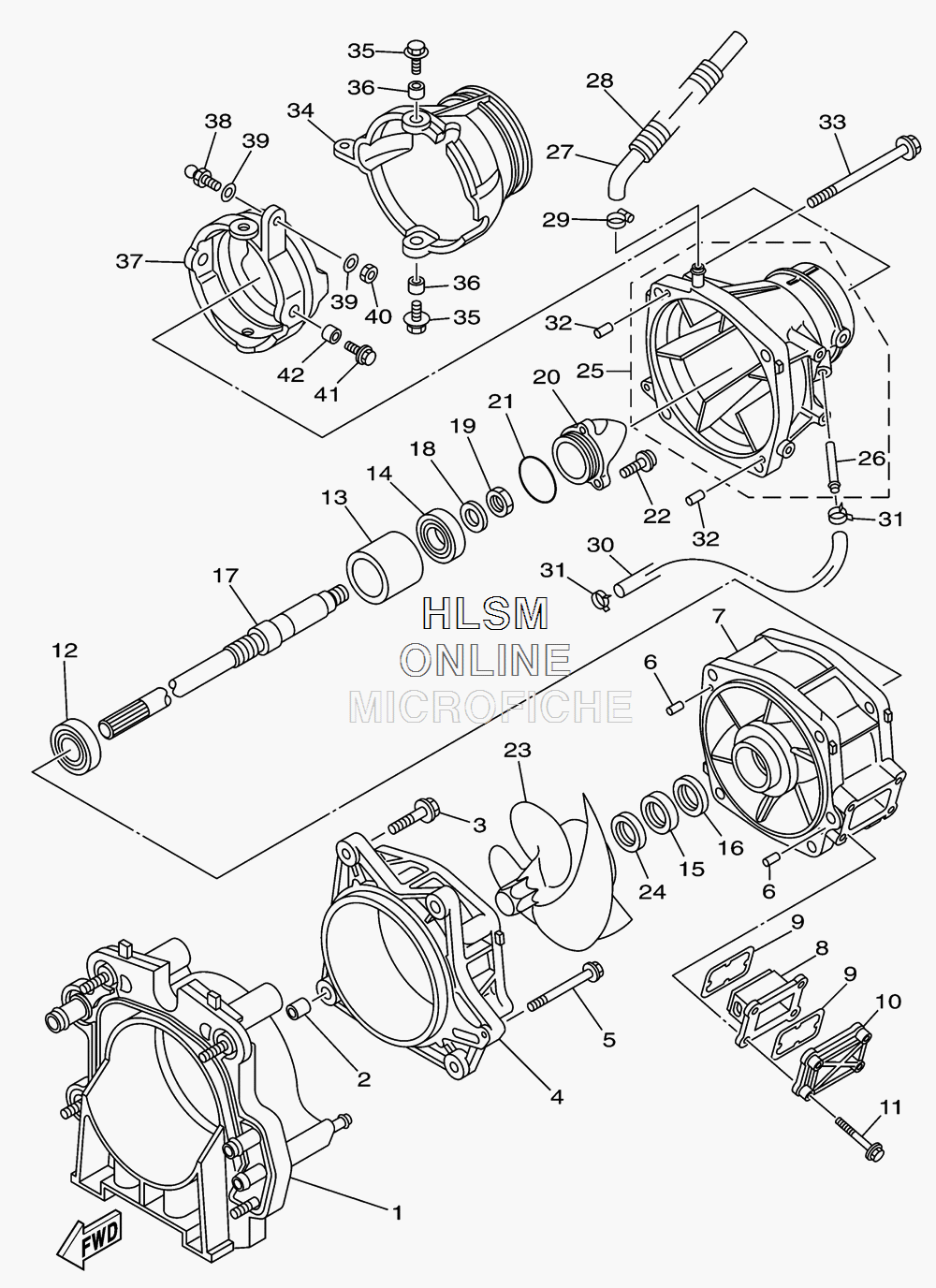

PROPULSION SYSTEM - EXTERNAL для Yamaha FZS - 2010 года выпуска
-
№АртикулНазвание
-
16AN-G5831-00-00 PLATE, TRANSOMPLATE, TRANSOM
-
299590-14016-00 PIN, DOWELPIN, DOWEL
-
390119-10810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
466V-51312-01-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
590119-06893-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
693606-12019-00 PIN, DOWELPIN, DOWEL
-
76S5-51315-00-94 DUCT, IMPELLERDUCT, IMPELLER
-
866V-46882-00-00 FILTERFILTER
-
966V-42414-00-00 O-RINGO-RING
-
1066V-45214-00-94 COVER, WATER INLET 1COVER, WATER INLET 1
-
1190119-06897-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1293306-20654-00 BEARINGBEARING
-
136S5-45538-00-00 SPACER 1SPACER 1
-
1493306-30582-00 BEARINGBEARING
-
1593102-31009-00 OIL SEALOIL SEAL
-
1693102-31004-00 OIL SEALOIL SEAL
-
176AN-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
189290P-20600-00 WASHERWASHER
-
1990170-20802-00 NUTNUT
-
206S5-51326-00-94 CAPCAP
-
216S5-5111K-00-00 O-RING 1O-RING 1
-
2290110-06822-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
236S5-R1321-04-00 IMPELLERIMPELLER
-
246BH-51348-00-00 SPACERSPACER
-
256S5-51318-00-94 NOZZLENOZZLE
-
2663M-51334-00-00 NIPPLE,HOSENIPPLE,HOSE
-
276AN-U72M2-00-00 HOSE 1HOSE 1
-
2890447-19015-00 TUBE (L230)TUBE (L230)
-
2990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
3090445-14804-00 HOSE (L330)HOSE (L330)
-
3190467-14803-00 CLIP, SCISSORCLIP, SCISSOR
-
3293606-12019-00 PIN, DOWELPIN, DOWEL
-
3390119-10806-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
346S5-R1313-01-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
3590119-08851-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3690387-08M06-00 COLLARCOLLAR
-
3760T-51190-00-94 RING,TRIMRING,TRIM
-
38GH3-U146E-00-00 STUD, JOINT BALLSTUD, JOINT BALL
-
3990201-068M4-00 WASHER, PLATEWASHER, PLATE
-
409538R-06700-00 NUTNUT
-
4190119-08851-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4290387-08M06-00 COLLARCOLLAR
