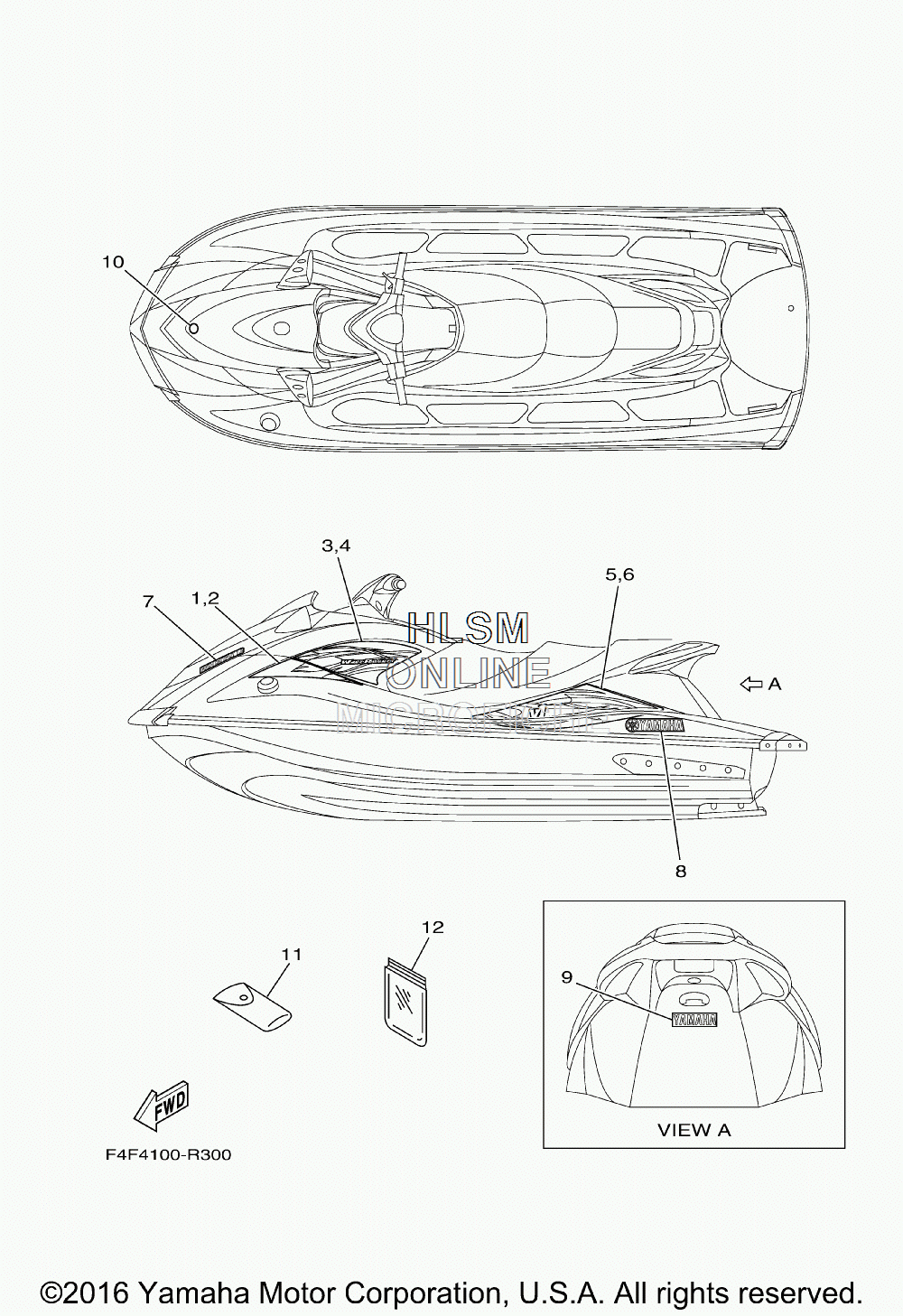

GRAPHICS для Yamaha V1 [VX1050ER] - 2016 года выпуска
-
№АртикулНазвание
-
1F2P-U417D-A0-00 GRAPHIC 3 LH (YELLOW)GRAPHIC 3 LH (YELLOW)
-
1F4F-U417D-20-00 GRAPHIC 3 LH (GREEN)GRAPHIC 3 LH (GREEN)
-
2F4F-U417E-20-00 GRAPHIC 4 RH (GREEN)GRAPHIC 4 RH (GREEN)
-
2F2P-U417E-A0-00 GRAPHIC 4 RH (YELLOW)GRAPHIC 4 RH (YELLOW)
-
3F4F-U417F-20-00 GRAPHIC 5 LH (GREEN)GRAPHIC 5 LH (GREEN)
-
3F2P-U417F-A0-00 GRAPHIC 5 LH (YELLOW)GRAPHIC 5 LH (YELLOW)
-
4F2P-U417G-A0-00 GRAPHIC 6 RH (YELLOW)GRAPHIC 6 RH (YELLOW)
-
4F4F-U417G-20-00 GRAPHIC 6 RH (GREEN)GRAPHIC 6 RH (GREEN)
-
5F4F-U417H-20-00 GRAPHIC 7 LH (GREEN)GRAPHIC 7 LH (GREEN)
-
5F2P-U417H-A0-00 GRAPHIC 7 LH (YELLOW)GRAPHIC 7 LH (YELLOW)
-
6F2P-U417J-A0-00 GRAPHIC 8 RH (YELLOW)GRAPHIC 8 RH (YELLOW)
-
6F4F-U417J-20-00 GRAPHIC 8 RH (GREEN)GRAPHIC 8 RH (GREEN)
-
7F4F-U417M-20-00 GRAPHIC C (YELLOW)GRAPHIC C (YELLOW)
-
7F4F-U417M-30-00 GRAPHIC C (GREEN)GRAPHIC C (GREEN)
-
8F2N-U411C-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
9F1B-U411C-02-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
10F1K-U411H-00-00 EMBLEM, TUNING FORKEMBLEM, TUNING FORK
-
11F1B-65986-13-00 TOOL SETTOOL SET
-
12EU0-65901-02-00 TOOL BAGTOOL BAG
