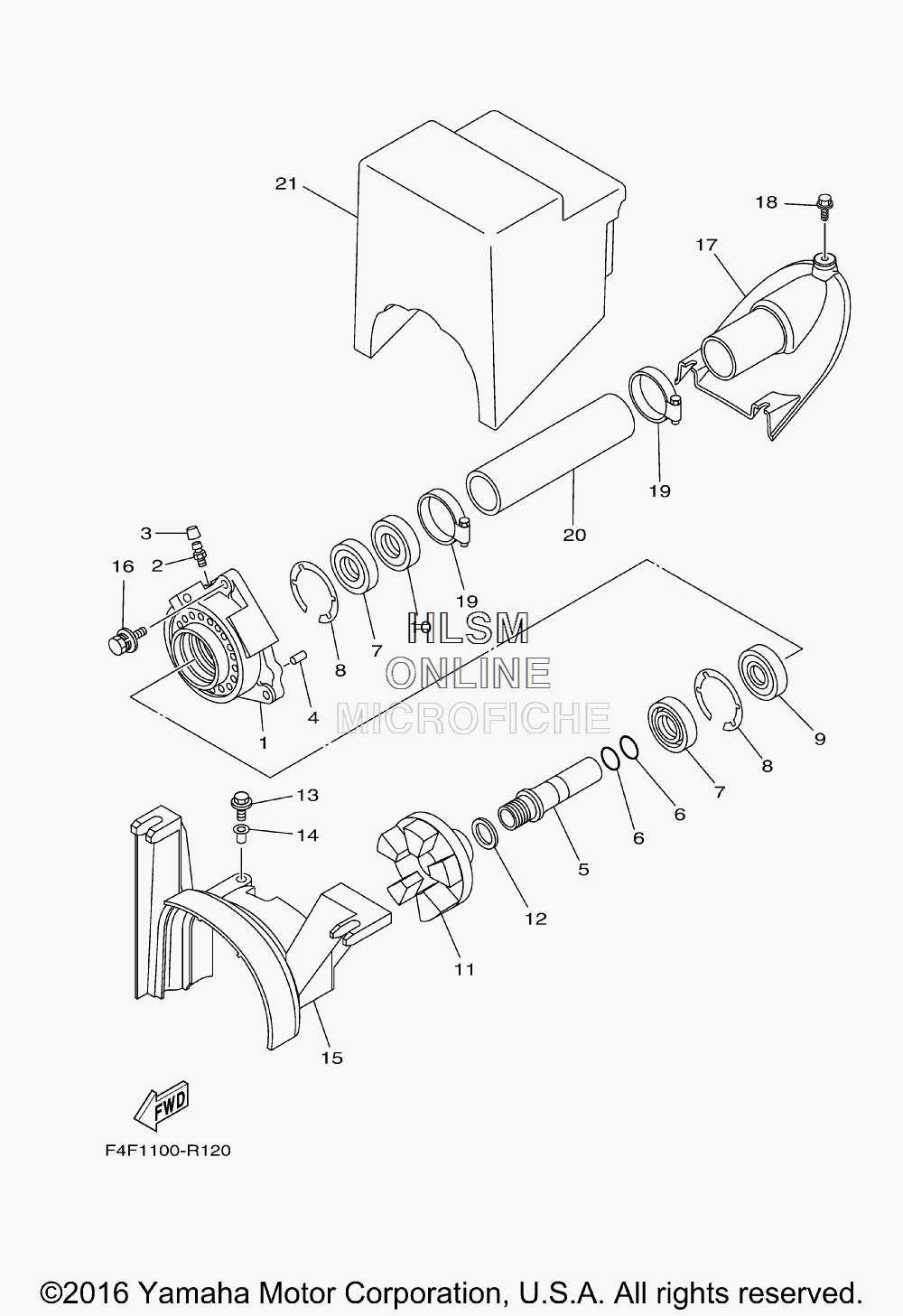

PROPULSION SYSTEM - INTERNAL для Yamaha V1 [VX1050ER] - 2016 года выпуска
-
№АртикулНазвание
-
161X-45332-03-00 HOUSING, BEARINGHOUSING, BEARING
-
293700-06M03-00 NIPPLE, GREASENIPPLE, GREASE
-
3663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
493606-12019-00 PIN, DOWELPIN, DOWEL
-
560E-51323-00-00 SHAFT, COUPLERSHAFT, COUPLER
-
693210-19001-00 O-RINGO-RING
-
793101-25M55-00 OIL SEALOIL SEAL
-
893430-47M04-00 CIRCLIPCIRCLIP
-
993306-205A3-00 BEARINGBEARING
-
1093102-25009-00 OIL SEALOIL SEAL
-
116EY-45593-00-00 FLANGE, COUPLING 1FLANGE, COUPLING 1
-
1290201-27800-00 WASHER, PLATEWASHER, PLATE
-
1390119-06891-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490387-06289-00 COLLARCOLLAR
-
156EY-R1381-00-00 COVERCOVER
-
16F4G-U1369-00-00 BOLTBOLT
-
17F2N-U883E-00-00 JOINT, PIPEJOINT, PIPE
-
1890109-06832-00 BOLTBOLT
-
1990601-155U4-00 BAND, HOSE 55BAND, HOSE 55
-
20F2N-U883B-00-00 PIPE, 1PIPE, 1
-
21F1K-U892D-00-00 FLOTATION, STERNFLOTATION, STERN
