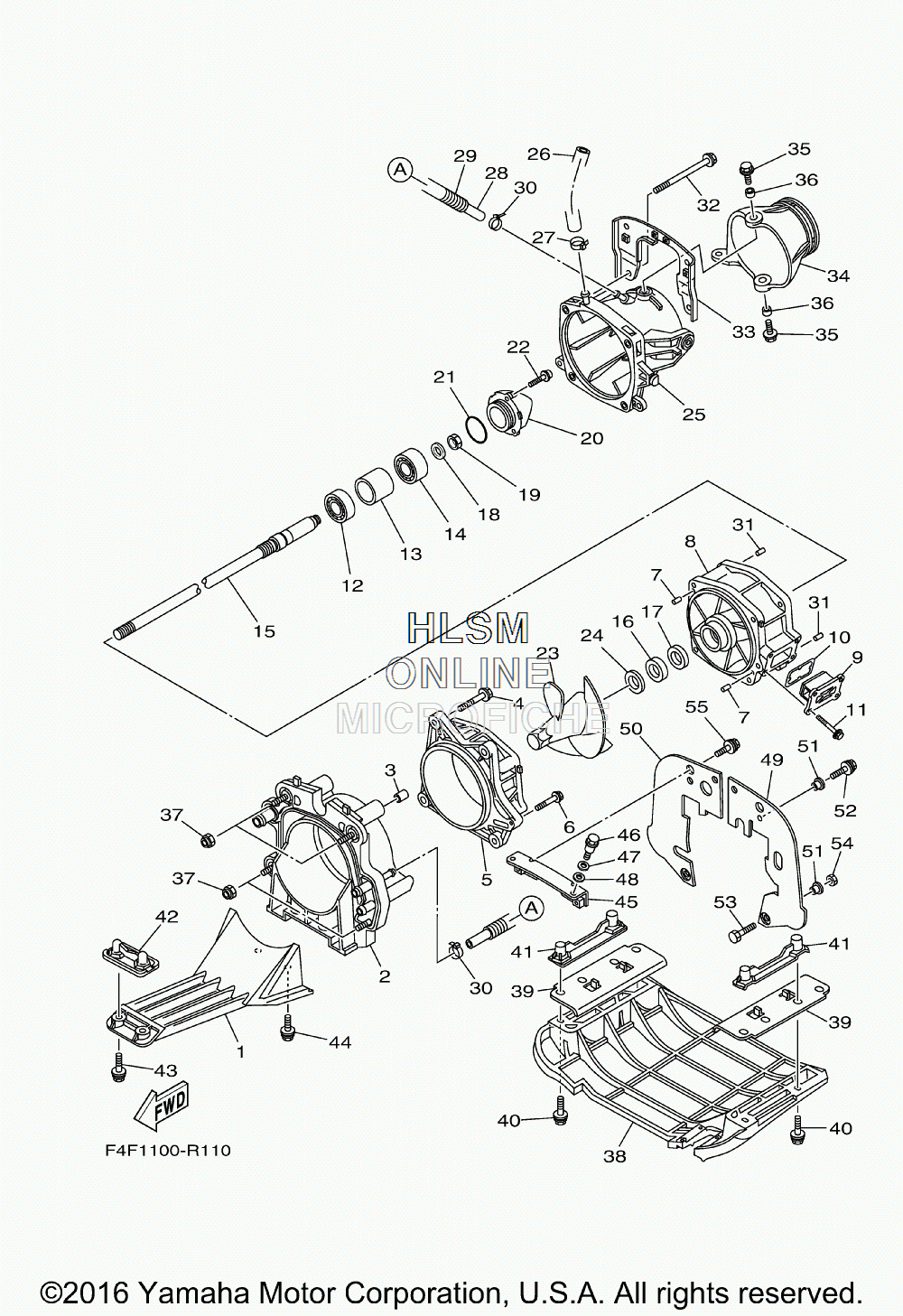

PROPULSION SYSTEM - EXTERNAL для Yamaha V1 [VX1050ER] - 2016 года выпуска
-
№АртикулНазвание
-
16D3-R1333-01-00 SCREEN, INTAKESCREEN, INTAKE
-
26AN-G5831-00-00 PLATE, TRANSOMPLATE, TRANSOM
-
399590-14016-00 PIN, DOWELPIN, DOWEL
-
490119-10810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
566V-51312-01-00 HOUSING, IMPELLERHOUSING, IMPELLER
-
690119-06893-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
793606-12019-00 PIN, DOWELPIN, DOWEL
-
86B6-51315-01-00 DUCT, IMPELLERDUCT, IMPELLER
-
96EX-G6882-00-00 FILTERFILTER
-
1066V-42414-00-00 O-RINGO-RING
-
1190119-06889-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1293306-205U0-00 BEARINGBEARING
-
1365V-45538-00-00 SPACER 1SPACER 1
-
1493306-304U1-00 BEARINGBEARING
-
1568Y-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
1693101-28M66-00 OIL SEALOIL SEAL
-
1793101-28002-00 OIL SEALOIL SEAL
-
189299R-16600-00 WASHERWASHER
-
199531P-16700-00 NUTNUT
-
206B6-51326-10-00 CAPCAP
-
2193210-44003-00 O-RINGO-RING
-
2290110-06822-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
236EY-R1321-01-00 IMPELLERIMPELLER
-
2466V-R1348-10-00 SPACERSPACER
-
256BU-R1318-01-00 NOZZLENOZZLE
-
2690445-16006-00 HOSE (L260)HOSE (L260)
-
2790601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
2890445-14807-00 HOSE (L355)HOSE (L355)
-
2990446-20MF5-00 HOSE (L320)HOSE (L320)
-
3090465-11829-00 CLAMPCLAMP
-
3193606-12019-00 PIN, DOWELPIN, DOWEL
-
3290119-10806-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
336D3-R1341-00-00 BRACKET 1BRACKET 1
-
346BU-R1313-00-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
3590119-08840-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3690387-08M06-00 COLLARCOLLAR
-
379572R-10300-00 NUT, NYLONNUT, NYLON
-
38F2N-U273B-10-00 PLATE 2PLATE 2
-
39F2M-U143G-00-00 SPACERSPACER
-
4090119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
41F1G-U8572-02-00 BRACKET 2BRACKET 2
-
42F1K-U8577-01-00 BRACKET, 3BRACKET, 3
-
4390119-06895-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4490119-10808-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
45F1K-U7557-01-00 BRACKETBRACKET
-
4690109-08041-00 BOLTBOLT
-
4792990-12200-00 WASHER, PLAINWASHER, PLAIN
-
4890430-12002-00 GASKETGASKET
-
49F1K-U757E-01-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
50F1K-U757F-01-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
5190387-06080-00 COLLARCOLLAR
-
5290119-06882-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5390101-069U0-00 BOLTBOLT
-
549572R-06300-00 NUT, NYLONNUT, NYLON
-
5590119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
