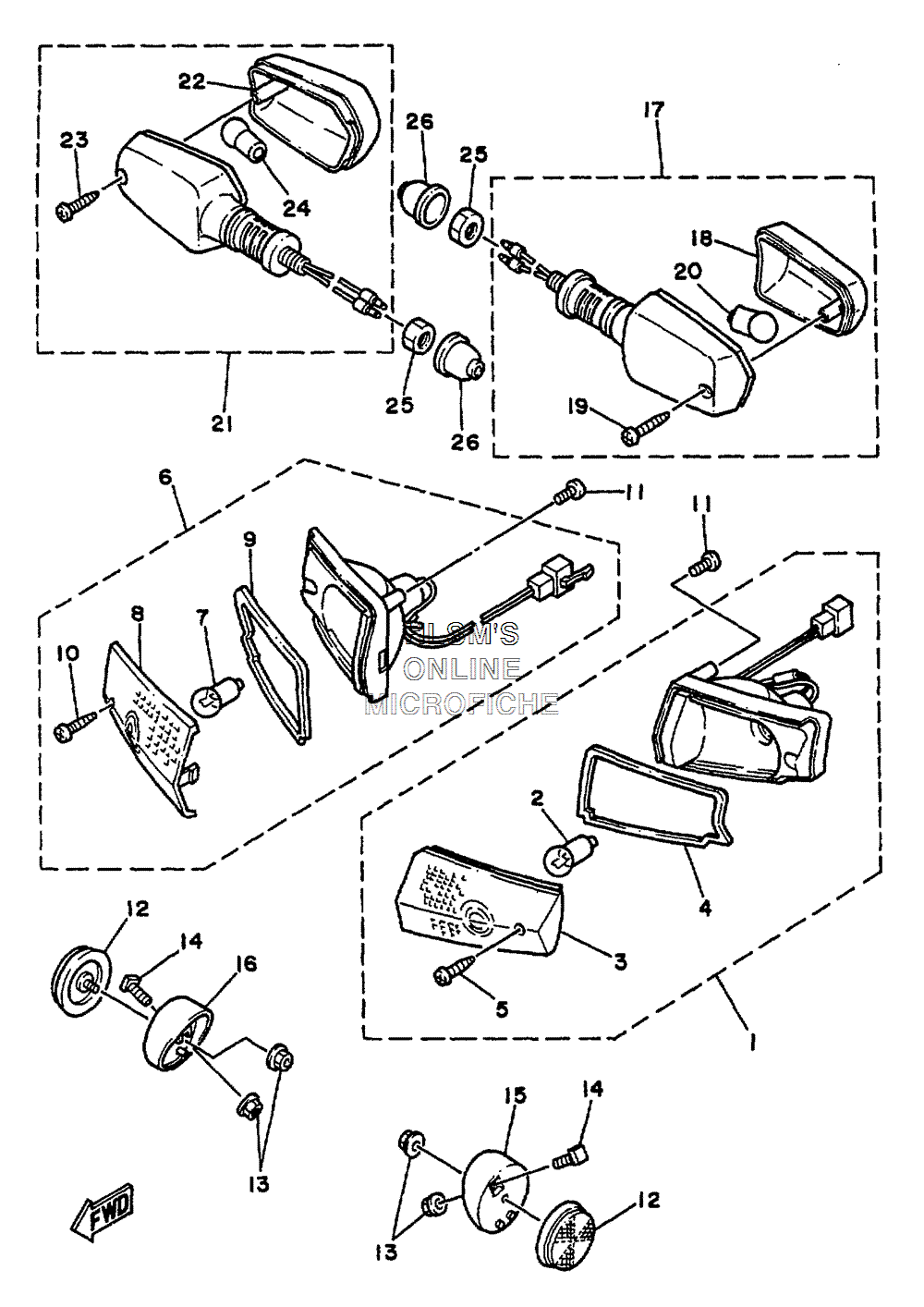

FLASHER LIGHT для Yamaha RAZZ - 2000 года выпуска
-
№АртикулНазвание
-
12EK-83310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
23NS-83331-00-00 ...BULB, TS 12V10W...BULB, TS 12V10W
-
32EK-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
42EK-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
597707-40116-00 ...SCREW, TAPPING...SCREW, TAPPING
-
62EK-83320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
73NS-83331-00-00 ...BULB, TS 12V10W...BULB, TS 12V10W
-
82EK-83322-00-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
92EK-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
1097707-40116-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1197707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
122EK-85111-00-00 REFLECTOR, FRONT 1REFLECTOR, FRONT 1
-
1395707-05500-00 NUT, FLANGENUT, FLANGE
-
1490101-05579-00 BOLTBOLT
-
152EK-85127-00-00 BASE, REFLECTOR (L. H.)BASE, REFLECTOR (L. H.)
-
162EK-851137-00-00 BASE, REFLECTOR (R.H)BASE, REFLECTOR (R.H)
-
172EK-83330-00-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
182EK-853332-00-00 ...LENS, FLASHER...LENS, FLASHER
-
1997707-40620-00 ...SCREW, TAPPING...SCREW, TAPPING
-
203NS-83331-00-00 ...BULB, TS 12V10W...BULB, TS 12V10W
-
212EK-83340-00-00 FLASHER LIGHT ASSY 2FLASHER LIGHT ASSY 2
-
222EK-8334200-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
2397707-40620-00 ...SCREW, TAPPING...SCREW, TAPPING
-
243NS-83331-00-00 ...BULB, TS 12V10W...BULB, TS 12V10W
-
2595317-12600-00 NUTNUT
-
2610V-83365-00-00 CAPCAP
