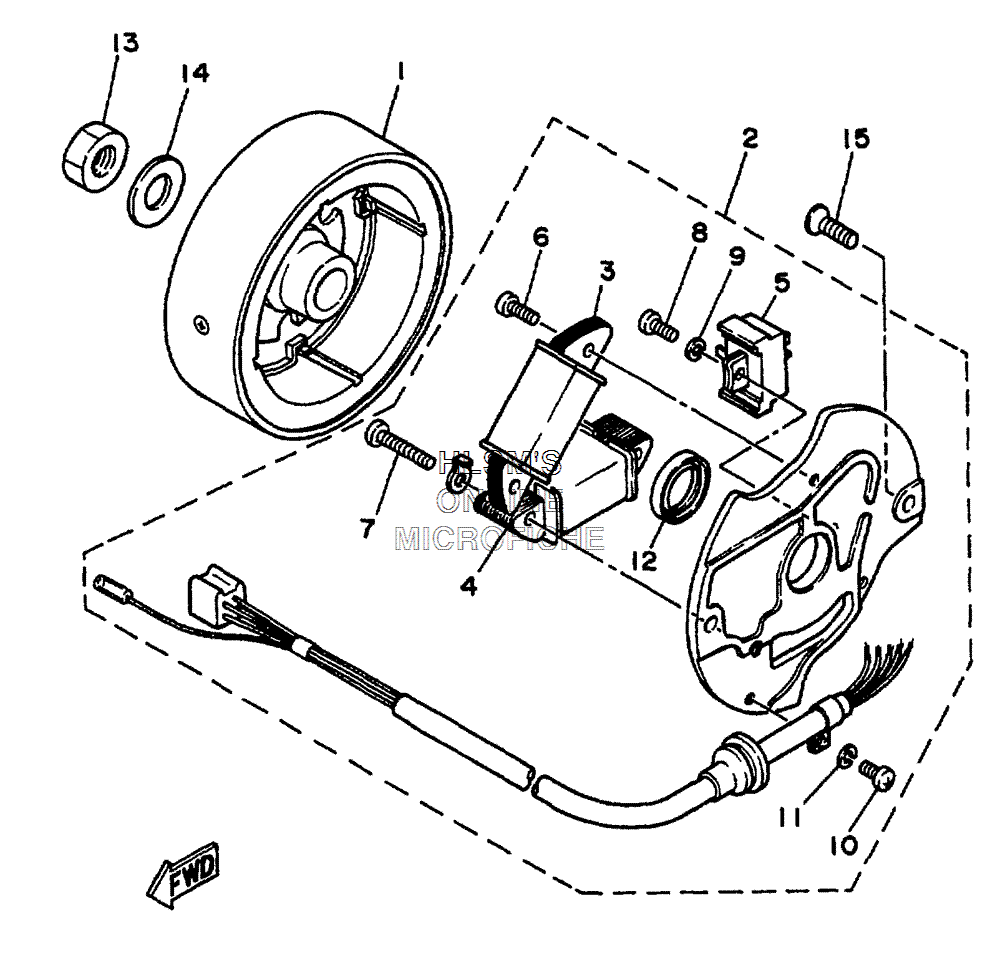

GENERATOR ASSY. для Yamaha RAZZ - 2000 года выпуска
-
№АртикулНазвание
-
12EK-85550-M0-00 ROTOR ASSYROTOR ASSY
-
23KL-85560-00-00 BASE ASSYBASE ASSY
-
337A-85520-M1-00 ...COIL, CHARGE...COIL, CHARGE
-
452W-81313-M0-00 ...COIL, LIGHTING 1...COIL, LIGHTING 1
-
51HH-85580-M0-00 ...COIL, PULSER...COIL, PULSER
-
698517-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
798517-04025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
898507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
992907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1098507-04006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1192907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1293104-19097-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
1395317-12600-00 NUTNUT
-
1492907-12600-00 WASHER, PLATEWASHER, PLATE
-
1598707-06016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
