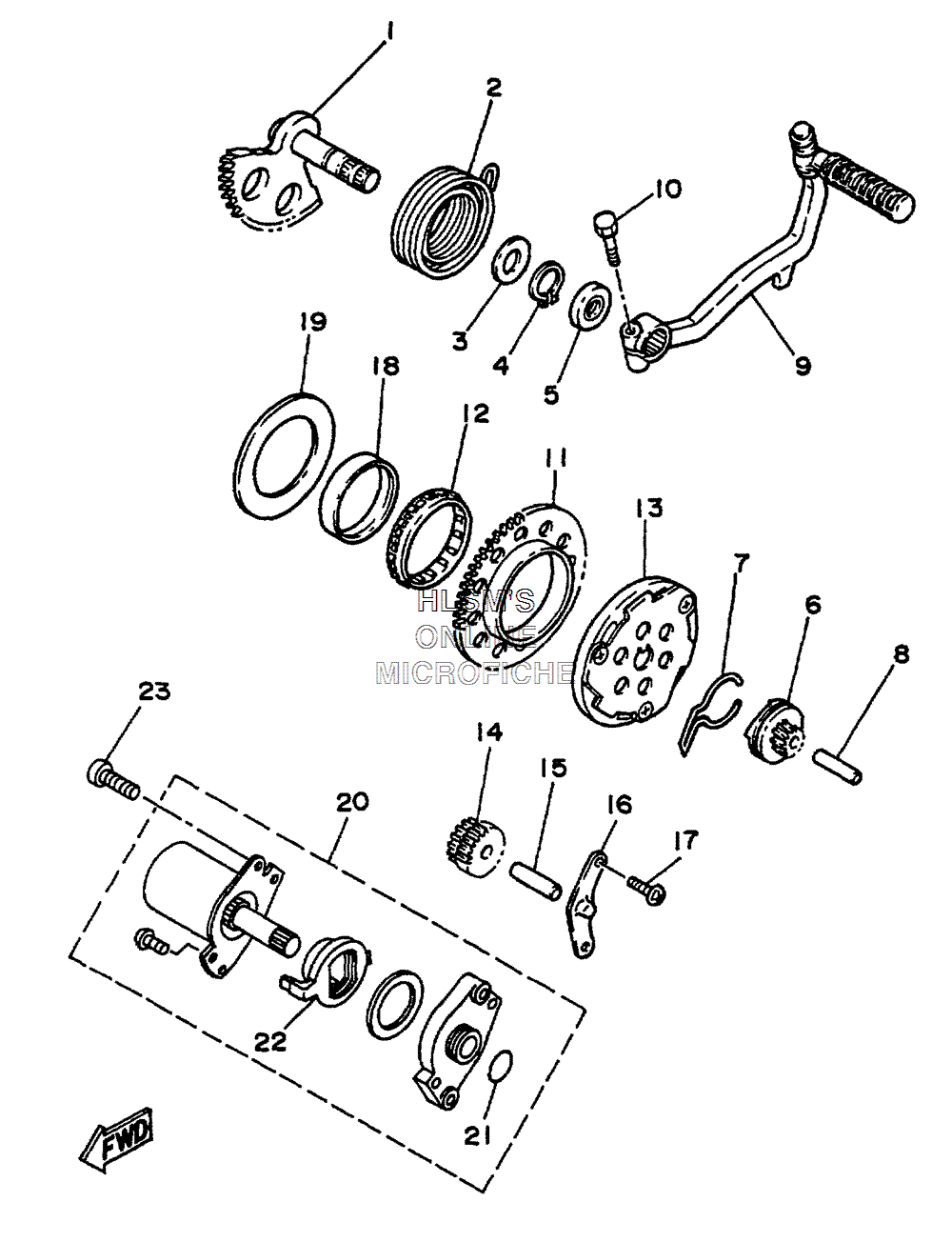

STARTER CLUTCH ASSY. для Yamaha RAZZ - 2000 года выпуска
-
№АртикулНазвание
-
11YU-15601-00-00 KICK SHAFT ASSYKICK SHAFT ASSY
-
290508-32609-00 SPRING, TORSIONSPRING, TORSION
-
390201-15701-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
499009-15400-00 CIRCLIPCIRCLIP
-
593102-15212-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
61NT-156301-01-00 KICK PINION ASSYKICK PINION ASSY
-
72E9-15673-00-00 CLIPCLIP
-
833A-15659-00-00 SHAFTSHAFT
-
91YU-15620-00-00 KICK CRANK ASSYKICK CRANK ASSY
-
1090153-06008-00 SCREW, HEXAGONSCREW, HEXAGON
-
113AA-15513-00-00 GEAR 1GEAR 1
-
1293310-257R1-00 BEARINGBEARING
-
131YU-15570-00-00 STARTER CLUTCH ASSYSTARTER CLUTCH ASSY
-
141YU-15512-00-00 GEAR, IDLER 1 (48T-15T)GEAR, IDLER 1 (48T-15T)
-
1550M-13342-00-00 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
161YU-15532-00-00 PLATE, IDLE GEARPLATE, IDLE GEAR
-
1798517-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1853L-15528-00-00 BOSS, GEARBOSS, GEAR
-
1990201-573J7-00 WASHER, PLATEWASHER, PLATE
-
201YU-81800-M1-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
2193210-19501-00 ...O-RING...O-RING
-
211YU-81847-50-00 ...O-RING...O-RING
-
2252W-81801-50-00 ...BRUSH SET...BRUSH SET
-
221YU-81801-M0-00 ...BRUSH SET...BRUSH SET
-
2391317-06020-00 BOLTBOLT
