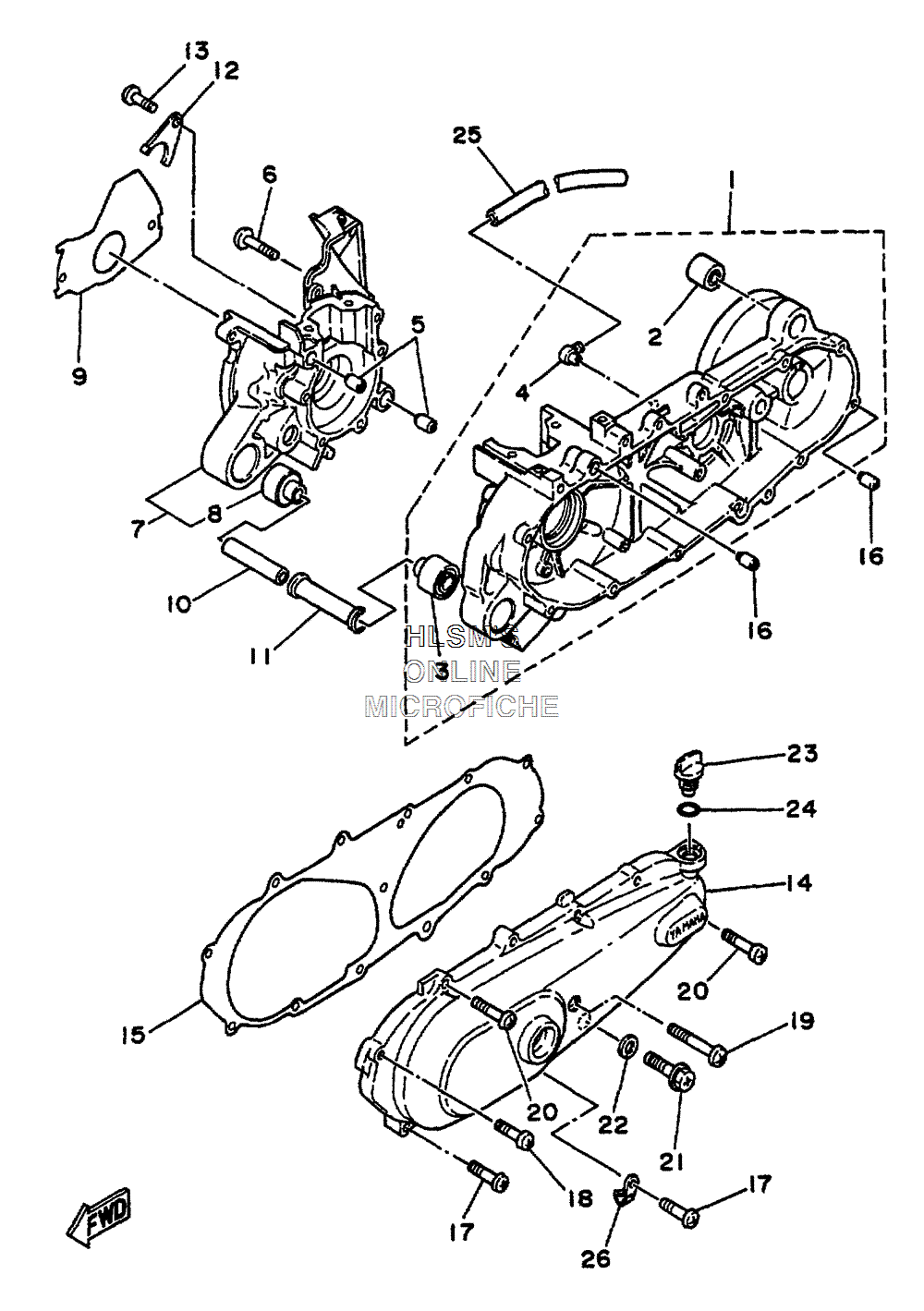

CRANKCASE ASSY. для Yamaha RIVA RAZZ - 2001 года выпуска
-
№АртикулНазвание
-
12EJ-15110-00-00 CRANKCASE ASSY 1CRANKCASE ASSY 1
-
2164-22216-00-00 ...BUSH, REAR SHOCK ABS...BUSH, REAR SHOCK ABS
-
31YU-15316-00-00 ...DAMPER, ENGINE MOUNT 1...DAMPER, ENGINE MOUNT 1
-
458315-37100-00 ...BREATHER...BREATHER
-
599510-12016-00 PIN, DOWELPIN, DOWEL
-
698507-06035-00 SCREW, PAN HEADSCREW, PAN HEAD
-
71YU-15120-00-00 CRANKCASE ASSY 2CRANKCASE ASSY 2
-
81YU-15316-00-00 ...DAMPER, ENGINE MOUNT...DAMPER, ENGINE MOUNT
-
93HK-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
1090560-10288-00 SPACERSPACER
-
111YU-15376-00-00 HOLDER, GUIDEHOLDER, GUIDE
-
121YU-15128-00-00 HOLDERHOLDER
-
1398517-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
141YU-15411-00-00 COVER, CRANKCASE LCOVER, CRANKCASE L
-
153HK-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
1699530-10014-00 PIN, DOWELPIN, DOWEL
-
1798517-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1898517-06025-00 SCREW, PAN HEAD (OPT)SCREW, PAN HEAD (OPT)
-
1898580-06025-00 SCREW, PAN HEAD (OPT)SCREW, PAN HEAD (OPT)
-
1998507-06050-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2098507-06035-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2198517-08035-00 BOLT, FLANGEBOLT, FLANGE
-
2290201-08087-00 WASHER, PLATEWASHER, PLATE
-
234J2-15363-00-00 PLUG, OILPLUG, OIL
-
2493210-14104-00 O-RINGO-RING
-
2590446-07200-00 HOSEHOSE
-
2690465-10296-00 CLAMPCLAMP
