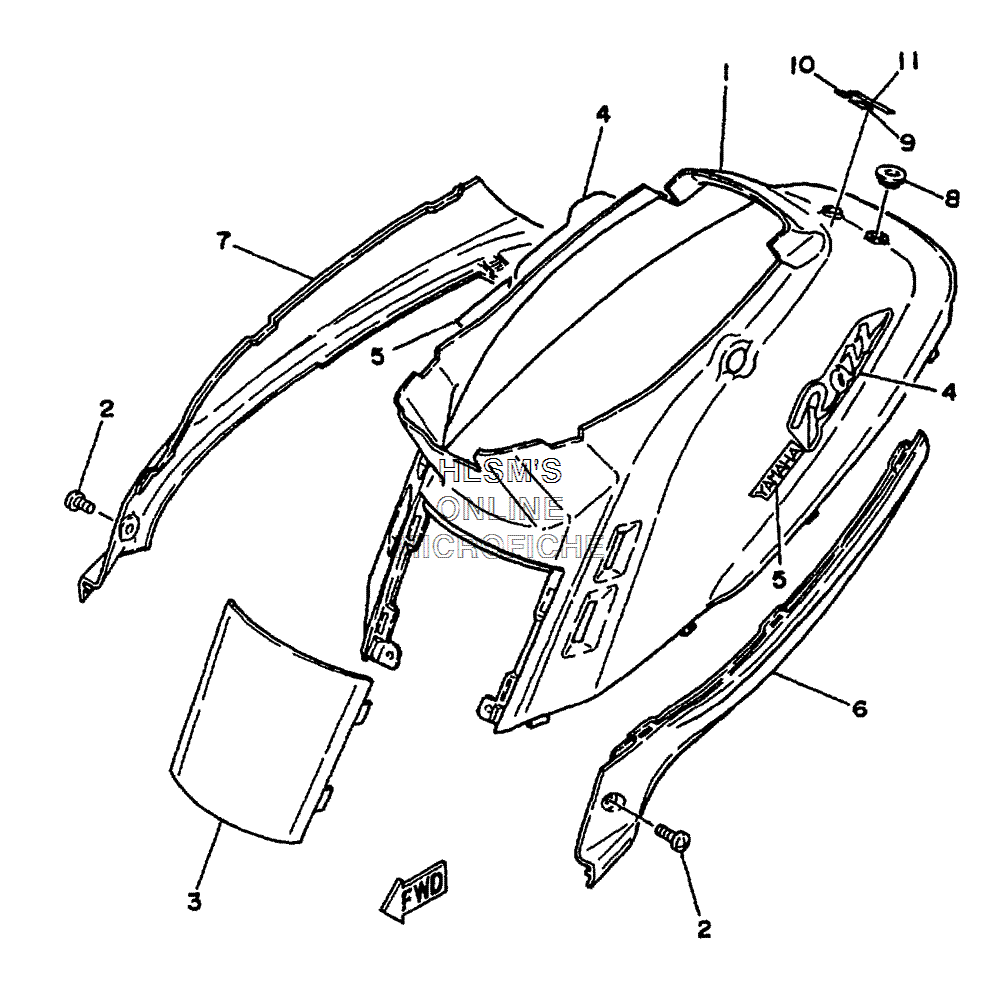

SIDE COVER для Yamaha RIVA RAZZ - 2001 года выпуска
-
№АртикулНазвание
-
11UY-21711-00-P3 COVER, SIDE 1 (VDVC2)COVER, SIDE 1 (VDVC2)
-
11UY-21711-00-P5 COVER, SIDE 1 (DRC2)COVER, SIDE 1 (DRC2)
-
290149-06184-00 SCREWSCREW
-
31UY-21721-00-P3 COVER, SIDE 2 (VDVC2)COVER, SIDE 2 (VDVC2)
-
31UY-21721-00-P5 COVER, SIDE 2 (DRC2)COVER, SIDE 2 (DRC2)
-
43KL-21781-21-00 EMBLEM 1 (DRC2)EMBLEM 1 (DRC2)
-
43KL-21781-31-00 EMBLEM 1 (VDVC2)EMBLEM 1 (VDVC2)
-
599231-00080-00 EMBLEM, YAMAHA (DRC2)EMBLEM, YAMAHA (DRC2)
-
599236-00080-00 EMBLEM, YAMAHA (VDVC2)EMBLEM, YAMAHA (VDVC2)
-
61UY-2171L-40-00 MOLE, SIDE COVER 1 (RADICAL GRAY)MOLE, SIDE COVER 1 (RADICAL GRAY)
-
71UY-2171M-40-00 MOLE, SIDE COVER 2 (RADICAL GRAY)MOLE, SIDE COVER 2 (RADICAL GRAY)
-
814T-21719-01-00 GROMMETGROMMET
-
93MX-24875-00-00 LABEL 1LABEL 1
-
103TB-24877-00-00 LABEL, CAUTIONLABEL, CAUTION
-
113JJ-28446-00-00 LABEL, CAUTIONLABEL, CAUTION
