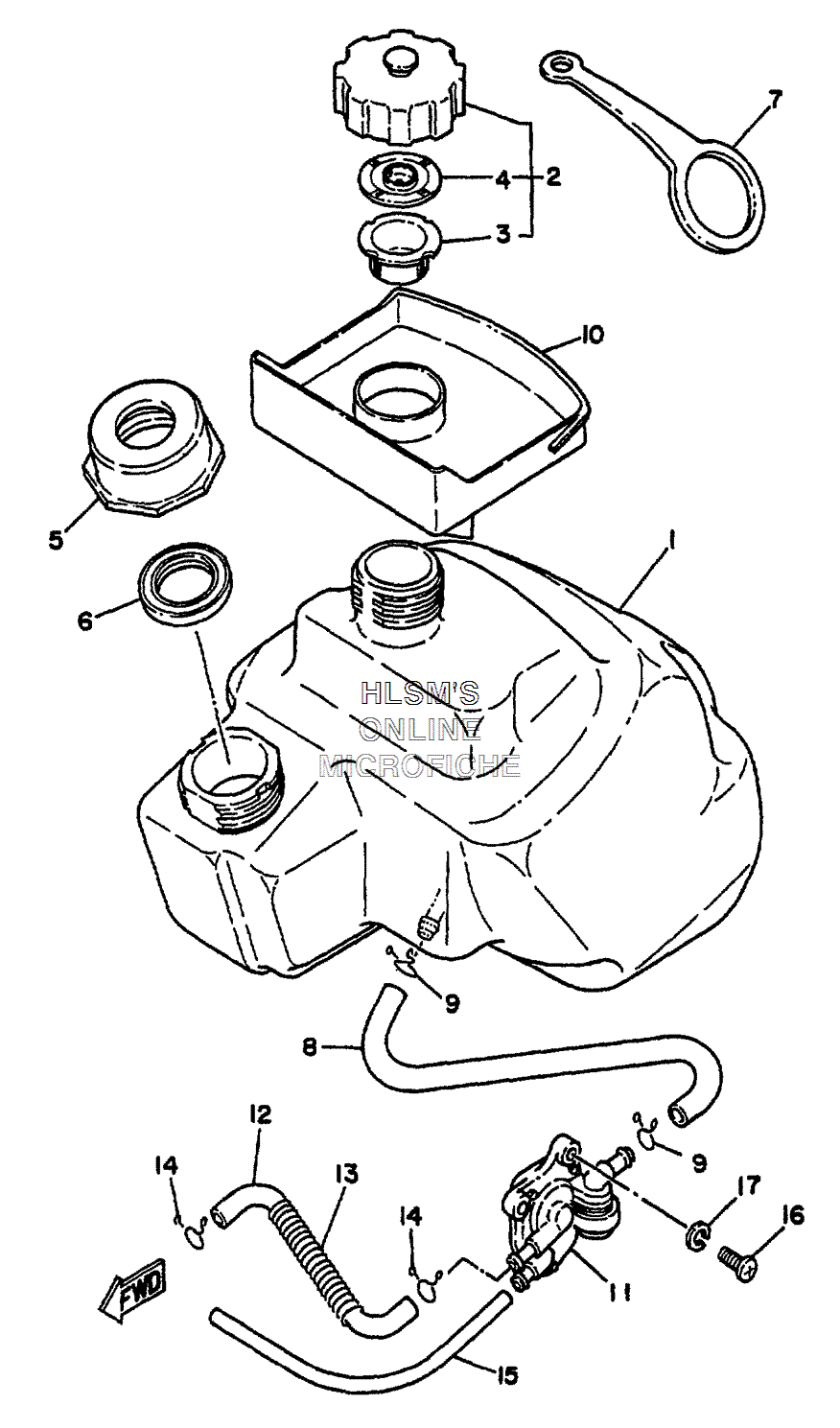

FUEL TANK ASSY. для Yamaha RIVA RAZZ - 2001 года выпуска
-
№АртикулНазвание
-
11YU-24110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
21UV-24610-00-00 CAP ASSY.CAP ASSY.
-
31L4-24615-00-00 ...GASKET, PLATE 1...GASKET, PLATE 1
-
41L4-24616-00-00 ...GASKET, PLATE 2...GASKET, PLATE 2
-
553L-24261-00-00 HOUSING, FUEL METERHOUSING, FUEL METER
-
653L-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
71UV-24629-00-00 RINGRING
-
81YU-24312-00-00 PIPE 2PIPE 2
-
990467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
102EK-24198-00-00 SEAT, RUBBERSEAT, RUBBER
-
112EK-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
121YU-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
1390501-061E8-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1490467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
1590445-07176-00 HOSEHOSE
-
1698517-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1792907-06100-00 WASHER, SPRINGWASHER, SPRING
