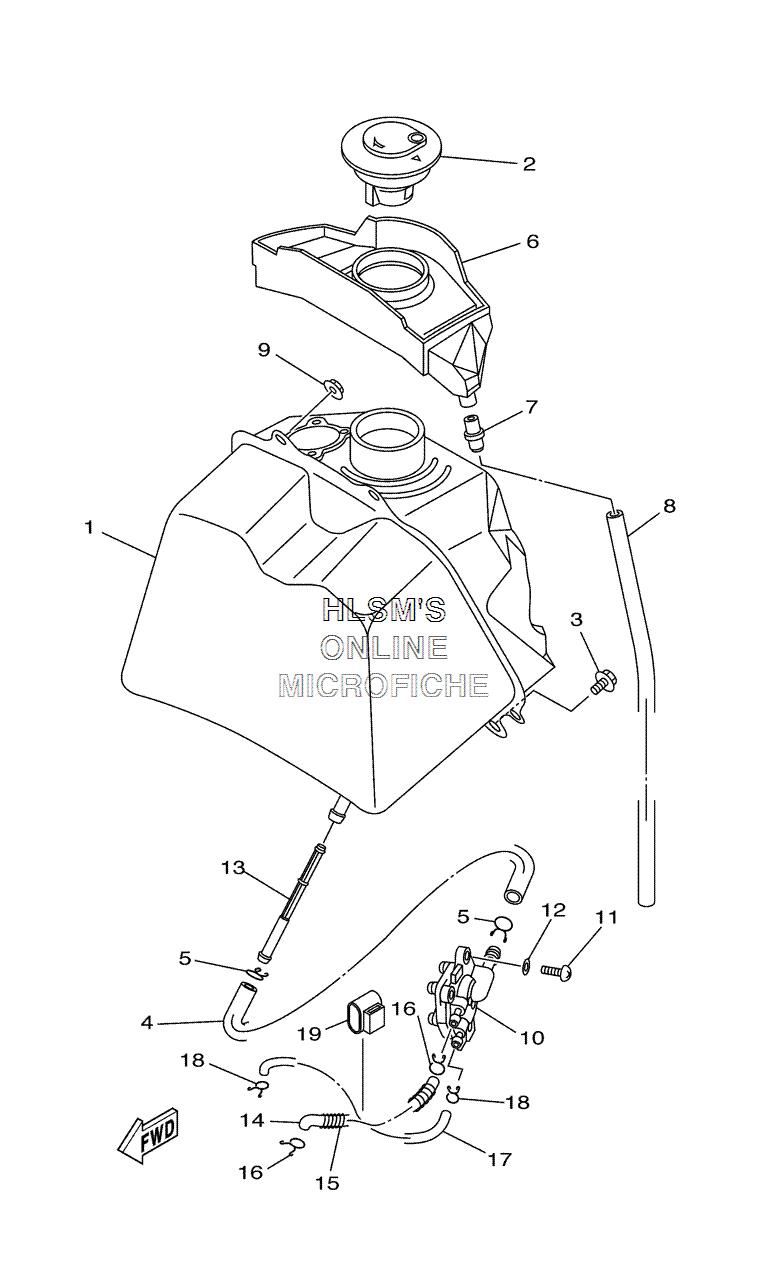

FUEL TANK ASSY. для Yamaha VINO - 2002 года выпуска
-
№АртикулНазвание
-
14JP-24110-12-00 FUEL TANK COMP.FUEL TANK COMP.
-
25LY-24602-00-00 CAP ASSYCAP ASSY
-
395827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
44JP-24312-10-00 PIPE 2PIPE 2
-
590467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
65AU-2414A-01-00 COVER, FILLERCOVER, FILLER
-
74JP-21753-00-00 BOSS, CONNECTORBOSS, CONNECTOR
-
891A20-07048-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
995707-06500-00 NUT, FLANGENUT, FLANGE
-
105BM-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
1198507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1292907-06600-00 WASHER, PLATEWASHER, PLATE
-
135BM-24514-00-00 NET, FILTER 1NET, FILTER 1
-
144JP-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
1590501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1690467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
1790445-08003-00 HOSE (L265)HOSE (L265)
-
1890467-08075-00 CLIP, SCISSORCLIP, SCISSOR
-
195BM-2419A-00-00 HOLDERHOLDER
