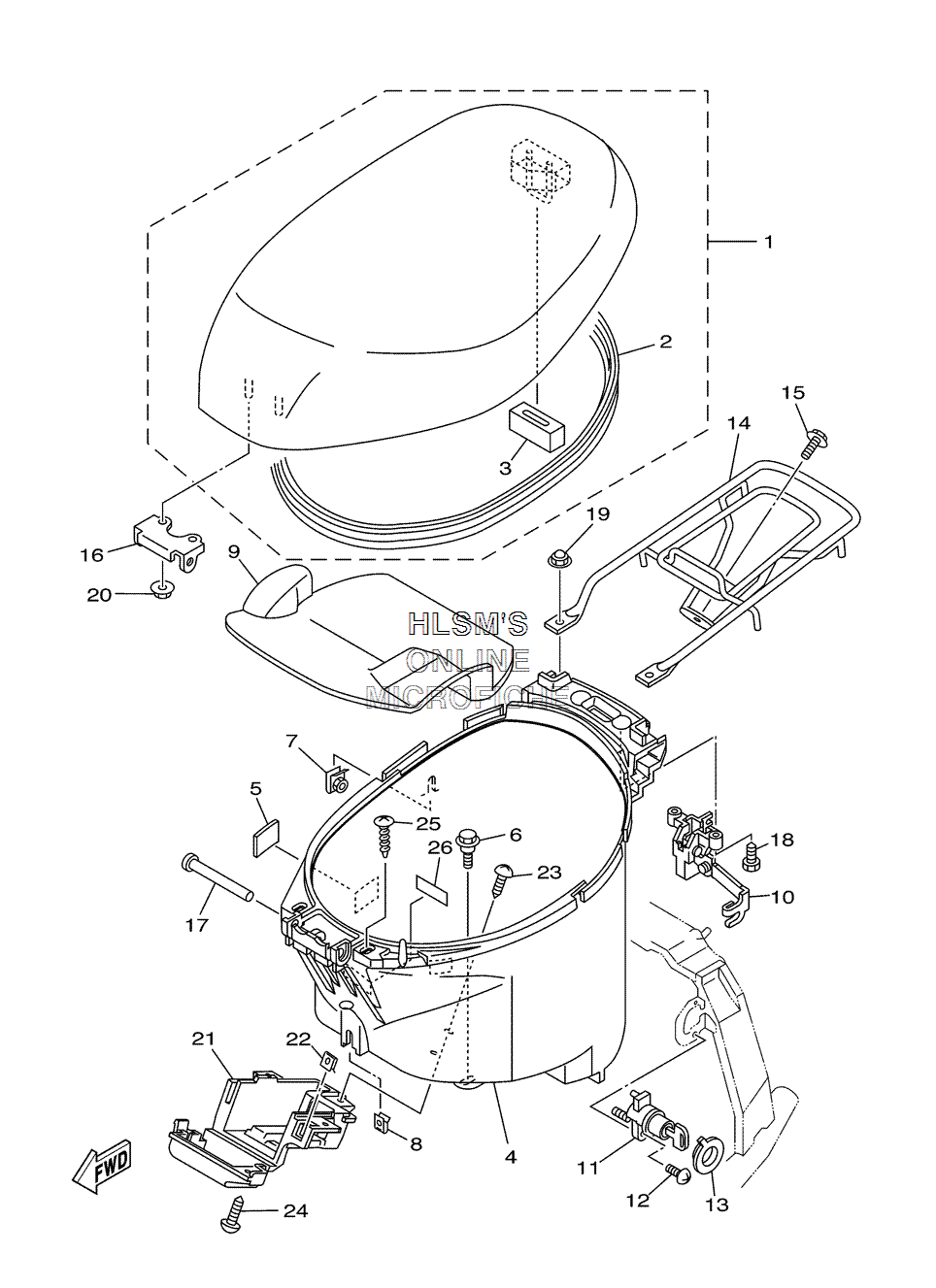

SEAT ASSY. для Yamaha VINO - 2002 года выпуска
-
№АртикулНазвание
-
15AU-24710-10-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
24JP-2475M-00-00 ...SEAL...SEAL
-
35AU-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
44JP-2473R-02-00 BOX 1BOX 1
-
54U5-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
690109-063F1-00 BOLTBOLT
-
725G-21535-00-00 NUT 1NUT 1
-
83VP-21535-00-00 NUT 1NUT 1
-
94JP-24747-00-00 DAMPER, SEATDAMPER, SEAT
-
105AU-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
115AU-W2470-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1298507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
135AU-2482H-01-00 CAPCAP
-
145LY-24842-10-00 CARRIER, REARCARRIER, REAR
-
1595807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
164JP-24726-11-00 HINGE, SEATHINGE, SEAT
-
1790241-10017-00 PINPIN
-
1897007-06012-00 BOLTBOLT
-
1990176-06055-00 NUT, CROWNNUT, CROWN
-
2095707-06500-00 NUT, FLANGENUT, FLANGE
-
214JP-2177G-04-00 BOX, BATTERYBOX, BATTERY
-
2290183-05042-00 NUT, SPRINGNUT, SPRING
-
2397707-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
2497707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
2597707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
263LD-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
