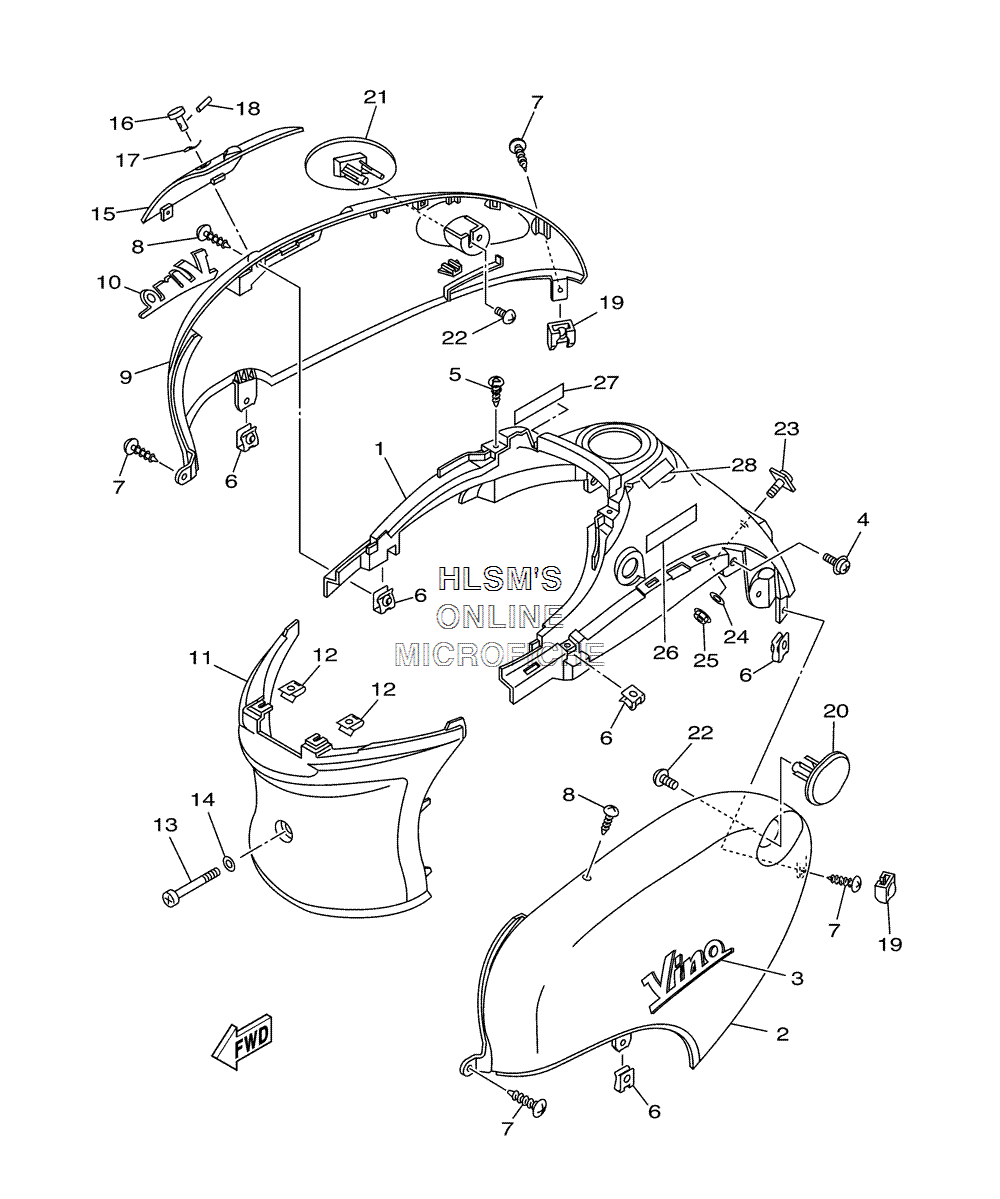

SIDE COVER для Yamaha VINO - 2002 года выпуска
-
№АртикулНазвание
-
15LY-21711-00-00 COVER, SIDE 1COVER, SIDE 1
-
25AU-21721-00-P2 COVER, SIDE 2 (VDBC4)COVER, SIDE 2 (VDBC4)
-
25AU-21721-00-P6 COVER, SIDE 2 (DRMD)COVER, SIDE 2 (DRMD)
-
35AU-21781-00-00 EMBLEM 1EMBLEM 1
-
490159-06078-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
590163-05006-00 SCREW, TAPPINGSCREW, TAPPING
-
690183-05042-00 NUT, SPRINGNUT, SPRING
-
797707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
897707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
95AU-21731-02-P0 COVER, SIDE 3 (VDBC4)COVER, SIDE 3 (VDBC4)
-
95AU-21731-02-P6 COVER, SIDE 3 (DRMD)COVER, SIDE 3 (DRMD)
-
105AU-21782-00-00 EMBLEM 2EMBLEM 2
-
115AU-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
1290183-05042-00 NUT, SPRINGNUT, SPRING
-
1398504-06070-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492903-06600-00 WASHER, PLATEWASHER, PLATE
-
155AU-21716-00-P2 LID, SIDE COVER (VDBC4)LID, SIDE COVER (VDBC4)
-
155AU-21716-00-P6 LID, SIDE COVER (DRMD)LID, SIDE COVER (DRMD)
-
1690249-06191-00 PINPIN
-
1790206-06090-00 WASHER, WAVEWASHER, WAVE
-
1891690-25012-00 PIN, SPRINGPIN, SPRING
-
195AU-21875-00-00 CAPCAP
-
205LY-2172F-00-P2 PANEL 2 (VDBC4)PANEL 2 (VDBC4)
-
205LY-2172F-00-P1 PANEL 2 (DRMD)PANEL 2 (DRMD)
-
215LY-2172G-00-P2 PANEL 3 (VDBC4)PANEL 3 (VDBC4)
-
215LY-2172G-00-P1 PANEL 3 (DRMD)PANEL 3 (DRMD)
-
2297707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
235LY-21712-00-00 BOLT, SIDE COVERBOLT, SIDE COVER
-
2490209-04008-00 WASHERWASHER
-
2595607-05200-00 NUT, U FLANGENUT, U FLANGE
-
263JJ-28446-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
275LY-21668-A0-00 LABEL, TIRELABEL, TIRE
-
285LY-24875-00-00 LABEL 1LABEL 1
