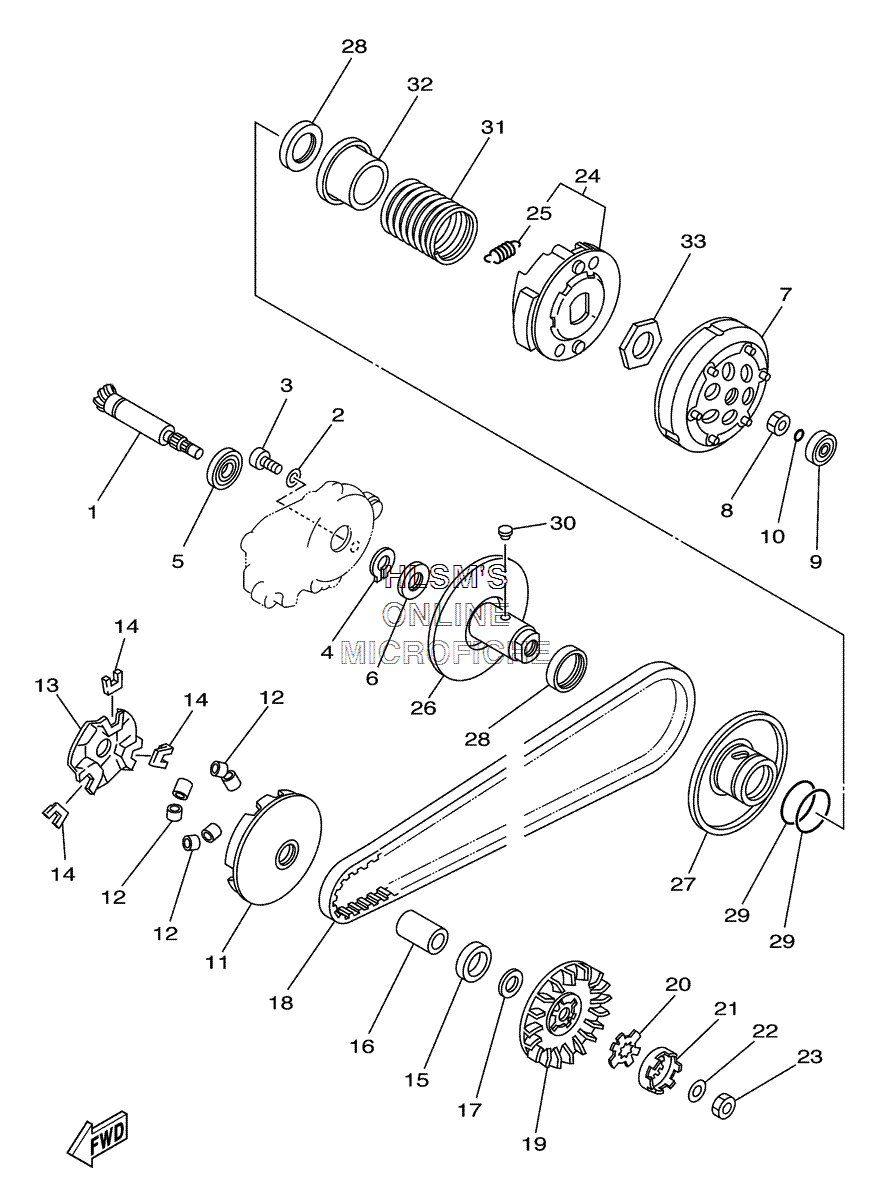

CLUTCH для Yamaha VINO - 2003 года выпуска
-
№АртикулНазвание
-
13KJ-16111-00-00 GEAR, PRIMARY DRIVE (13T)GEAR, PRIMARY DRIVE (13T)
-
290201-06412-00 WASHER, PLATEWASHER, PLATE
-
398507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
499009-17400-00 CIRCLIPCIRCLIP
-
593306-00325-00 BEARINGBEARING
-
693102-17342-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
75BM-16611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
890170-10317-00 NUTNUT
-
993300-63813-00 BEARINGBEARING
-
1093210-06550-00 O-RINGO-RING
-
114JP-17620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
124JP-17632-00-00 WEIGHTWEIGHT
-
133AA-17623-00-00 CAMCAM
-
1423Y-17653-00-00 SLIDERSLIDER
-
155LY-17645-00-00 COLLARCOLLAR
-
1690387-137Y3-00 COLLARCOLLAR
-
1790201-136P4-00 WASHER, PLATEWASHER, PLATE
-
184JP-17641-00-00 V-BELTV-BELT
-
193AA-17611-01-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
2090214-13058-00 WASHER, CLAWWASHER, CLAW
-
213KJ-15657-00-00 CLUTCH, ONE-WAYCLUTCH, ONE-WAY
-
2290208-10012-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2390170-10219-00 NUTNUT
-
242JA-16620-01-00 CLUTCH CARRIER ASSY.CLUTCH CARRIER ASSY.
-
252JA-16626-00-00 ...SPRING, CLUTCH WEIGHT 1...SPRING, CLUTCH WEIGHT 1
-
263AA-17660-03-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
273WG-17608-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
2893104-33117-00 OIL SEALOIL SEAL
-
2993210-384A6-00 O-RINGO-RING
-
3024G-17664-00-00 PIN, GUIDEPIN, GUIDE
-
3190501-357F3-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
323XG-17684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
3390179-28415-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
