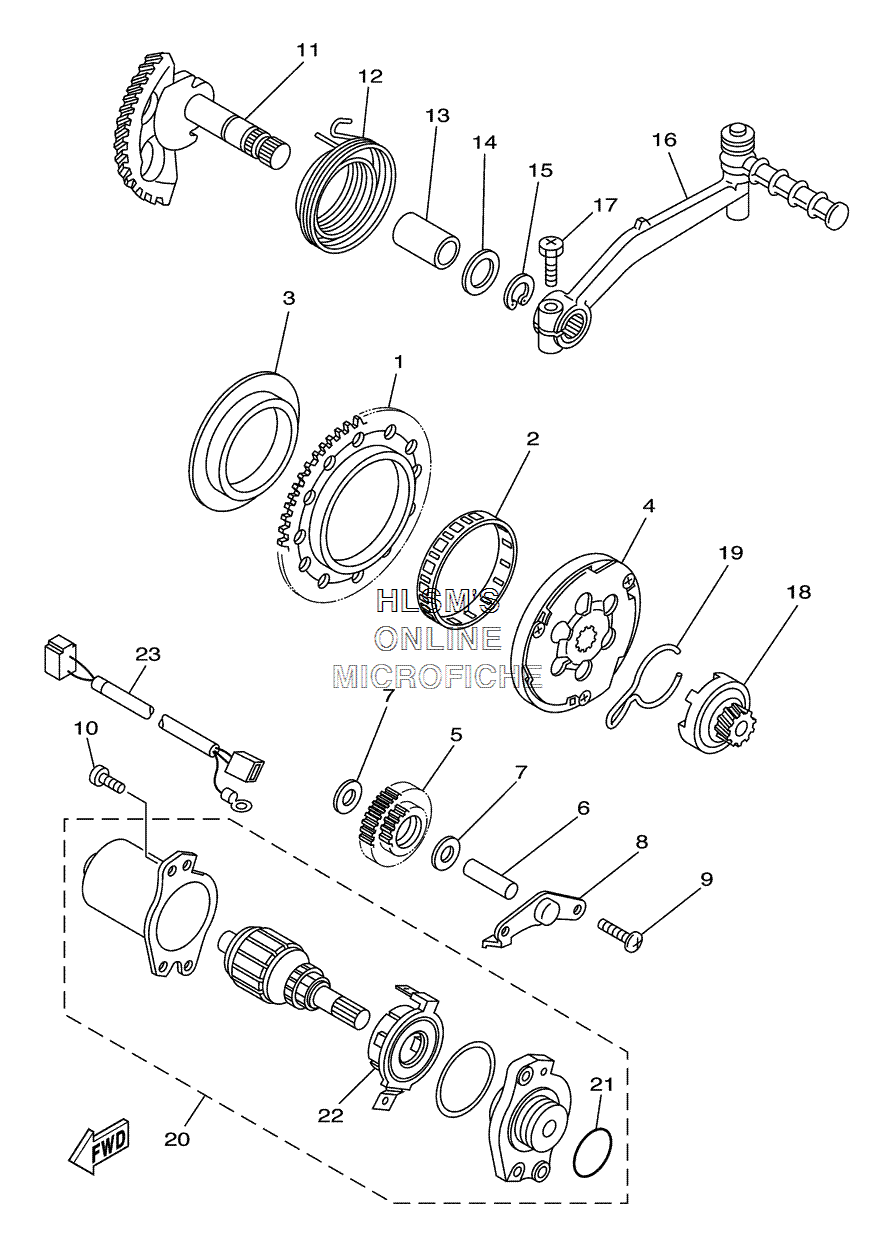

STARTER для Yamaha VINO - 2003 года выпуска
-
№АртикулНазвание
-
14JP-15513-00-00 GEAR 1 (68T)GEAR 1 (68T)
-
293310-25712-00 BEARINGBEARING
-
33KJ-15528-00-00 BOSS, GEARBOSS, GEAR
-
43KJ-15570-01-00 STARTER CLUTCH ASSY.STARTER CLUTCH ASSY.
-
54JP-15650-00-00 IDLE GEAR ASSY. (65T/20T)IDLE GEAR ASSY. (65T/20T)
-
650M-13342-00-00 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
790201-08088-00 WASHER, PLATEWASHER, PLATE
-
83KJ-15532-00-00 PLATE, IDLE GEARPLATE, IDLE GEAR
-
998507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1091317-06020-00 BOLTBOLT
-
115BM-15601-01-00 KICK SHAFT ASSY.KICK SHAFT ASSY.
-
1290508-32609-00 SPRING, TORSIONSPRING, TORSION
-
1390380-15240-00 BUSH, SOLIDBUSH, SOLID
-
1490201-155G5-00 WASHER, PLATEWASHER, PLATE
-
1599009-15400-00 CIRCLIPCIRCLIP
-
163KJ-15620-02-00 KICK CRANK ASSY.KICK CRANK ASSY.
-
1790153-06008-00 SCREW, HEXAGONSCREW, HEXAGON
-
183AA-15631-00-00 GEAR, KICK PINION (10T)GEAR, KICK PINION (10T)
-
1932N-15673-00-00 CLIPCLIP
-
205BM-81800-01-00 STARTING MOTOR ASSY.STARTING MOTOR ASSY.
-
2193210-23614-00 ...O-RING...O-RING
-
225BM-81801-01-00 ...BRUSH SET...BRUSH SET
-
235BM-82541-00-00 WIRE, LEADWIRE, LEAD
