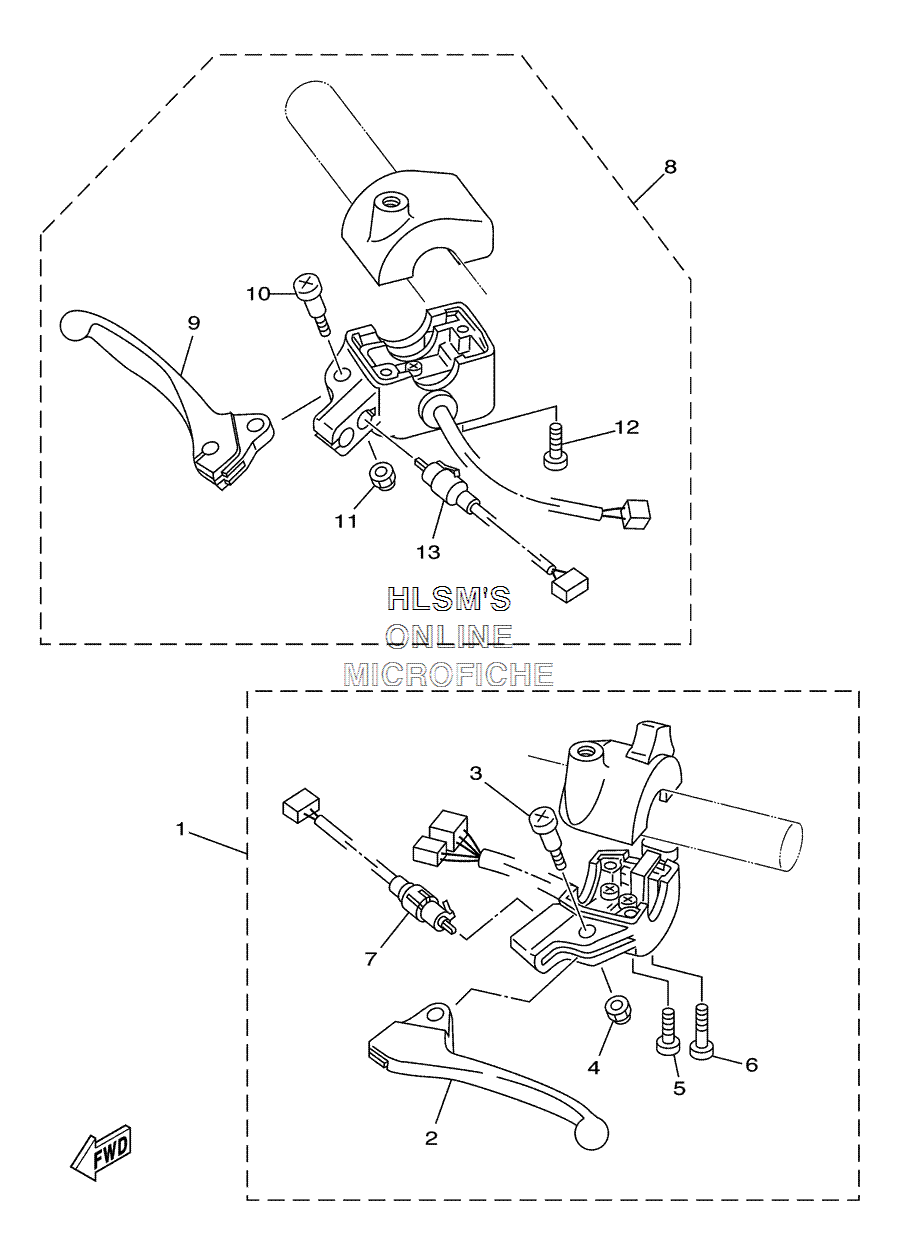

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha VINO - 2003 года выпуска
-
№АртикулНазвание
-
15AU-82910-12-00 LEVER HOLDER ASSY. (LEFT)LEVER HOLDER ASSY. (LEFT)
-
22T4-83912-02-00 ...LEVER L...LEVER L
-
390149-05300-00 ...SCREW...SCREW
-
495704-05300-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
598507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
698507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
72NT-82917-00-00 ...SWITCH...SWITCH
-
85LY-82920-00-00 LEVER HOLDER ASSY. (RIGHT)LEVER HOLDER ASSY. (RIGHT)
-
92T4-83922-02-00 ...LEVER R...LEVER R
-
1090149-05274-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
-
1195707-05300-00 ...NUT, FLANGE...NUT, FLANGE
-
1298507-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
132GV-82917-00-00 ...SWITCH...SWITCH
