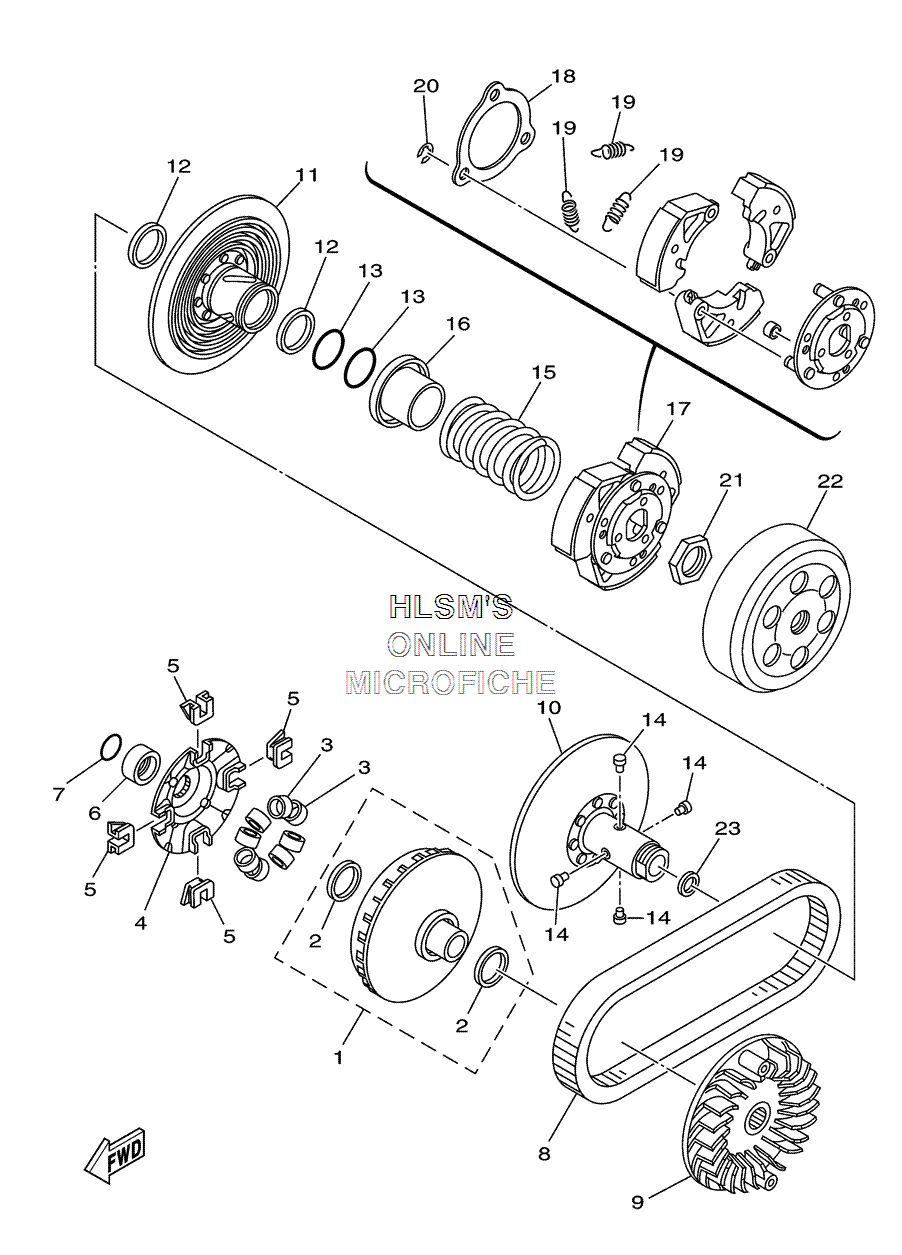

CLUTCH ASSY. для Yamaha MORPHOUS - 2006 года выпуска
-
№АртикулНазвание
-
15VG-W1762-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
293101-35001-00 ...OIL SEAL...OIL SEAL
-
31B7-17632-10-00 WEIGHTWEIGHT
-
45VU-17623-00-00 CAMCAM
-
55VU-17653-00-00 SLIDERSLIDER
-
690387-27001-00 COLLARCOLLAR
-
793210-27ME3-00 O-RINGO-RING
-
81B7-17641-00-00 V-BELTV-BELT
-
95VG-17611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
105RU-17660-01-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
115RU-17670-01-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
1293104-41119-00 OIL SEALOIL SEAL
-
1393210-43713-00 O-RINGO-RING
-
144CW-17664-00-00 PIN, GUIDEPIN, GUIDE
-
1590501-505J6-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
165GM-17644-00-00 SEAT, SPRINGSEAT, SPRING
-
175VG-16620-00-00 CLUTCH CARRIER ASSY.CLUTCH CARRIER ASSY.
-
184JK-16523-00-00 ...PLATE, WEIGHT THRUST...PLATE, WEIGHT THRUST
-
195VG-16626-00-00 ...SPRING, CLUTCH WEIGHT 1...SPRING, CLUTCH WEIGHT 1
-
2099001-08600-00 ...CIRCLIP...CIRCLIP
-
2190170-36279-00 NUTNUT
-
225GM-16611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
2390201-17485-00 WASHER, PLATEWASHER, PLATE
