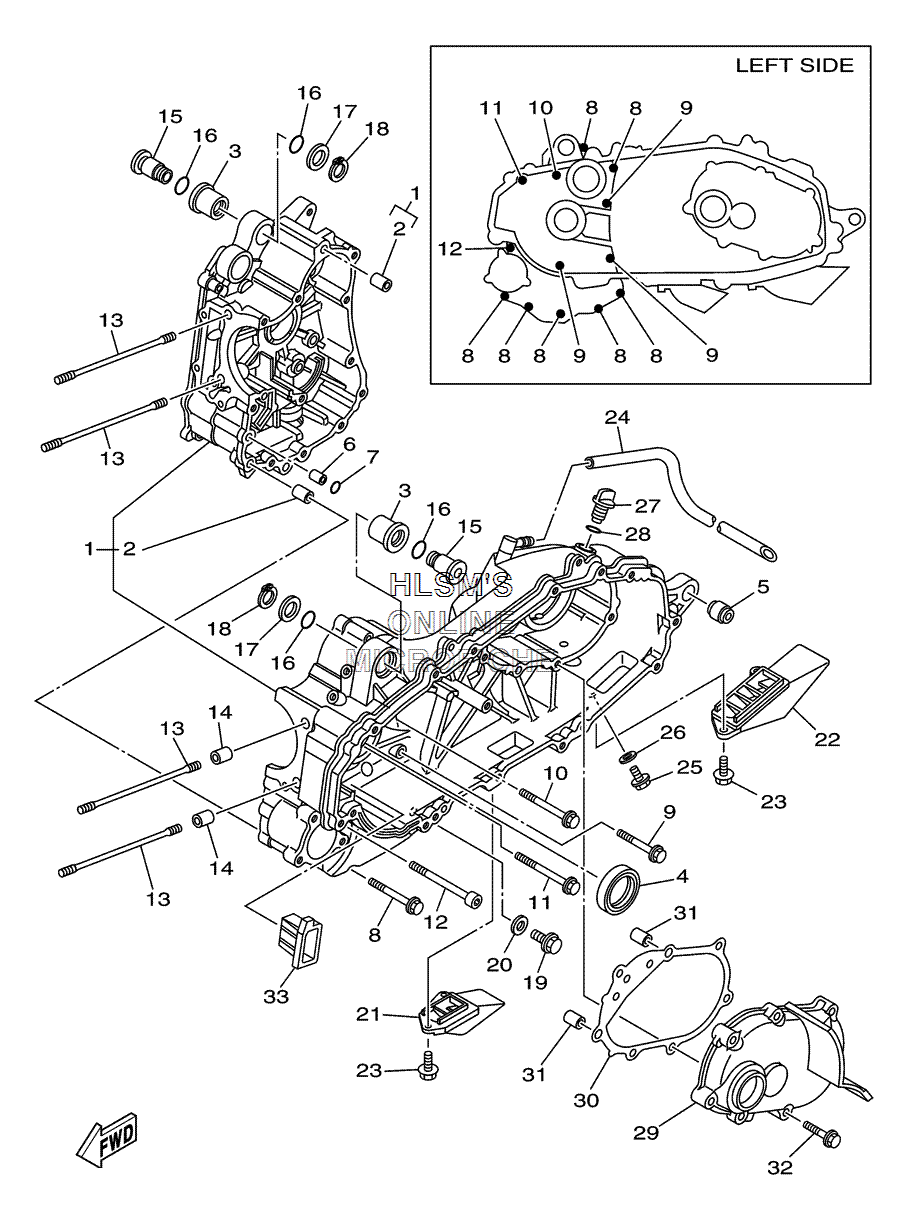

CRANKCASE ASSY. для Yamaha MORPHOUS - 2006 года выпуска
-
№АртикулНазвание
-
15RU-15100-03-00 CRANKCASE ASSY.CRANKCASE ASSY.
-
299530-10114-00 ...PIN, DOWEL...PIN, DOWEL
-
35RU-15378-00-00 HOLDERHOLDER
-
493102-40017-00 OIL SEALOIL SEAL
-
55RU-22216-00-00 BUSH, REAR SHOCK ABSORBERBUSH, REAR SHOCK ABSORBER
-
699530-08012-00 PIN, DOWELPIN, DOWEL
-
793210-08561-00 O-RINGO-RING
-
895027-06070-00 BOLT, FLANGEBOLT, FLANGE
-
995027-08060-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1095027-08080-00 BOLT, FLANGEBOLT, FLANGE
-
1195027-08090-00 BOLT, FLANGEBOLT, FLANGE
-
1291317-08100-00 BOLTBOLT
-
1390116-10022-00 BOLT, STUDBOLT, STUD
-
1499530-14016-00 PIN, DOWELPIN, DOWEL
-
155RU-15372-00-00 COLLAR, UNIONCOLLAR, UNION
-
1693210-18397-00 O-RINGO-RING
-
1790201-18262-00 WASHER, PLATEWASHER, PLATE
-
1899009-18400-00 CIRCLIPCIRCLIP
-
1990340-12059-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2090430-12213-00 GASKETGASKET
-
215RU-15473-10-00 DUCT, AIRDUCT, AIR
-
225RU-15475-00-00 DUCT, AIRDUCT, AIR
-
2390105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2490445-135J8-00 HOSEHOSE
-
2595817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2690430-08119-00 GASKETGASKET
-
272T4-15363-00-00 PLUG, OILPLUG, OIL
-
2893210-14104-00 O-RINGO-RING
-
295RU-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
305RU-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
3199530-10114-00 PIN, DOWELPIN, DOWEL
-
3295027-08040-00 BOLT, FLANGEBOLT, FLANGE
-
335RU-15477-00-00 DUCT, AIRDUCT, AIR
