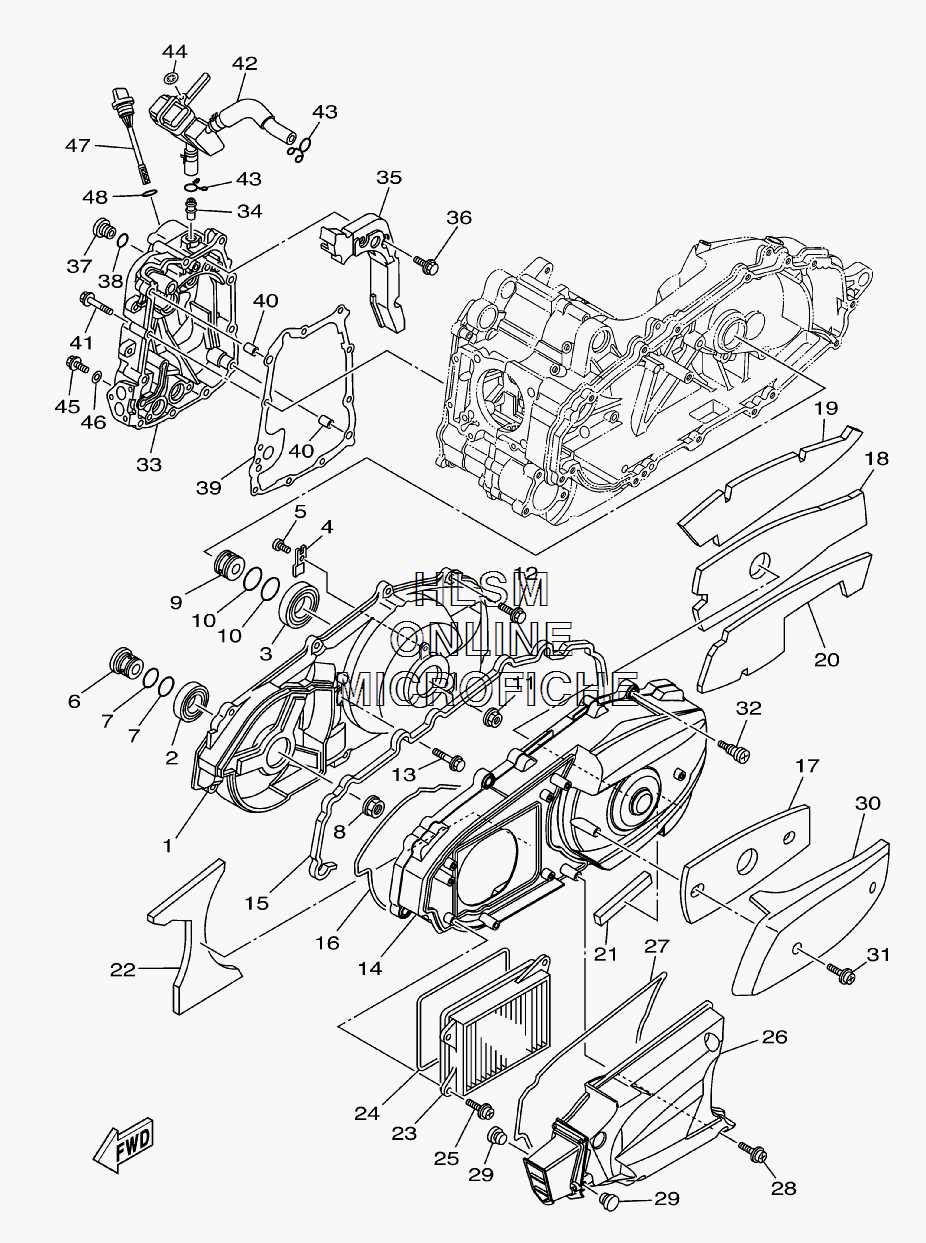

CRANKCASE COVER для Yamaha MAJESTY - 2007 года выпуска
-
№АртикулНазвание
-
15RU-15411-01-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
293306-00616-00 BEARINGBEARING
-
393306-00708-00 BEARINGBEARING
-
45RU-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
590149-06004-00 SCREWSCREW
-
65RU-11445-00-00 SPACERSPACER
-
793210-25552-00 O-RINGO-RING
-
890179-18002-00 NUTNUT
-
95RU-17649-00-00 SPACERSPACER
-
1093210-30611-00 O-RINGO-RING
-
1190179-14469-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1295027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1395817-08040-00 BOLT, FLANGEBOLT, FLANGE
-
145RU-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
155RU-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
165RU-15472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
175RU-15316-00-00 DAMPER, ENGINE MOUNT 1DAMPER, ENGINE MOUNT 1
-
185RU-15326-00-00 DAMPER, ENGINE MOUNT 2DAMPER, ENGINE MOUNT 2
-
195RU-15335-00-00 DAMPER 3DAMPER 3
-
205RU-15337-00-00 DAMPER 4DAMPER 4
-
215RU-15338-00-00 DAMPER, ENGINE MOUNT 5DAMPER, ENGINE MOUNT 5
-
225RU-15491-00-00 PROTECTORPROTECTOR
-
235RU-15407-02-00 ELEMENT 1ELEMENT 1
-
245RU-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
2590159-06013-00 SCREW WITH WASHERSCREW WITH WASHER
-
265RU-15471-00-00 DUCT, AIRDUCT, AIR
-
275RU-15434-00-00 SEAL, CLEANER COVERSEAL, CLEANER COVER
-
2890159-06013-00 SCREW WITH WASHERSCREW WITH WASHER
-
2990338-10132-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
305RU-15779-00-00 COVERCOVER
-
3190159-06013-00 SCREW WITH WASHERSCREW WITH WASHER
-
323KJ-15481-00-00 BOLT 1BOLT 1
-
335RU-15417-00-00 COVER, CAPCOVER, CAP
-
34371-11167-01-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
355RU-1541A-00-00 STAY, CRANKCASE COVER 1STAY, CRANKCASE COVER 1
-
3690119-06109-00 BOLT WITH WASHERBOLT WITH WASHER
-
3736Y-15189-00-00 PLUGPLUG
-
3893210-16325-00 O-RINGO-RING
-
395RU-15453-00-00 GASKETGASKET
-
4099530-10114-00 PIN, DOWELPIN, DOWEL
-
4195027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
425RU-15370-02-00 BREATHER ASSYBREATHER ASSY
-
4390467-16195-00 CLIP, SCISSORCLIP, SCISSOR
-
4490183-05068-00 NUT, SPRINGNUT, SPRING
-
4595027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4690430-06014-00 GASKETGASKET
-
475RU-15363-01-00 PLUG, OILPLUG, OIL
-
4893210-19123-00 O-RINGO-RING
