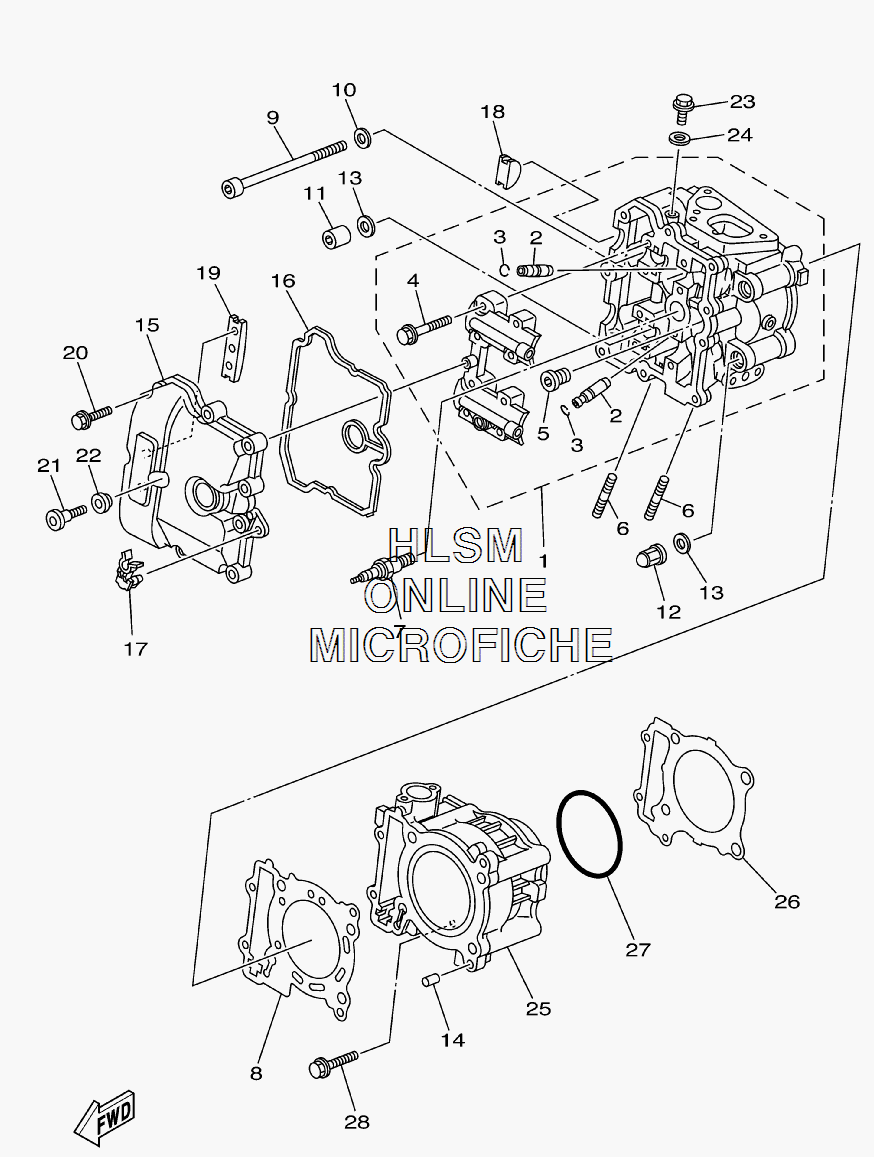

CYLINDER W/ HEAD ASSY. для Yamaha MAJESTY - 2007 года выпуска`
-
№АртикулНазвание
-
15RU-11101-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25JW-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
393440-09141-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
490105-06026-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
590340-12112-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
695617-08620-00 BOLT, STUDBOLT, STUD
-
7NGK-CR7E0-00-00 PLUG, SPARK (NGK CR7E)PLUG, SPARK (NGK CR7E)
-
85RU-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
991318-06150-00 BOLTBOLT
-
1090201-06016-00 WASHER, PLATEWASHER, PLATE
-
1190179-10006-00 NUTNUT
-
1290176-10075-00 NUT, CROWNNUT, CROWN
-
1390201-103M4-00 WASHER, PLATEWASHER, PLATE
-
1499530-10014-00 PIN, DOWELPIN, DOWEL
-
155RU-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
165RU-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1790464-09017-00 CLAMPCLAMP
-
185RU-11138-00-00 PLUGPLUG
-
195BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
2095027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2190109-066F0-00 BOLTBOLT
-
224KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
2390105-06424-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2490430-06014-00 GASKETGASKET
-
255RU-11310-00-00 CYLINDERCYLINDER
-
265RU-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
2793210-86509-00 O-RINGO-RING
-
2895027-06030-00 BOLT, FLANGEBOLT, FLANGE
