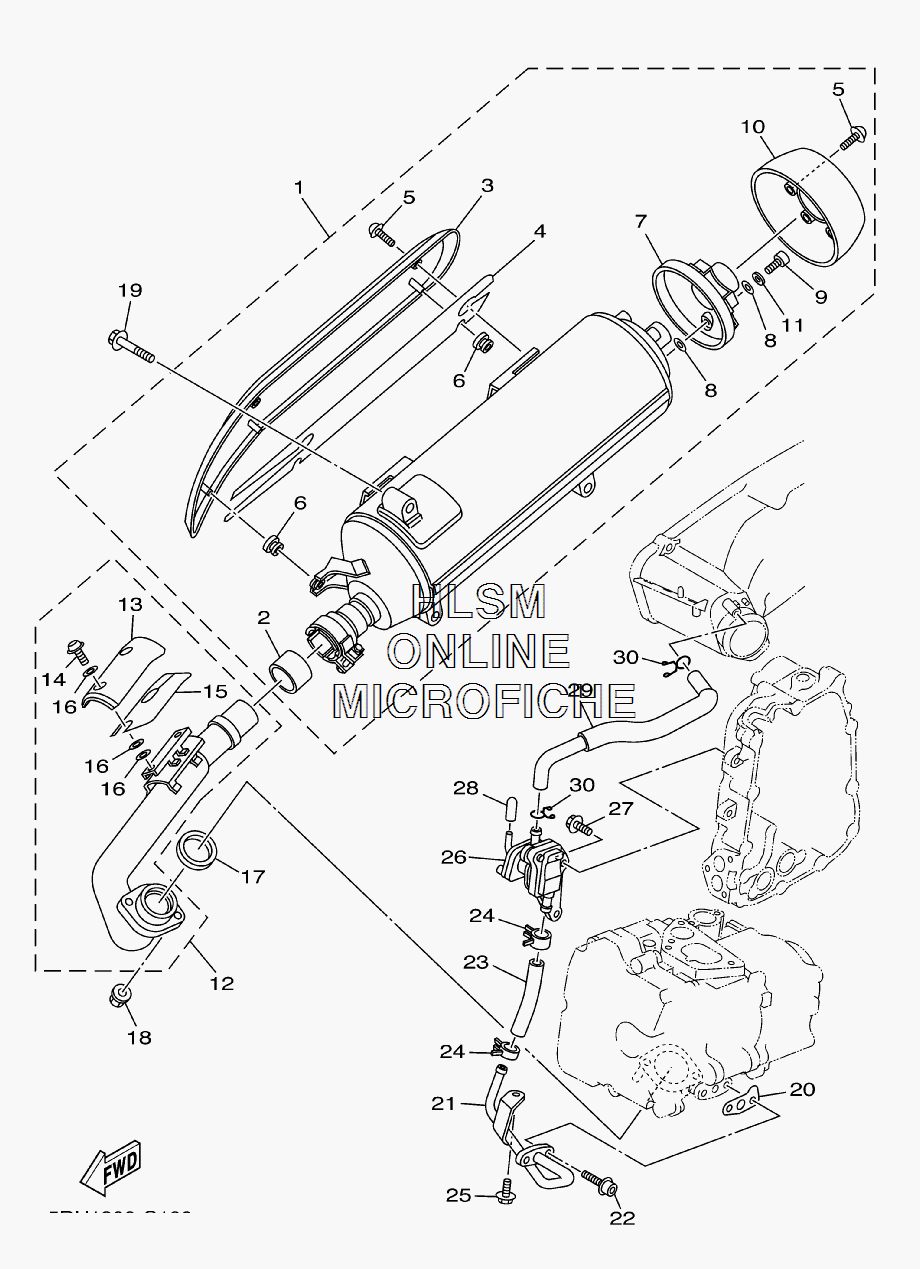

EXHAUST ASSY. для Yamaha MAJESTY - 2007 года выпуска
-
№АртикулНазвание
-
15RU-14710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
24EL-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
35RU-14718-00-00 ...PROTECTOR, MUFFLER 1...PROTECTOR, MUFFLER 1
-
45RU-14728-00-00 ...PROTECTOR, MUFFLER 2...PROTECTOR, MUFFLER 2
-
590111-06015-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
690480-10332-00 ...GROMMET...GROMMET
-
75GJ-14629-00-00 ...STAY, PROTECTOR...STAY, PROTECTOR
-
85GM-14766-00-00 ...WASHER, PROTECTOR...WASHER, PROTECTOR
-
991380-06012-00 ...BOLT...BOLT
-
105RU-14799-00-00 ...CAP...CAP
-
1192990-06200-00 ...WASHER, PLAIN...WASHER, PLAIN
-
125RU-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
135RU-14628-01-00 ...PROTECTOR, EXHAUST PIPE...PROTECTOR, EXHAUST PIPE
-
1490111-06020-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
155RU-1465R-00-00 ...PLATE, PROTECTOR...PLATE, PROTECTOR
-
165GM-14766-00-00 ...WASHER, PROTECTOR...WASHER, PROTECTOR
-
174TR-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1895607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1990105-100A4-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
205GM-14815-00-00 GASKETGASKET
-
215RU-14871-00-00 PIPE 1PIPE 1
-
2290110-06107-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
235RU-14881-00-00 HOSE, BEND 1HOSE, BEND 1
-
2490468-08104-00 CLIPCLIP
-
2595807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
265RU-14803-00-00 AIR INDUCTION SYSTEM ASSYAIR INDUCTION SYSTEM ASSY
-
2795027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
285PX-13569-00-00 PLUG, BLINDPLUG, BLIND
-
295RU-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
3090467-16195-00 CLIP, SCISSORCLIP, SCISSOR
