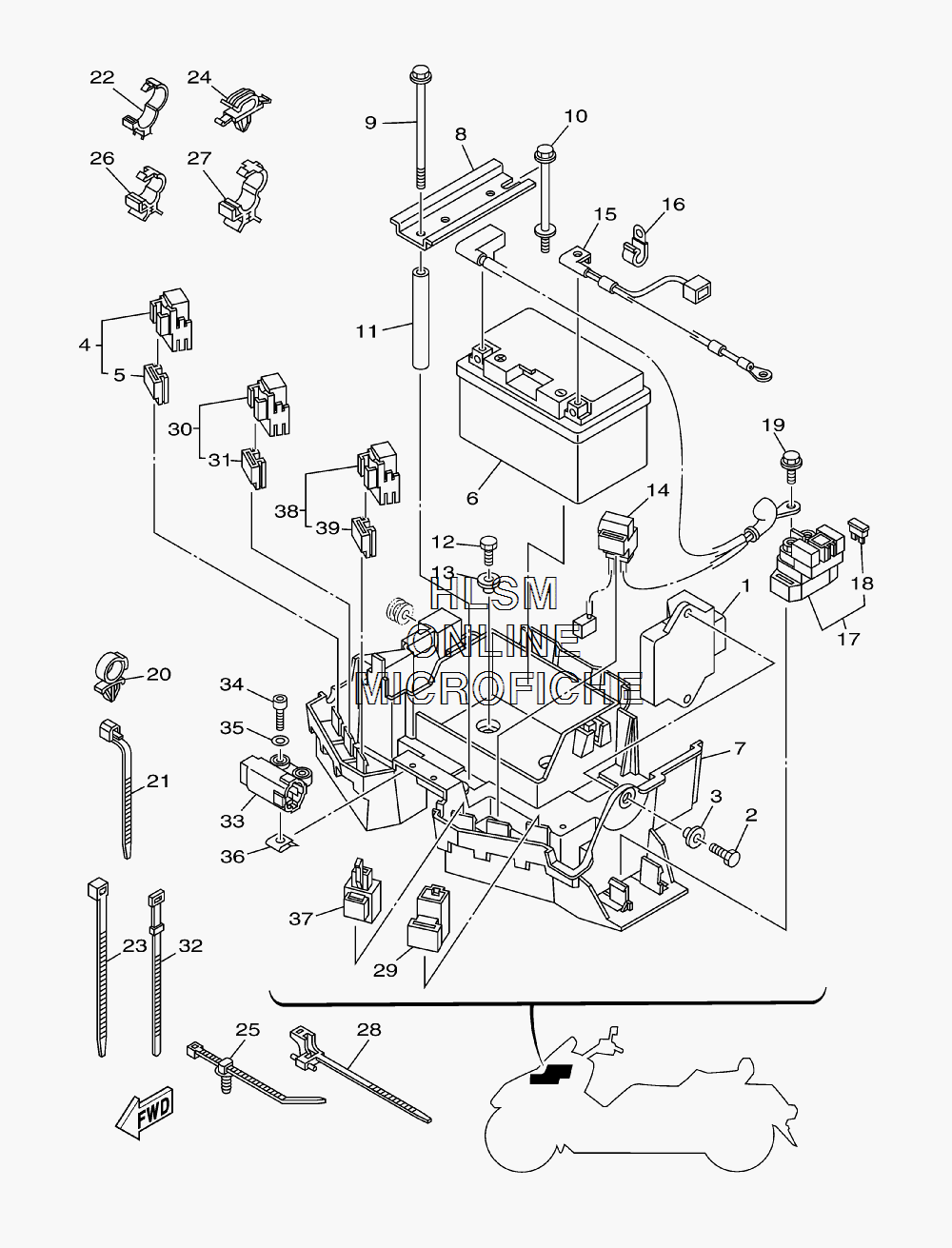

ELECTRICAL для Yamaha MORPHOUS - 2008 года выпуска
-
№АртикулНазвание
-
11B7-8591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
297007-06014-00 BOLTBOLT
-
390387-07717-00 COLLARCOLLAR
-
45EA-81950-20-00 RELAY ASSYRELAY ASSY
-
55EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
65BTY-YTZ10-S0-00 BATTERY ASSY (YUASA YTZ10S)BATTERY ASSY (YUASA YTZ10S)
-
71B7-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
81B7-2199G-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
995812-06120-00 BOLT, FLANGEBOLT, FLANGE
-
1090109-06104-00 BOLTBOLT
-
1190387-06111-00 COLLARCOLLAR
-
1297007-06014-00 BOLTBOLT
-
1390387-07717-00 COLLARCOLLAR
-
141B7-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
151B7-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
1690465-08028-00 CLAMPCLAMP
-
171B7-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
181AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
1995027-06008-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
2090464-12183-00 CLAMP (JN2)CLAMP (JN2)
-
2190460-15126-00 CLAMP, HOSECLAMP, HOSE
-
2290464-30252-00 CLAMPCLAMP
-
231UA-82591-00-00 BANDBAND
-
2490464-14001-00 CLAMPCLAMP
-
255RU-12491-00-00 CLAMP 1CLAMP 1
-
2690464-10190-00 CLAMPCLAMP
-
2790464-15192-00 CLAMPCLAMP
-
2890464-25002-00 CLAMPCLAMP
-
293GD-81950-01-00 RELAY ASSYRELAY ASSY
-
305EA-81950-20-00 RELAY ASSYRELAY ASSY
-
315EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
32437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
331B7-82576-01-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
3491317-04025-00 BOLTBOLT
-
3590201-04325-00 WASHER, PLATEWASHER, PLATE
-
3690183-04039-00 NUT, SPRINGNUT, SPRING
-
373GM-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
385EA-81950-20-00 RELAY ASSYRELAY ASSY
-
395EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
