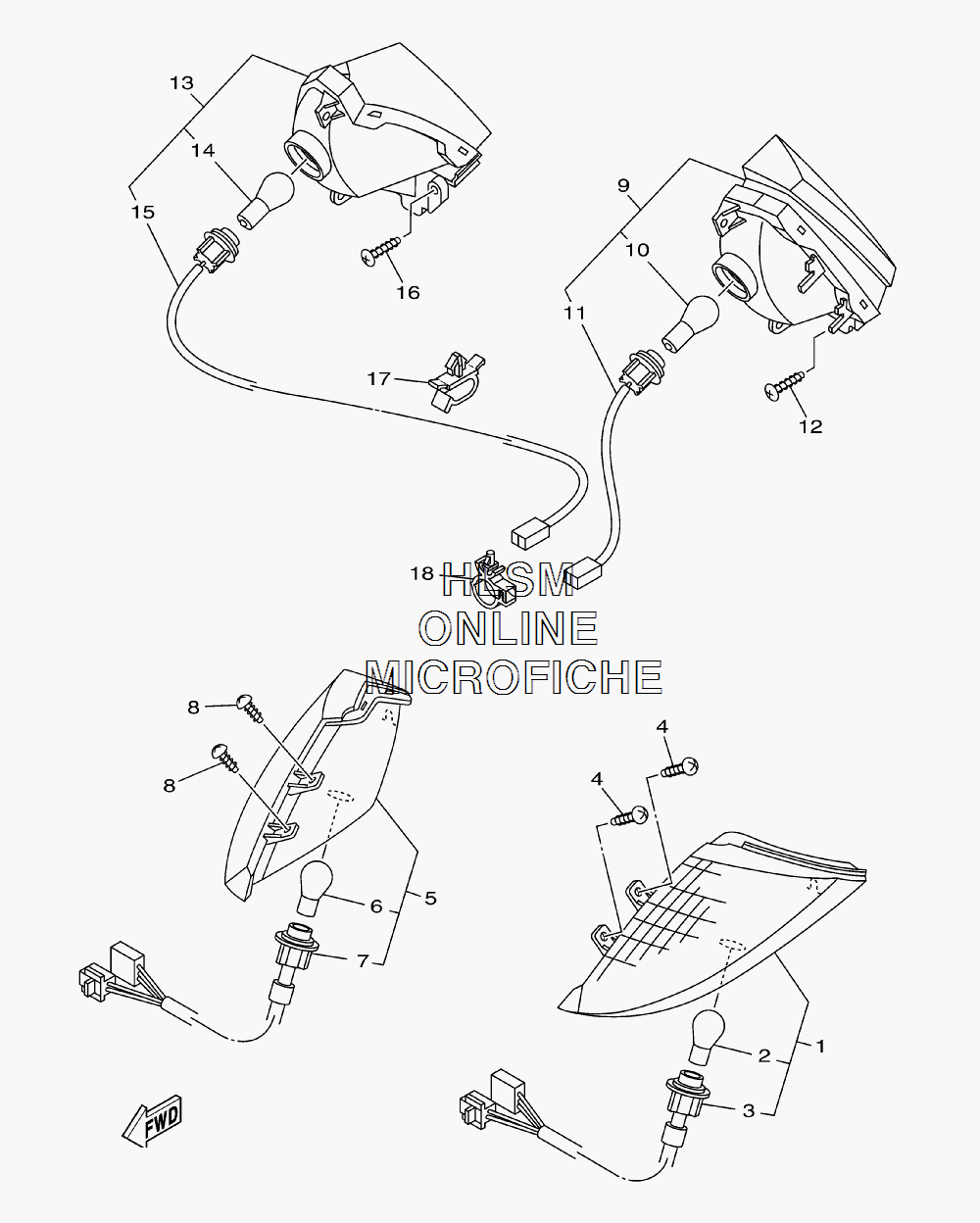

FLASHER LIGHT для Yamaha MORPHOUS - 2008 года выпуска
-
№АртикулНазвание
-
11B7-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
21B7-83311-00-00 ...BULB, FLASHER (12V-27/8W)...BULB, FLASHER (12V-27/8W)
-
31B7-8331E-10-00 ...CORD ASSY...CORD ASSY
-
497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
51B7-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
61B7-83311-00-00 ...BULB, FLASHER (12V-27/8W)...BULB, FLASHER (12V-27/8W)
-
71B7-8332E-10-00 ...CORD ASSY...CORD ASSY
-
897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
91B7-83330-00-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
105RU-83331-00-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
111B7-8333E-00-00 ...CORD ASS'Y...CORD ASS'Y
-
1297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
131B7-83340-00-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
145RU-83331-00-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
151B7-8334E-00-00 ...CORD ASS'Y...CORD ASS'Y
-
1697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1790464-14001-00 CLAMPCLAMP
-
1890464-16012-00 CLAMPCLAMP
