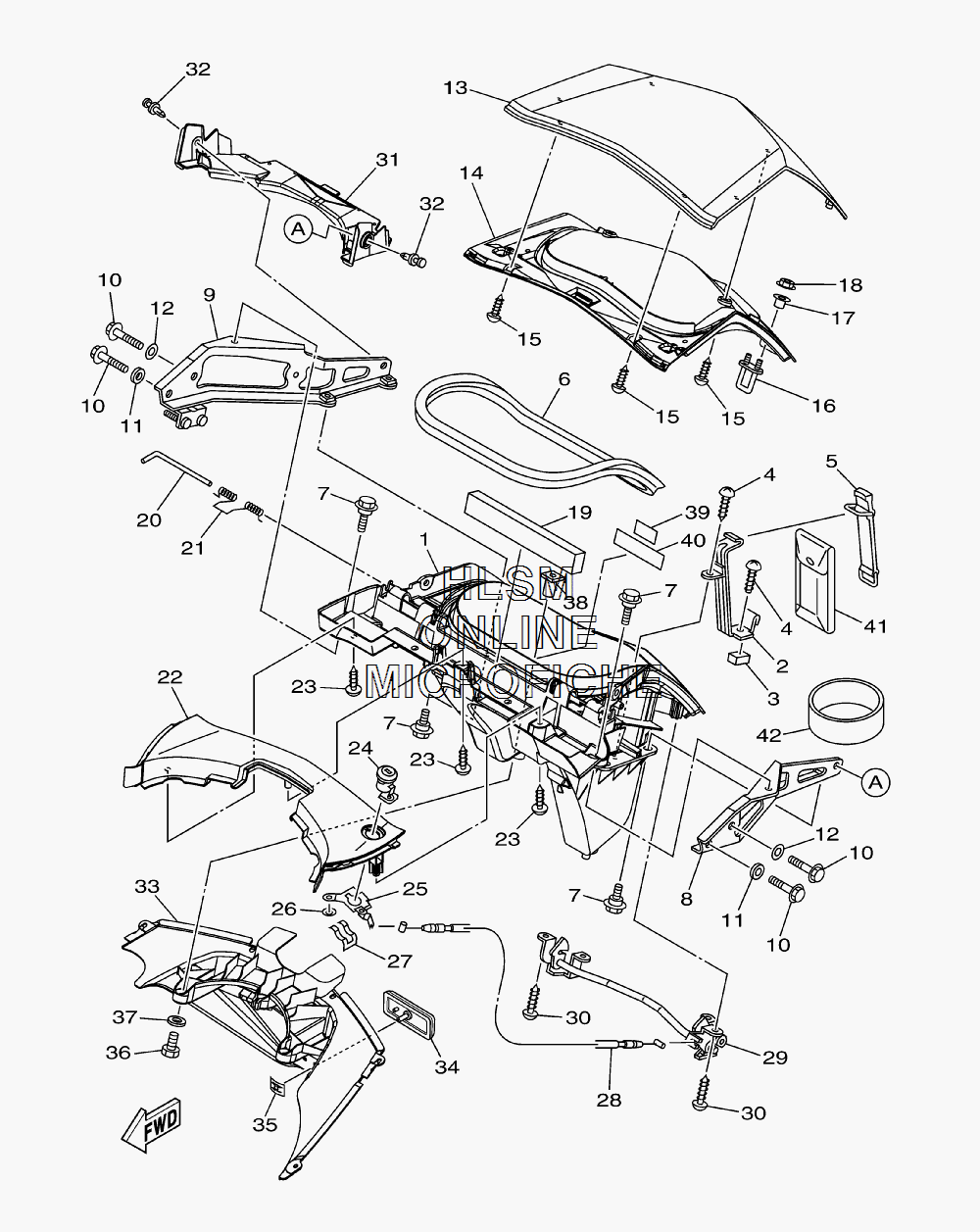

TRUNK - REAR для Yamaha MORPHOUS - 2008 года выпуска
-
№АртикулНазвание
-
11B7-2160E-00-00 BOXBOX
-
21B7-2175F-00-00 BRACKET, TOOLBRACKET, TOOL
-
31B7-28217-00-00 DAMPER 1DAMPER 1
-
497707-50014-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
518G-82131-00-00 BAND, BATTERYBAND, BATTERY
-
61B7-2173M-00-00 SEAL 3SEAL 3
-
790109-06043-00 BOLTBOLT
-
81B7-2474F-00-00 STAY, FRONT 1STAY, FRONT 1
-
91B7-2474G-00-00 STAY, FRONT 2STAY, FRONT 2
-
1090105-08089-00 BOLT, FLANGEBOLT, FLANGE
-
1190201-090P4-00 WASHER, PLATEWASHER, PLATE
-
1290201-09008-00 WASHER, PLATEWASHER, PLATE
-
131B7-2177B-00-P6 LID, COVER FOR VDM1LID, COVER FOR VDM1
-
141B7-2177J-00-00 LID 2LID 2
-
1597707-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
161B7-24718-00-00 BRACKET, SEATBRACKET, SEAT
-
1790387-05021-00 COLLARCOLLAR
-
1895707-05500-00 NUT, FLANGE 3GMNUT, FLANGE 3GM
-
191B7-24665-00-00 DAMPERDAMPER
-
201B7-24623-00-00 PIN 1PIN 1
-
211B7-24758-00-00 SPRINGSPRING
-
221B7-21741-00-P6 COVER, SIDE 4 FOR VDM1COVER, SIDE 4 FOR VDM1
-
2397707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
241B7-W2470-00-00 LOCK ASSYLOCK ASSY
-
251B7-2117K-00-00 STAY, LOCKSTAY, LOCK
-
2690183-06008-00 NUT, SPRINGNUT, SPRING
-
275VY-2176V-00-00 SPRING, LOCK 2SPRING, LOCK 2
-
281B7-2473J-00-00 WIREWIRE
-
291B7-27180-00-00 LOCK ASSYLOCK ASSY
-
3097707-60020-00 SCREW, TAPPINGSCREW, TAPPING
-
311B7-28493-00-00 COVER LOCK ASSY 2COVER LOCK ASSY 2
-
3290269-08002-00 RIVETRIVET
-
331B7-21629-00-00 GUARD, MUDGUARD, MUD
-
3447G-85150-00-00 PLATE, DESIGNPLATE, DESIGN
-
3590183-05016-00 NUT, SPRINGNUT, SPRING
-
3697027-06014-00 BOLTBOLT
-
3790201-06060-00 WASHER, PLATEWASHER, PLATE
-
381B7-21635-00-00 NUT, REAR FENDERNUT, REAR FENDER
-
393TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
403JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
411B7-28100-00-00 TOOL KITTOOL KIT
-
421B7-21639-00-00 DAMPER 2DAMPER 2
