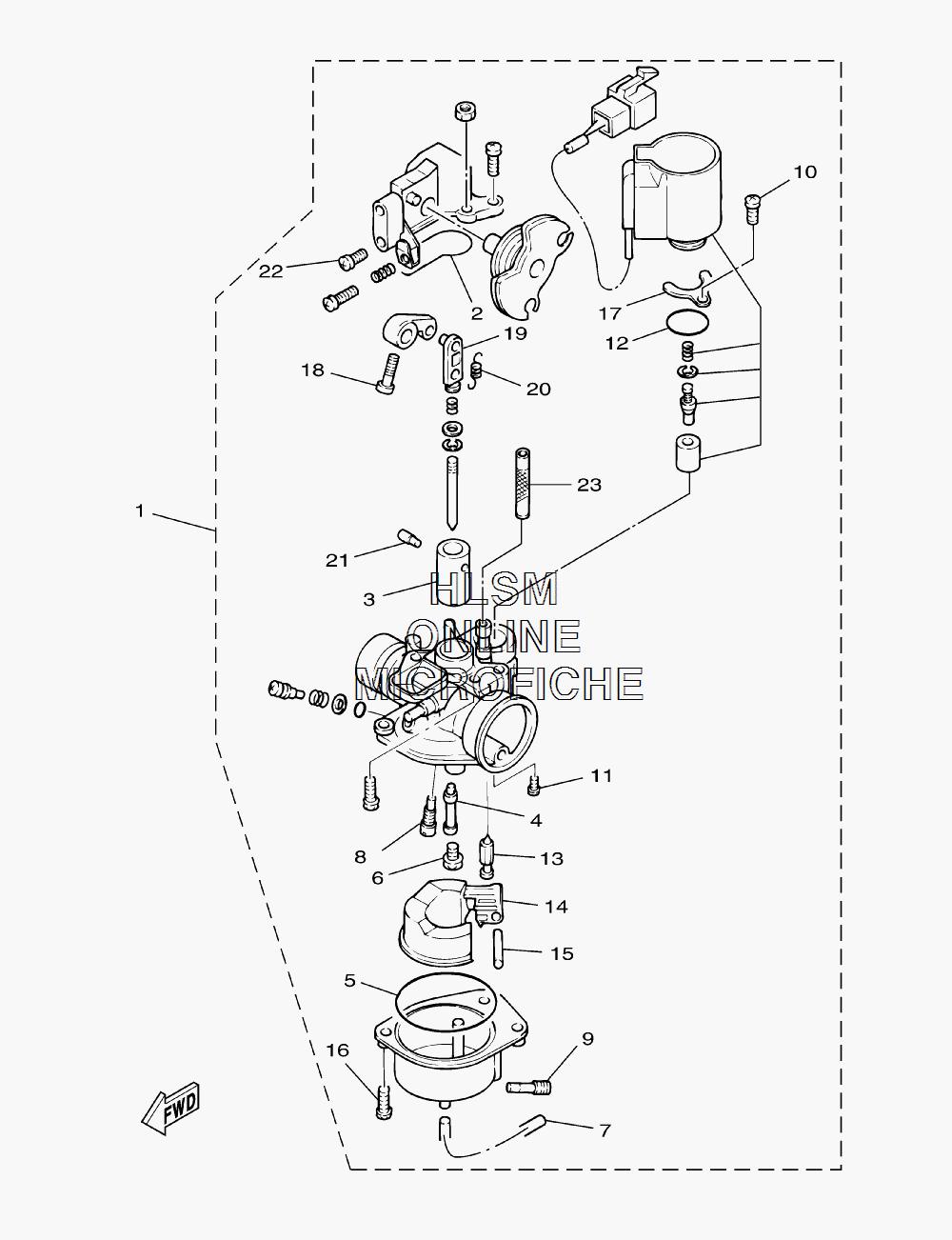

CARBURETOR ASSY. для Yamaha ZUMA - 2008 года выпуска
-
№АртикулНазвание
-
15PJ-14301-00-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
24LV-14561-00-00 ...O-RING...O-RING
-
35PJ-14312-30-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
45DA-14341-00-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
54JP-14384-01-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
614T-14343-40-00 ...JET, MAIN (#80)...JET, MAIN (#80)
-
73KJ-14349-01-00 ...PIPE...PIPE
-
84LV-14353-22-00 ...JET, PILOT (#44)...JET, PILOT (#44)
-
94JP-14323-00-00 ...AIR SCREW SET...AIR SCREW SET
-
1098501-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1198501-03006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
124KL-14397-00-00 ...O-RING...O-RING
-
132JA-14392-00-00 ...VALVE, NEEDLE...VALVE, NEEDLE
-
141HV-14385-01-00 ...FLOAT...FLOAT
-
15367-14386-00-00 ...PIN, FLOAT...PIN, FLOAT
-
1697801-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
174JP-14243-01-00 ...PLATE...PLATE
-
1897801-03014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
194LV-14274-00-00 ...CONNECTOR...CONNECTOR
-
204LV-14286-00-00 ...SPRING...SPRING
-
214LV-14434-00-00 ...SHAFT...SHAFT
-
2298507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
234SE-1445E-00-00 ...FILTER 1...FILTER 1
