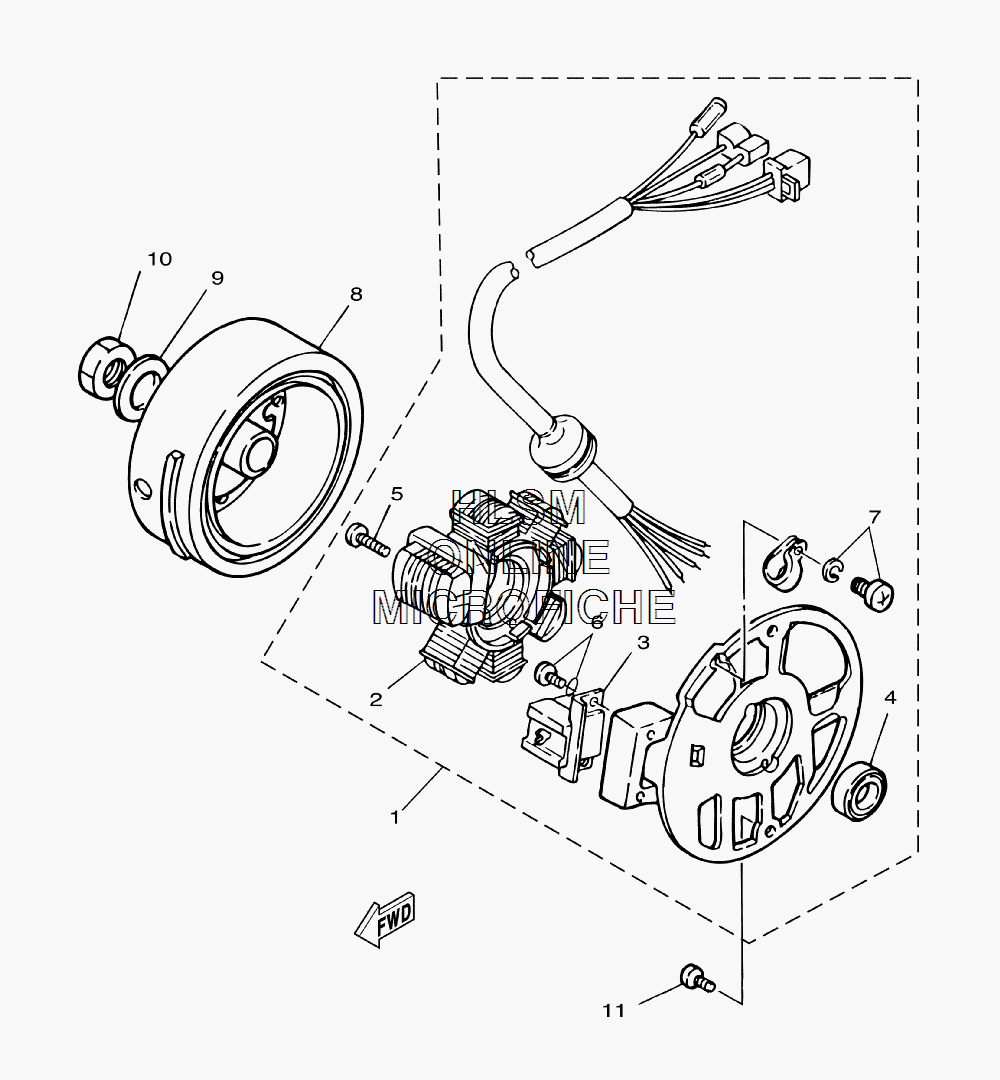

GENERATOR ASSY. для Yamaha ZUMA - 2008 года выпуска
-
№АртикулНазвание
-
15PJ-H5560-00-00 BASE ASSYBASE ASSY
-
23GF-H1403-V0-00 ...STATOR COMP....STATOR COMP.
-
33GF-H5580-V0-00 ...COIL, PULSER...COIL, PULSER
-
493104-19097-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
598511-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
697601-05110-00 ...SCREW, PAN HEAD (3SX)...SCREW, PAN HEAD (3SX)
-
797601-04106-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
84DY-H5550-00-00 ROTOR ASSYROTOR ASSY
-
992907-10600-00 WASHER (6TA)WASHER (6TA)
-
1090170-10219-00 NUT, HEXAGONNUT, HEXAGON
-
1198507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
