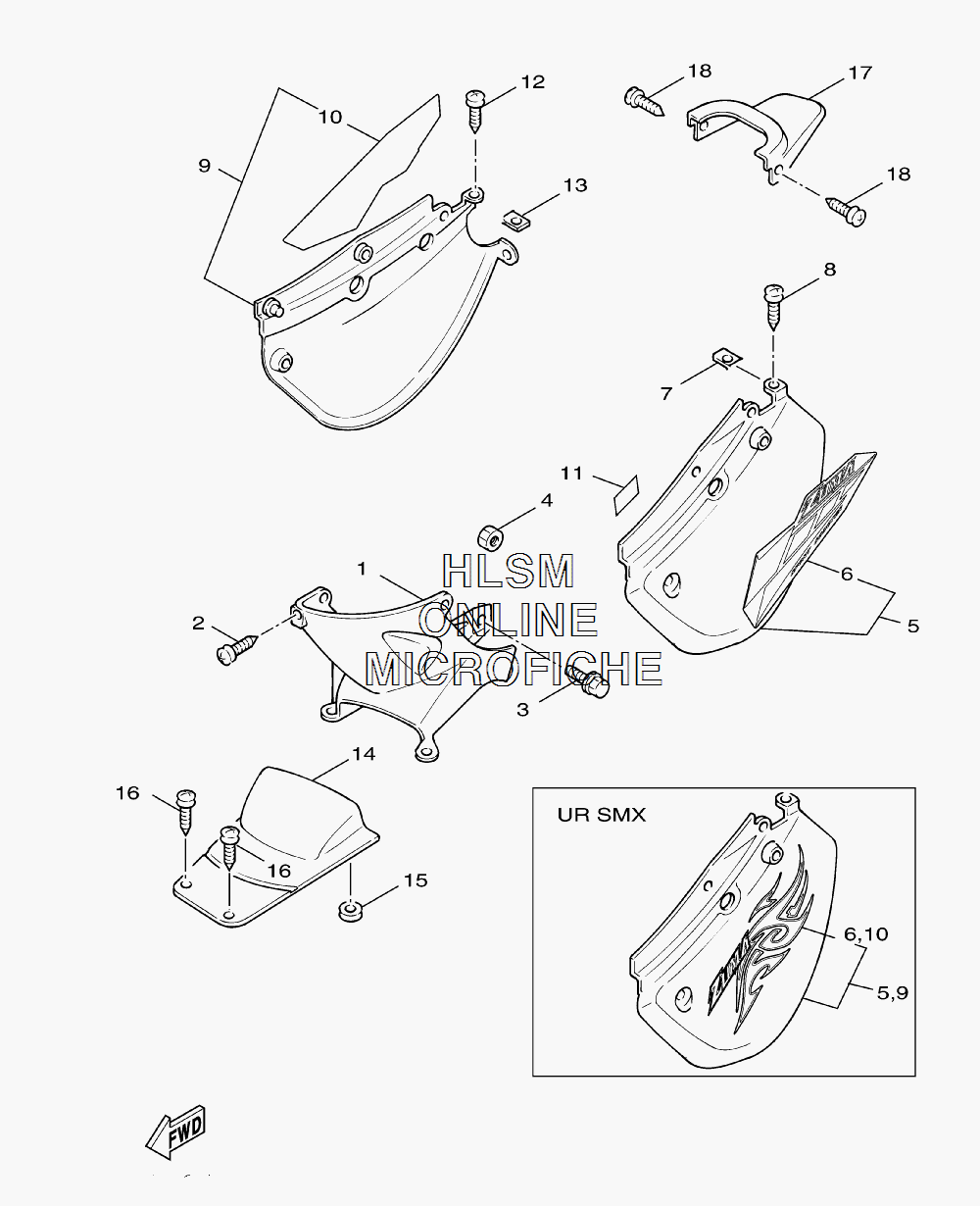

SIDE COVER для Yamaha ZUMA - 2008 года выпуска
-
№АртикулНазвание
-
14VP-F1711-00-00 COVER, SIDE 1COVER, SIDE 1
-
297707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
390159-06822-00 SCREW WITH WASHERSCREW WITH WASHER
-
42GF-F1535-00-00 NUT 1NUT 1
-
54VP-XF172-D1-P0 COVER, SIDE 2 (DPBMC)COVER, SIDE 2 (DPBMC)
-
54VP-XF172-31-P8 COVER, SIDE 2 (SMX)COVER, SIDE 2 (SMX)
-
65PJ-F173E-00-00 ...GRAPHIC 1 (DPBMC)...GRAPHIC 1 (DPBMC)
-
65PJ-F173X-00-00 ...GRAPHIC 7 (SMX)...GRAPHIC 7 (SMX)
-
790183-05807-00 NUT, SPRINGNUT, SPRING
-
897707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
94VP-XF173-D0-P0 COVER, SIDE 3 (DPBMC)COVER, SIDE 3 (DPBMC)
-
94VP-XF173-30-P8 COVER, SIDE 3 (SMX)COVER, SIDE 3 (SMX)
-
105PJ-F173F-00-00 ...GRAPHIC 2 (DPBMC)...GRAPHIC 2 (DPBMC)
-
105PJ-F173Y-00-00 ...GRAPHIC 8 (SMX)...GRAPHIC 8 (SMX)
-
114JK-F8446-01-00 LABEL, CAUTIONLABEL, CAUTION
-
1297707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1390183-05807-00 NUT, SPRINGNUT, SPRING
-
144VP-F1741-00-00 COVER, SIDE 4COVER, SIDE 4
-
1590480-16278-00 GROMMETGROMMET
-
1697707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
174VP-F171E-00-P0 COVER, SIDE 5 (DPBMC)COVER, SIDE 5 (DPBMC)
-
174VP-F171E-00-P8 COVER, SIDE 5 (SMX)COVER, SIDE 5 (SMX)
-
1897707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
