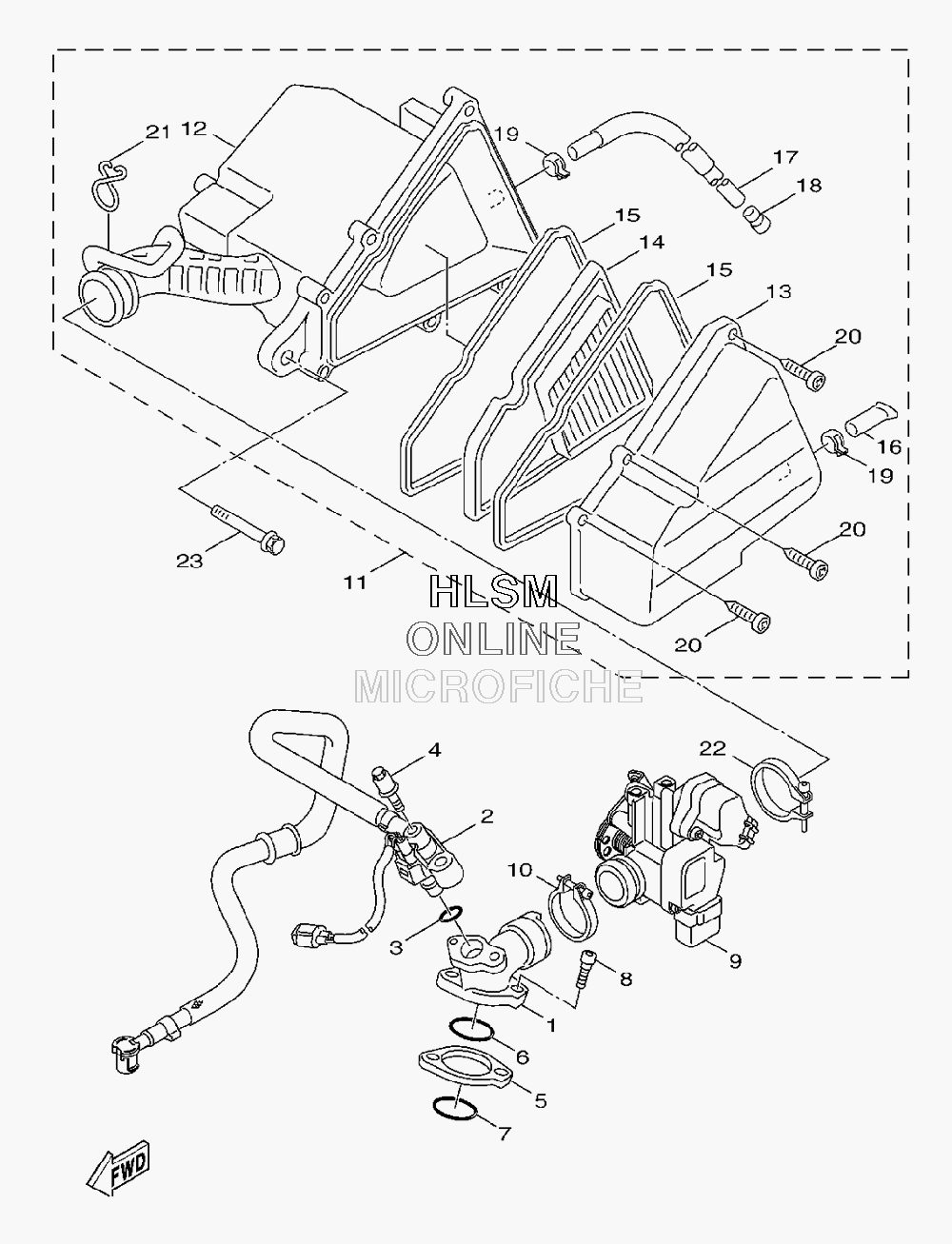

AIR CLEANER ASSY. W/ INTAKE для Yamaha C3 - 2009 года выпуска
-
№АртикулНазвание
-
13B3-E3585-01-00 MANIFOLDMANIFOLD
-
23B3-13930-00-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
35CA-14147-00-00 O-RINGO-RING
-
490109-06834-00 BOLTBOLT
-
53B3-E3595-00-00 JOINTJOINT
-
693210-22803-00 O-RINGO-RING
-
793210-22803-00 O-RINGO-RING
-
891317-06025-00 BOLTBOLT
-
93B3-E3750-01-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
103B3-E3575-00-00 BANDBAND
-
113B3-E4410-01-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
123B3-WE441-01-00 AIR CLEANER CASE COMP.AIR CLEANER CASE COMP.
-
133B3-WE442-01-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
143B3-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
153B3-E4467-00-00 SEALSEAL
-
163B3-E443G-00-00 PIPE, DRAIN 2PIPE, DRAIN 2
-
173B3-E443H-00-00 PIPE, DRAIN 3PIPE, DRAIN 3
-
183B3-E4191-00-00 PLUG, DRAINPLUG, DRAIN
-
1990467-12804-00 CLIPCLIP
-
2097707-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
2190467-16829-00 CLIPCLIP
-
223B3-E3474-00-00 BANDBAND
-
2395807-06030-00 BOLT, FLANGEBOLT, FLANGE
