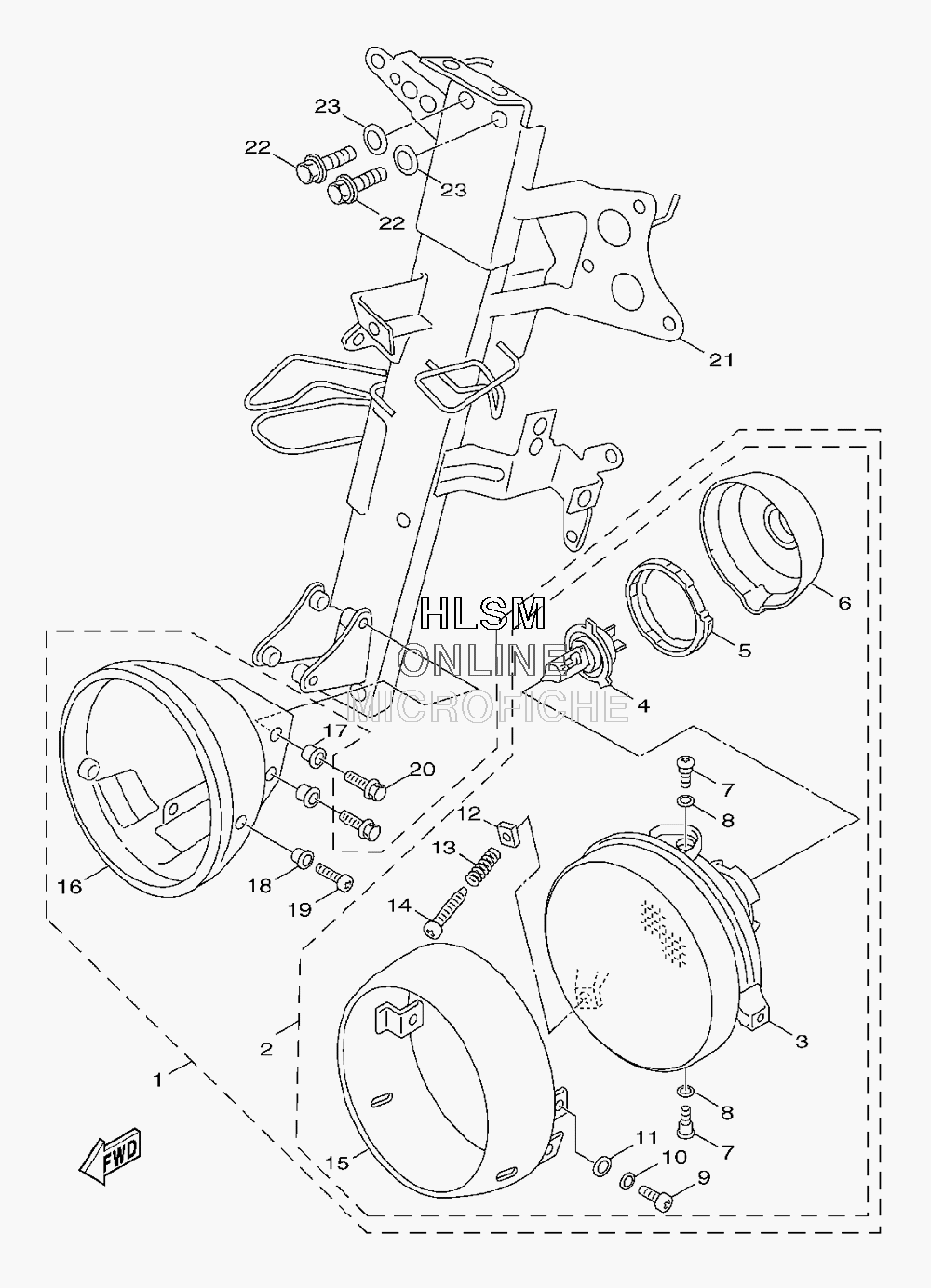

HEADLIGHT ASSY. для Yamaha C3 - 2009 года выпуска
-
№АртикулНазвание
-
13B3-H4300-10-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
23B3-H4310-10-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
33B3-H430A-10-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
45ST-H4314-00-00 BULB, HEADLIGHT (12V-35/35W)BULB, HEADLIGHT (12V-35/35W)
-
55PJ-H4397-10-00 COVER, SOCKETCOVER, SOCKET
-
65PJ-H4378-10-00 CAPCAP
-
75PJ-H4325-00-00 SCREW, RIM FITTINGSCREW, RIM FITTING
-
85YR-H4344-10-00 WASHER, PLAINWASHER, PLAIN
-
93B3-H4325-00-00 SCREW, RIM FITTINGSCREW, RIM FITTING
-
103B3-H4327-00-00 WASHER, SPECIALWASHER, SPECIAL
-
113B3-H4344-00-00 WASHER, PLAINWASHER, PLAIN
-
123B3-H4334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
133B3-H4332-00-00 SPRING, SCREWSPRING, SCREW
-
143B3-H4331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
153B3-H4315-00-00 RIM, HEADLIGHTRIM, HEADLIGHT
-
163B3-H4330-00-00 BODY ASSYBODY ASSY
-
1790387-06872-00 COLLARCOLLAR
-
185AG-H4338-00-00 COLLAR, BODY FITTINGCOLLAR, BODY FITTING
-
1990157-06064-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2095827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
213B3-F3174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
2291317-08020-00 BOLTBOLT
-
2392907-08200-00 WASHERWASHER
