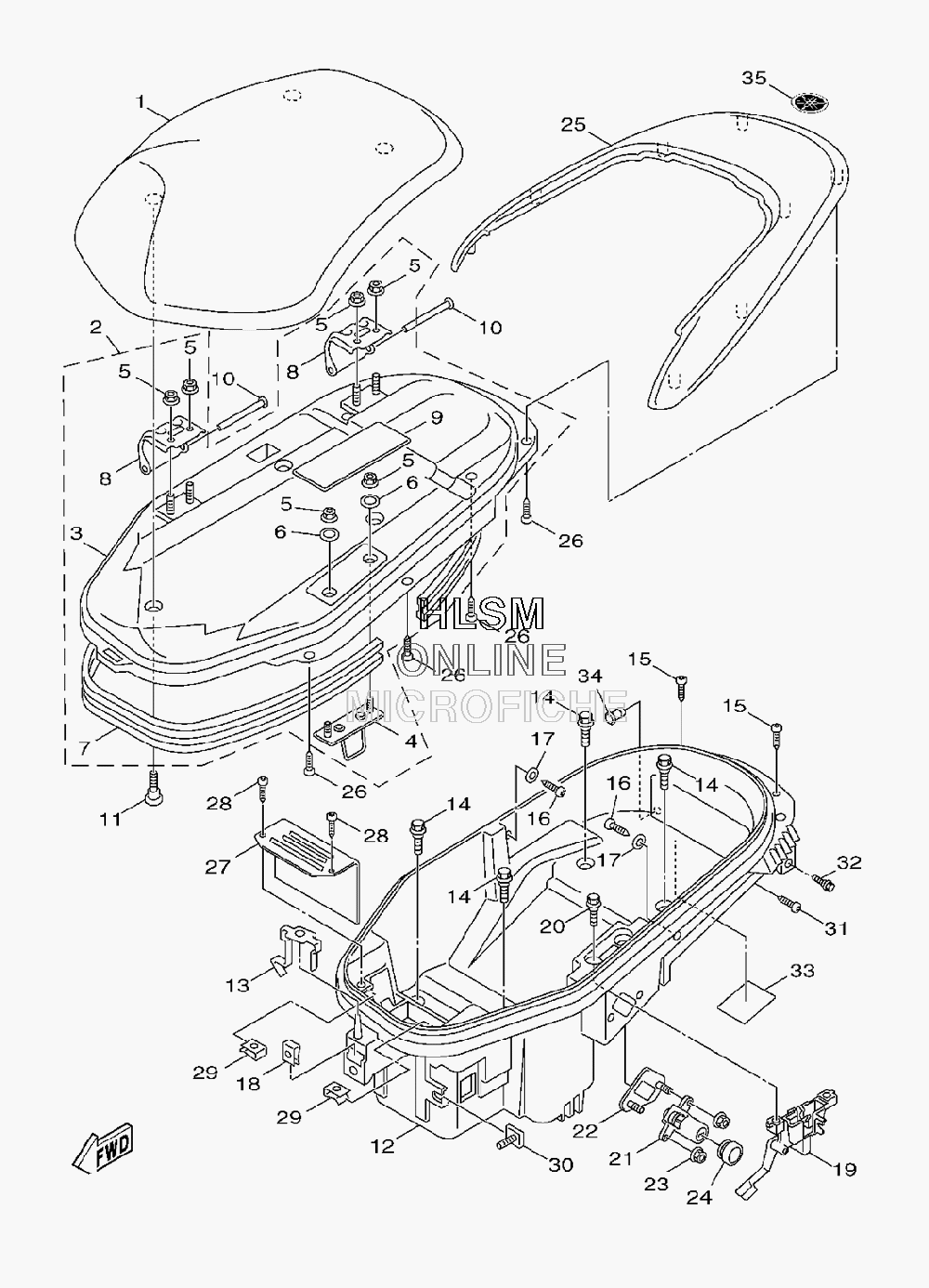

SEAT ASSY. для Yamaha C3 - 2009 года выпуска
-
№АртикулНазвание
-
13B3-F4710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
23B3-F470E-00-00 BOTTOM PLATE COMP.BOTTOM PLATE COMP.
-
33B3-F470E-W0-00 BOTTOM PLATE COMP.BOTTOM PLATE COMP.
-
43B3-F4728-00-00 BRACKET, SEATBRACKET, SEAT
-
595707-06500-00 NUT, FLANGENUT, FLANGE
-
690201-06008-00 WASHER, PLATEWASHER, PLATE
-
73B3-F475M-00-00 SEALSEAL
-
83B3-F4726-00-00 HINGE, SEATHINGE, SEAT
-
93B3-F4858-00-00 SEALSEAL
-
103B3-F4727-00-00 PIN, SEAT FITTINGPIN, SEAT FITTING
-
1190109-06061-00 BOLTBOLT
-
123B3-F473R-01-00 BOX 1BOX 1
-
133B3-F115J-00-00 BRACKET, HELMET HANGERBRACKET, HELMET HANGER
-
1490109-06043-00 BOLTBOLT
-
1597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1697707-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
1790201-06856-00 WASHER, PLATEWASHER, PLATE
-
1890183-06801-00 NUT, SPRINGNUT, SPRING
-
193B3-F4780-10-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
2090109-06043-00 BOLTBOLT
-
213B3-F4709-00-00 ROTOR ASSYROTOR ASSY
-
223B3-F478X-00-00 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
2395707-06500-00 NUT, FLANGENUT, FLANGE
-
243B3-F482H-00-00 CAPCAP
-
253B3-F4711-00-P4 COVER, SINGLE SEAT (USE FOR COLOR S3 / 0791)COVER, SINGLE SEAT (USE FOR COLOR S3 / 0791)
-
253B3-F4711-00-EY COVER, SINGLE SEAT (USE FOR COLOR HTR / 00EY)COVER, SINGLE SEAT (USE FOR COLOR HTR / 00EY)
-
2697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
273B3-H2129-00-00 COVER, BATTERYCOVER, BATTERY
-
2897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2990183-05807-00 NUT, SPRINGNUT, SPRING
-
303B3-H1674-00-00 BOLTBOLT
-
3197707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
3290119-06857-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
333B3-F4854-00-00 DAMPERDAMPER
-
343B3-F4481-00-00 PLUGPLUG
-
355YR-F8315-00-00 EMBLEMEMBLEM
