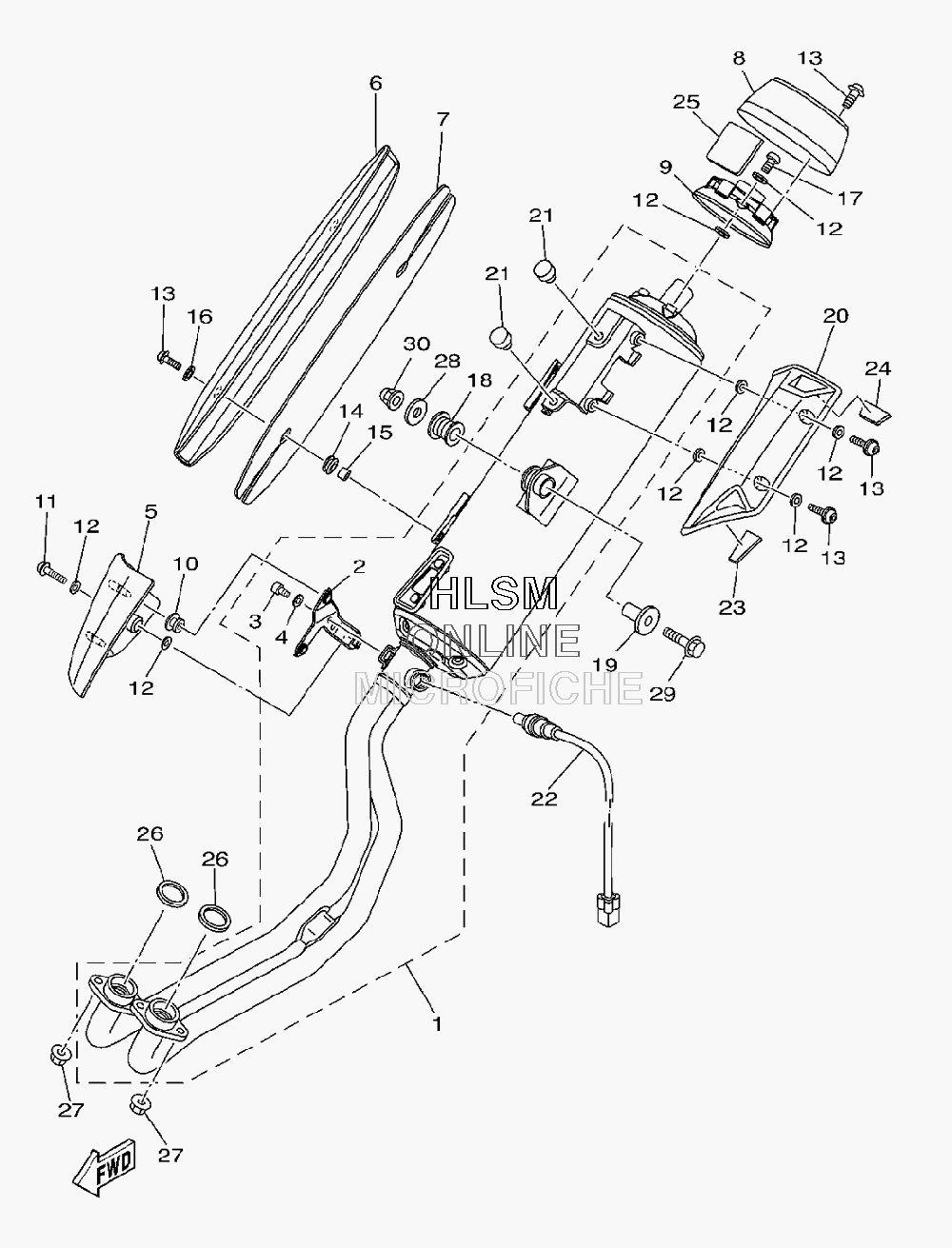

EXHAUST ASSY. для Yamaha TMAX (XP500YL) (BLUE) - 2009 года выпуска
-
№АртикулНазвание
-
14B5-14711-20-00 MUFFLER 1MUFFLER 1
-
24B5-1471M-00-00 BRACKET, 1-3BRACKET, 1-3
-
391380-06012-00 BOLTBOLT
-
492990-06200-00 WASHERWASHER
-
54B5-1465R-00-00 PLATE, PROTECTORPLATE, PROTECTOR
-
65VU-1465T-00-00 PLATE, PROTECTORPLATE, PROTECTOR
-
75VU-1465U-00-00 PLATE, PROTECTOR 3PLATE, PROTECTOR 3
-
85RU-14799-00-00 CAPCAP
-
94B5-14629-00-00 STAY, PROTECTORSTAY, PROTECTOR
-
1090480-10332-00 GROMMETGROMMET
-
1190111-06020-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
125GM-14766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
-
1390111-06015-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1490480-12581-00 GROMMETGROMMET
-
1590387-06023-00 COLLARCOLLAR
-
1690201-062G3-00 WASHER, PLATEWASHER, PLATE
-
1798980-06010-00 SCREW, BINDSCREW, BIND
-
1836Y-27424-01-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
1990387-10046-00 COLLARCOLLAR
-
204B5-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
2122W-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
224B5-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
234B5-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
244B5-14738-00-00 PROTECTOR, MUFFLER 3PROTECTOR, MUFFLER 3
-
254B5-1465V-00-00 PLATE, PROTECTOR 4PLATE, PROTECTOR 4
-
264BR-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
2795602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890201-10043-00 WASHER, PLATEWASHER, PLATE
-
2995812-10040-00 BOLT, FLANGEBOLT, FLANGE
-
3090176-10075-00 NUT, CROWNNUT, CROWN
