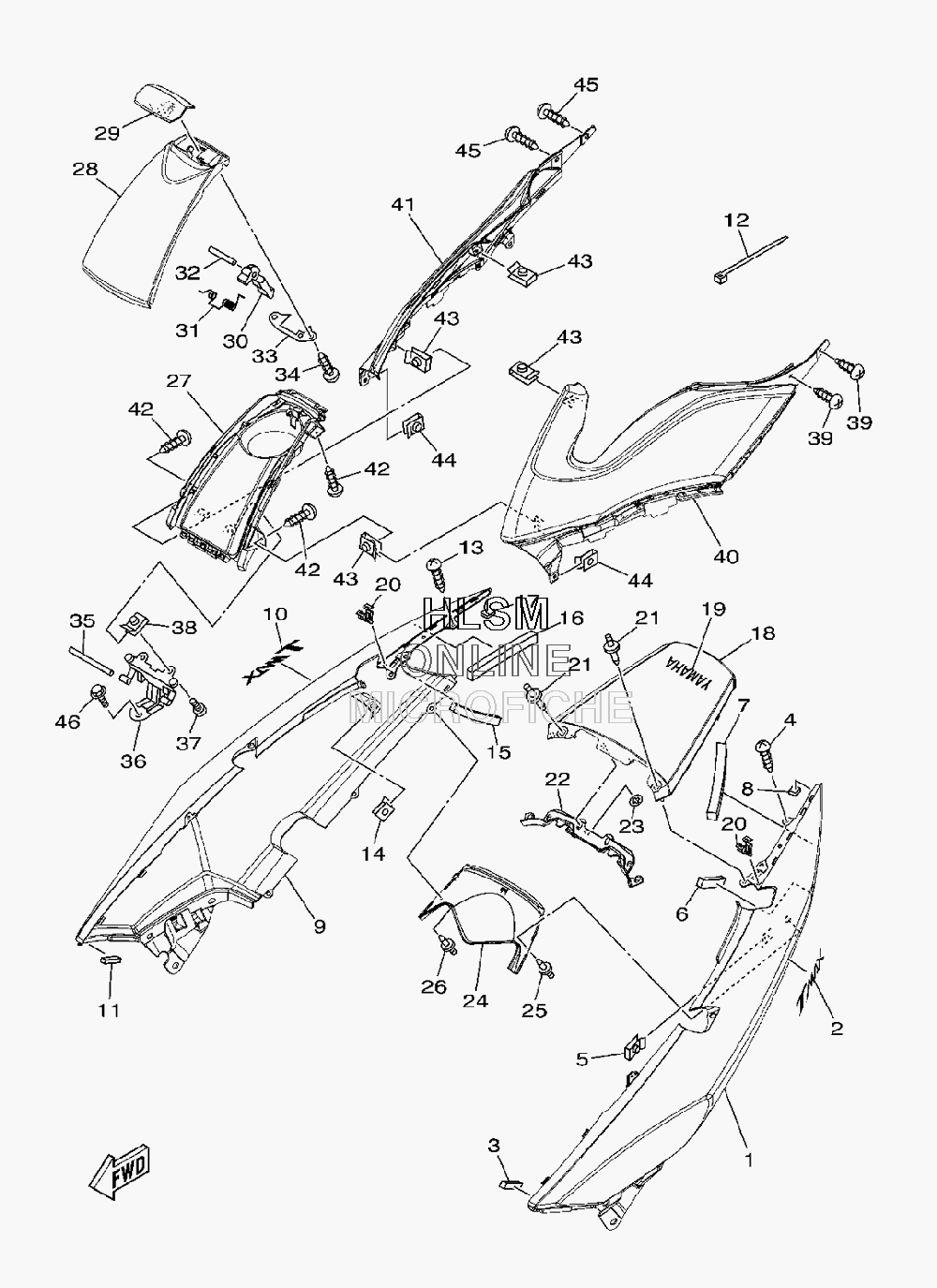

SIDE COVER для Yamaha TMAX (XP500YL) (BLUE) - 2009 года выпуска
-
№АртикулНазвание
-
14B5-21711-00-P1 COVER, SIDE 1 (FOR DPBMX)COVER, SIDE 1 (FOR DPBMX)
-
25GJ-2173B-20-00 EMBLEM 3DEMBLEM 3D
-
34B5-21717-00-00 DAMPERDAMPER
-
497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
590183-05042-00 NUT, SPRINGNUT, SPRING
-
64B5-2174X-00-00 DAMPERDAMPER
-
74B5-2174Y-00-00 DAMPERDAMPER
-
84B5-21747-00-00 DAMPERDAMPER
-
94B5-21721-00-P1 COVER, SIDE 2 (FOR DPBMX)COVER, SIDE 2 (FOR DPBMX)
-
105GJ-2173B-20-00 EMBLEM 3DEMBLEM 3D
-
114B5-21717-00-00 DAMPERDAMPER
-
125Y9-12491-00-00 CLAMP 1CLAMP 1
-
1397702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1490183-05042-00 NUT, SPRINGNUT, SPRING
-
154B5-2174X-00-00 DAMPERDAMPER
-
164B5-2174Y-00-00 DAMPERDAMPER
-
174B5-21747-00-00 DAMPERDAMPER
-
184B5-2171A-00-P1 COVER, TOPCOVER, TOP
-
1999247-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
2090468-040A0-00 CLIPCLIP
-
2190269-06008-00 RIVETRIVET
-
224B5-2175N-00-00 COVER, FLANGECOVER, FLANGE
-
2390183-05M02-00 NUT, SPRINGNUT, SPRING
-
244B5-2177B-00-00 LID, COVERLID, COVER
-
2590269-06001-00 RIVETRIVET
-
2690269-06001-00 RIVETRIVET
-
274B5-2473F-00-00 COVER, SEAT COMP.COVER, SEAT COMP.
-
284B5-2473T-00-00 LID 1LID 1
-
294B5-2477F-00-00 LEVER, SEATLEVER, SEAT
-
305GJ-24754-01-00 HOOK, SEATHOOK, SEAT
-
314HC-24758-00-00 SPRINGSPRING
-
3293603-50195-00 PIN, DOWELPIN, DOWEL
-
334B5-24217-00-00 COVERCOVER
-
3497702-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
355GJ-24774-00-00 PINPIN
-
364B5-24762-00-00 REINFORCEMENTREINFORCEMENT
-
3798902-05010-00 SCREW, BINDSCREW, BIND
-
3890183-050A7-00 NUT, SPRINGNUT, SPRING
-
3997702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
404B5-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
414B5-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
4297702-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
4390183-040A0-00 NUT, SPRINGNUT, SPRING
-
4490183-05042-00 NUT, SPRINGNUT, SPRING
-
4597702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
4695802-06010-00 BOLT, FLANGEBOLT, FLANGE
