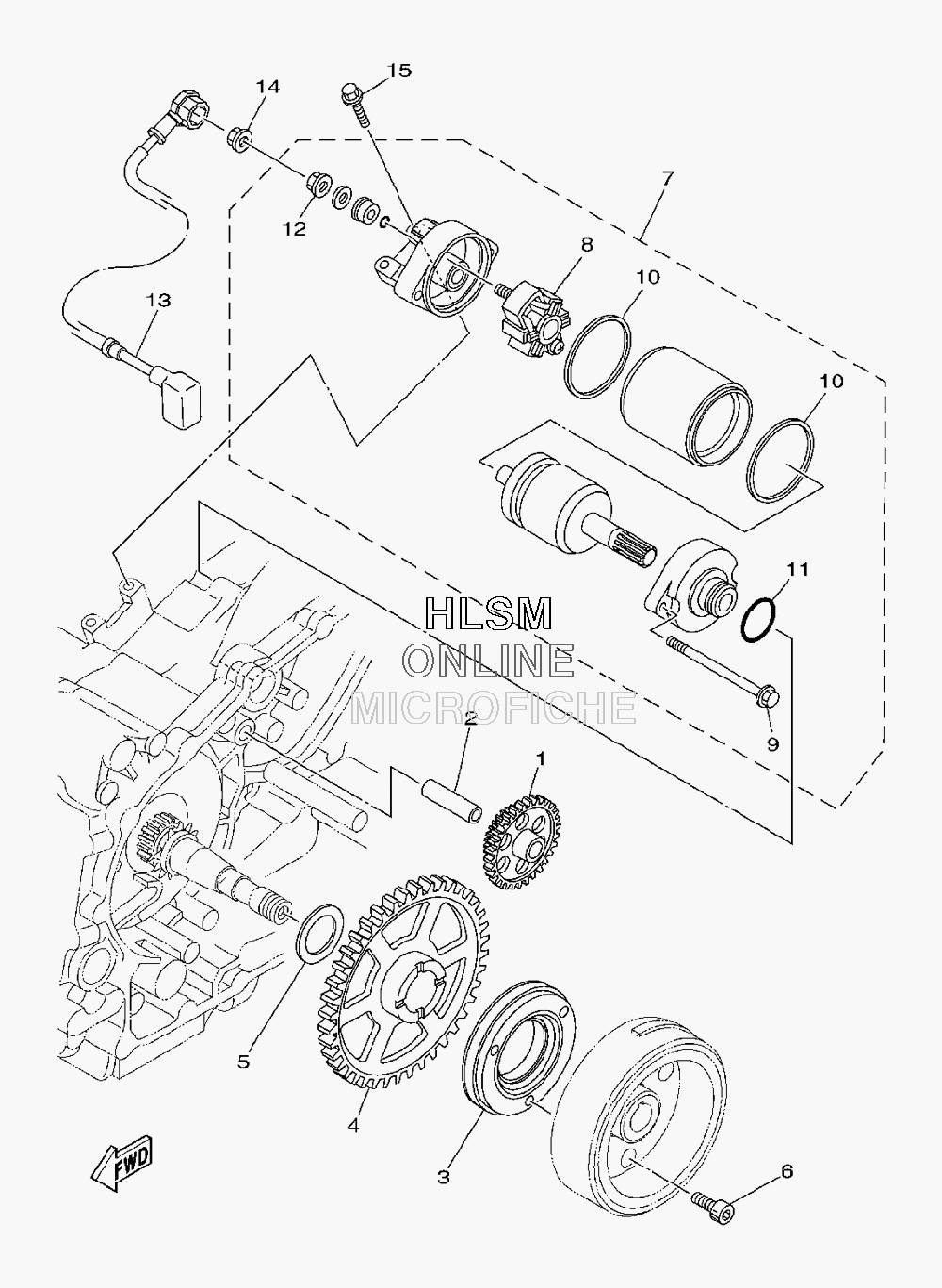

STARTING MOTOR ASSY. для Yamaha TMAX (XP500YL) (BLUE) - 2009 года выпуска
-
№АртикулНазвание
-
15GJ-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
236Y-15521-01-00 SHAFT 1SHAFT 1
-
34NK-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
45GJ-15517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
590201-25290-00 WASHER, PLATEWASHER, PLATE
-
690110-08080-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
74B5-81890-00-00 MOTOR ASSYMOTOR ASSY
-
84B5-81840-00-00 BRUSH HOLDER ASSYBRUSH HOLDER ASSY
-
94B5-81826-00-00 BOLTBOLT
-
104B5-81844-00-00 GASKETGASKET
-
111FK-81847-00-00 O-RINGO-RING
-
124XV-8182A-00-00 NUTNUT
-
134B5-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
144XV-8182A-00-00 NUTNUT
-
1595812-06025-00 BOLT, FLANGEBOLT, FLANGE
