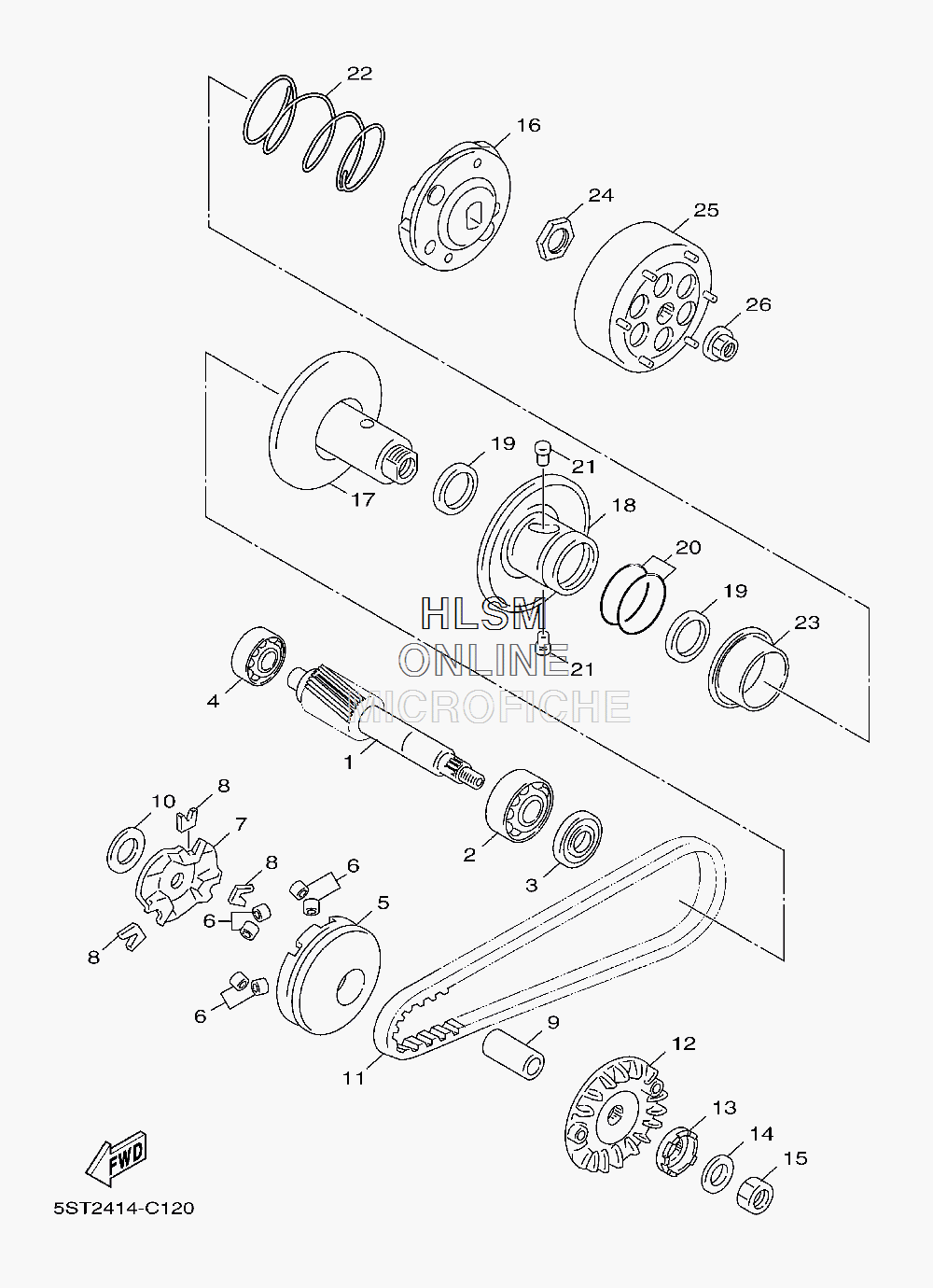

CLUTCH ASSY. для Yamaha VINO CLASSIC - 2011 года выпуска
-
№АртикулНазвание
-
15ST-E6111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
293306-203YA-00 BEARINGBEARING
-
393102-17806-00 OIL SEALOIL SEAL
-
493306-200Y1-00 BEARINGBEARING
-
53XY-E7620-01-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
65ST-E7632-00-00 WEIGHTWEIGHT
-
75ST-E7623-00-00 CAMCAM
-
85ST-E7653-00-00 SLIDERSLIDER
-
990387-13800-00 COLLARCOLLAR
-
1090201-13801-00 WASHER, PLATEWASHER, PLATE
-
115ST-E7641-00-00 V-BELTV-BELT
-
125ST-E7611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
133KJ-15657-00-00 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
1490208-10012-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
1590170-10219-00 NUTNUT
-
165ST-E6620-00-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
175SU-E7660-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
185ST-E7670-01-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
195SU-E7465-00-00 OIL SEALOIL SEAL
-
205SU-E7465-10-00 O-RINGO-RING
-
215SU-E7664-00-00 PIN, GUIDEPIN, GUIDE
-
225ST-E7683-00-00 SPRING, SECONDARYSPRING, SECONDARY
-
235SU-E7684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
245SU-E7668-00-00 NUTNUT
-
255ST-E6611-01-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
2690179-10609-00 NUTNUT
