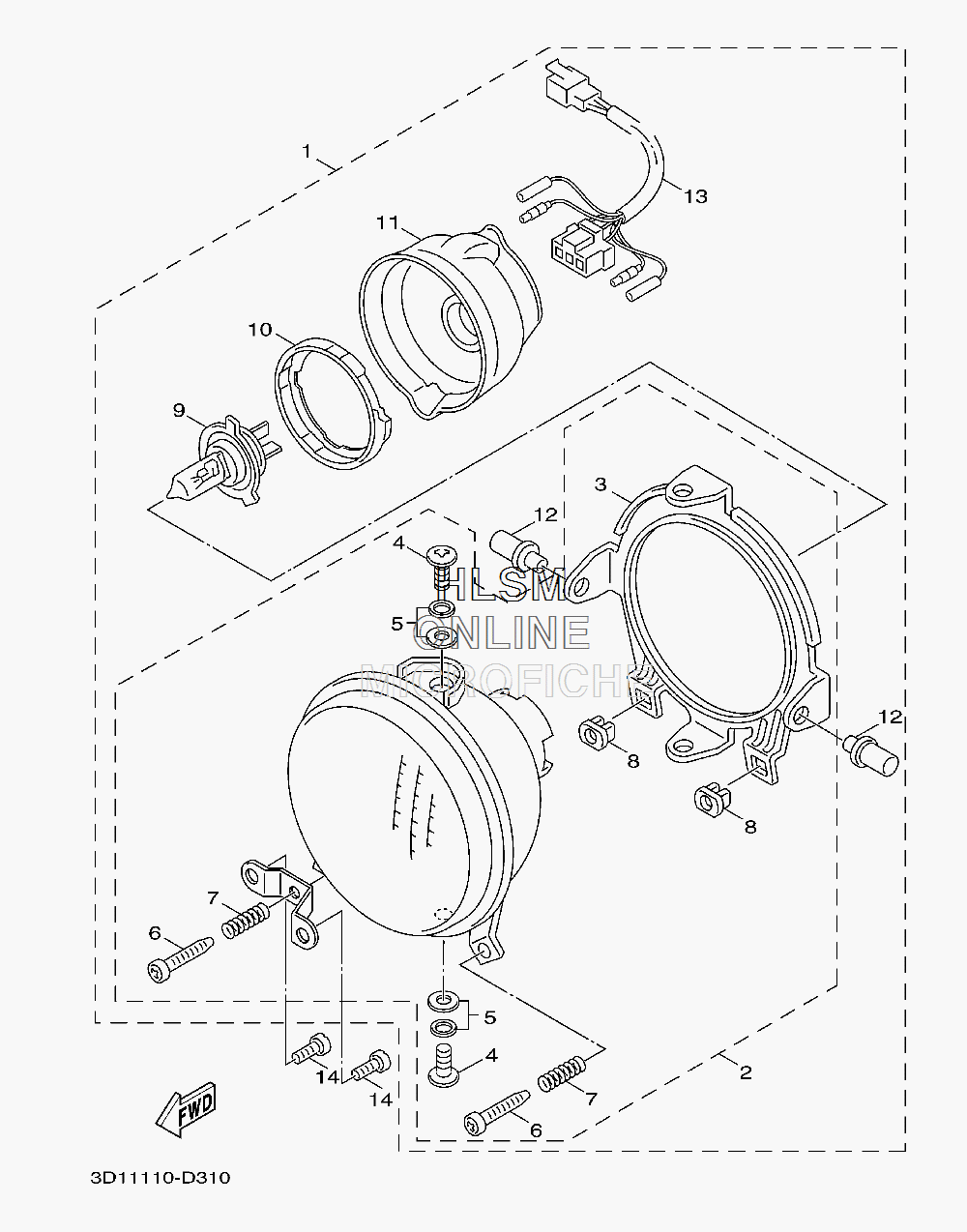

HEADLIGHT ASSY. для Yamaha VINO CLASSIC - 2011 года выпуска
-
№АртикулНазвание
-
13D1-H4310-01-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
23D1-H4300-00-00 ...HEADLIGHT ASSY...HEADLIGHT ASSY
-
33D1-H4318-00-00 ......STAY, HEADLIGHT 1......STAY, HEADLIGHT 1
-
45PJ-H4325-00-00 ......SCREW, RIM FITTING......SCREW, RIM FITTING
-
55YR-H4344-10-00 ......WASHER, PLAIN......WASHER, PLAIN
-
65YR-H4331-10-00 ......SCREW, RIM ADJUSTING......SCREW, RIM ADJUSTING
-
75YR-H4332-00-00 ......SPRING, SCREW......SPRING, SCREW
-
85PJ-H4317-00-00 ......NUT......NUT
-
95PJ-H4314-00-00 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
105PJ-H4397-10-00 ...COVER, SOCKET...COVER, SOCKET
-
115PJ-H4378-10-00 ...CAP...CAP
-
125YR-H4345-00-00 ...DAMPER, HEADLIGHT...DAMPER, HEADLIGHT
-
133D1-H331E-00-00 ...CORD ASSY...CORD ASSY
-
1497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
