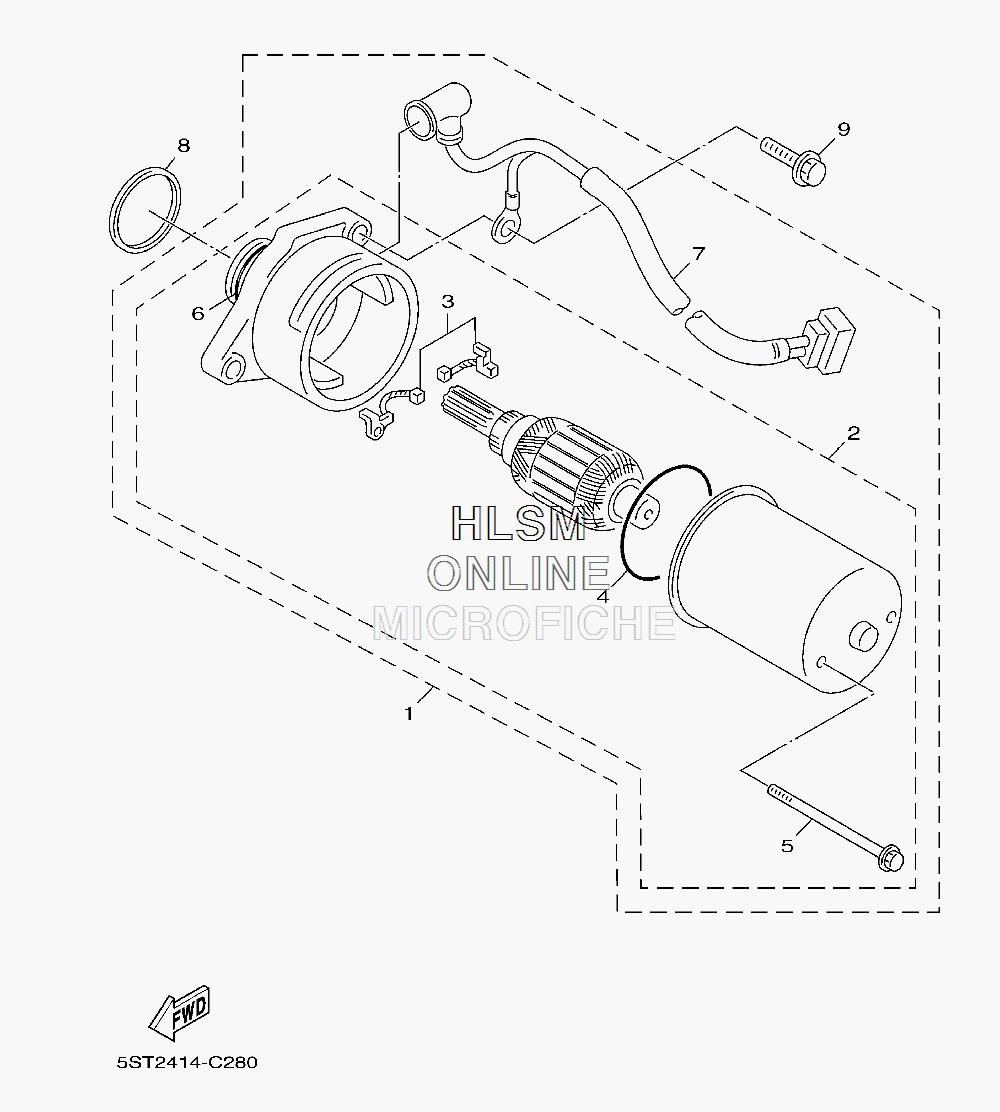

STARTING MOTOR ASSY. для Yamaha VINO CLASSIC - 2011 года выпуска
-
№АртикулНазвание
-
15ST-H1800-40-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
25ST-W8180-40-00 ...ELECTRIC STARTER KIT...ELECTRIC STARTER KIT
-
34DM-H1801-00-00 ......BRUSH SET......BRUSH SET
-
493210-44678-00 ......O-RING......O-RING
-
55ST-H1828-10-00 ......BOLT 2......BOLT 2
-
693210-23614-00 ......O-RING......O-RING
-
75ST-H183G-20-00 ...CORD COMP....CORD COMP.
-
890202-26800-00 WASHER, PLATEWASHER, PLATE
-
991317-06020-00 BOLTBOLT
