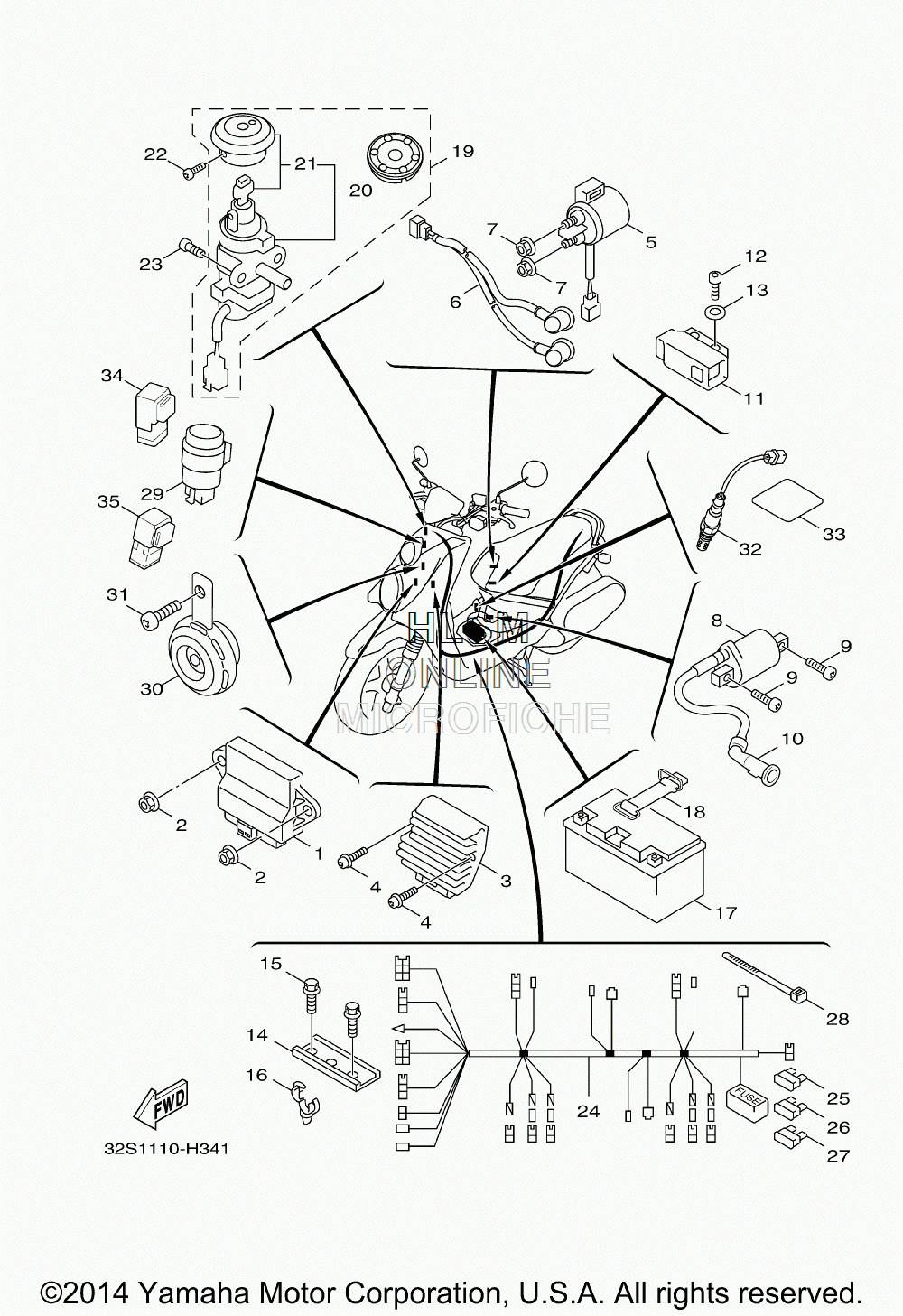

ELECTRICAL для Yamaha ZUMA 125 - 2015 года выпуска
-
№АртикулНазвание
-
132S-H591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
295707-05500-00 NUT, FLANGENUT, FLANGE
-
35ML-H1960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
495707-06500-00 NUT, FLANGENUT, FLANGE
-
55S9-H1940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
65S9-H2541-00-00 WIRE, LEADWIRE, LEAD
-
795307-06700-00 NUTNUT
-
85S9-H2310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
998507-06018-00 SCREW, PAN HEADSCREW, PAN HEAD
-
101P5-H2370-11-00 PLUG CAP ASSYPLUG CAP ASSY
-
115VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
1291317-04025-00 BOLTBOLT
-
1390201-04325-00 WASHER, PLATEWASHER, PLATE
-
144P9-E546C-00-00 HOLDERHOLDER
-
1597527-06512-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690464-25803-00 CLAMPCLAMP
-
174P9-H2100-20-00 BATTERY ASSYBATTERY ASSY
-
185S9-H2131-00-00 BAND, BATTERYBAND, BATTERY
-
1932S-WH203-02-00 KEY SETKEY SET
-
2032S-H2501-00-00 ...MAIN SWITCH STEERING LOCK...MAIN SWITCH STEERING LOCK
-
215S9-WH250-10-A0 ......SHUTTER & BLANK KEY......SHUTTER & BLANK KEY
-
215S9-WH250-10-C0 ......SHUTTER & BLANK KEY......SHUTTER & BLANK KEY
-
2290119-05004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2398507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2432S-H2590-02-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
251P5-H2151-00-00 ...FUSE (10A)...FUSE (10A)
-
265MH-H2151-00-00 ...FUSE (20A)...FUSE (20A)
-
275ML-H2151-10-00 ...FUSE (15A)...FUSE (15A)
-
2890464-40801-00 CLAMPCLAMP
-
295XN-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
3024P-H3371-00-00 HORNHORN
-
3198507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
321B9-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
335FA-E4452-00-00 SEALSEAL
-
344HC-81950-00-00 RELAY ASSY (4HC-00)RELAY ASSY (4HC-00)
-
354HM-81950-20-00 RELAY ASSY (4HM-20)RELAY ASSY (4HM-20)
