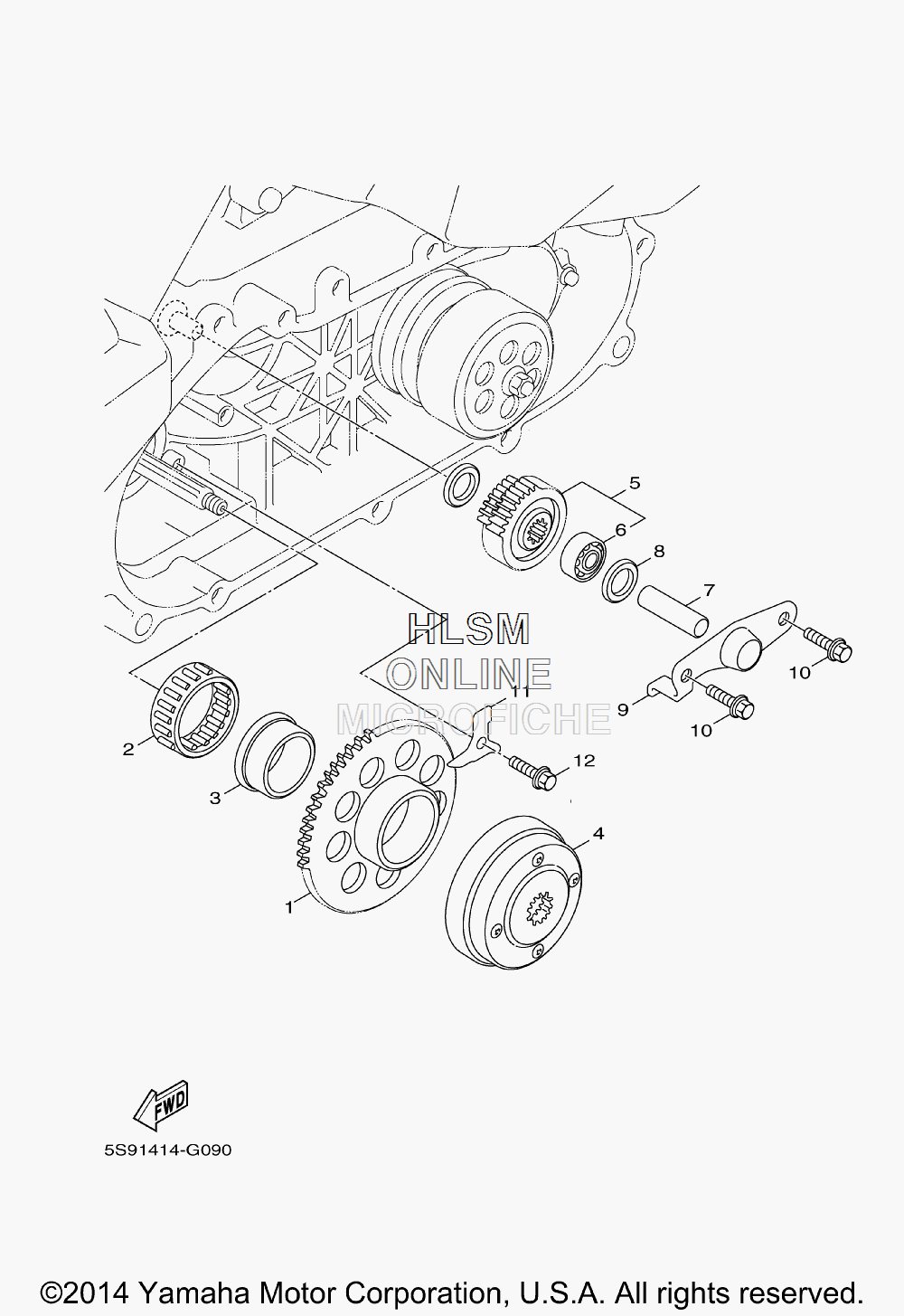

STARTER CLUTCH ASSY. для Yamaha ZUMA 125 - 2015 года выпуска
-
№АртикулНазвание
-
15S9-E5524-00-00 WHEEL, STARTERWHEEL, STARTER
-
293310-450X2-00 BEARINGBEARING
-
35LW-E5538-00-00 BOSS, GEAR 2BOSS, GEAR 2
-
45TY-E5570-01-00 STARTER CLUTCH ASSYSTARTER CLUTCH ASSY
-
55S9-E5650-00-00 IDLE GEAR ASSYIDLE GEAR ASSY
-
693315-110Y6-00 ...BEARING...BEARING
-
75CA-E5521-00-00 SHAFT 1SHAFT 1
-
890201-108A3-00 WASHER, PLATEWASHER, PLATE
-
95S9-E5532-00-00 PLATE, IDLE GEARPLATE, IDLE GEAR
-
1095027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
115TY-E5645-00-00 PLATEPLATE
-
1295027-06012-00 BOLT, FLANGEBOLT, FLANGE
