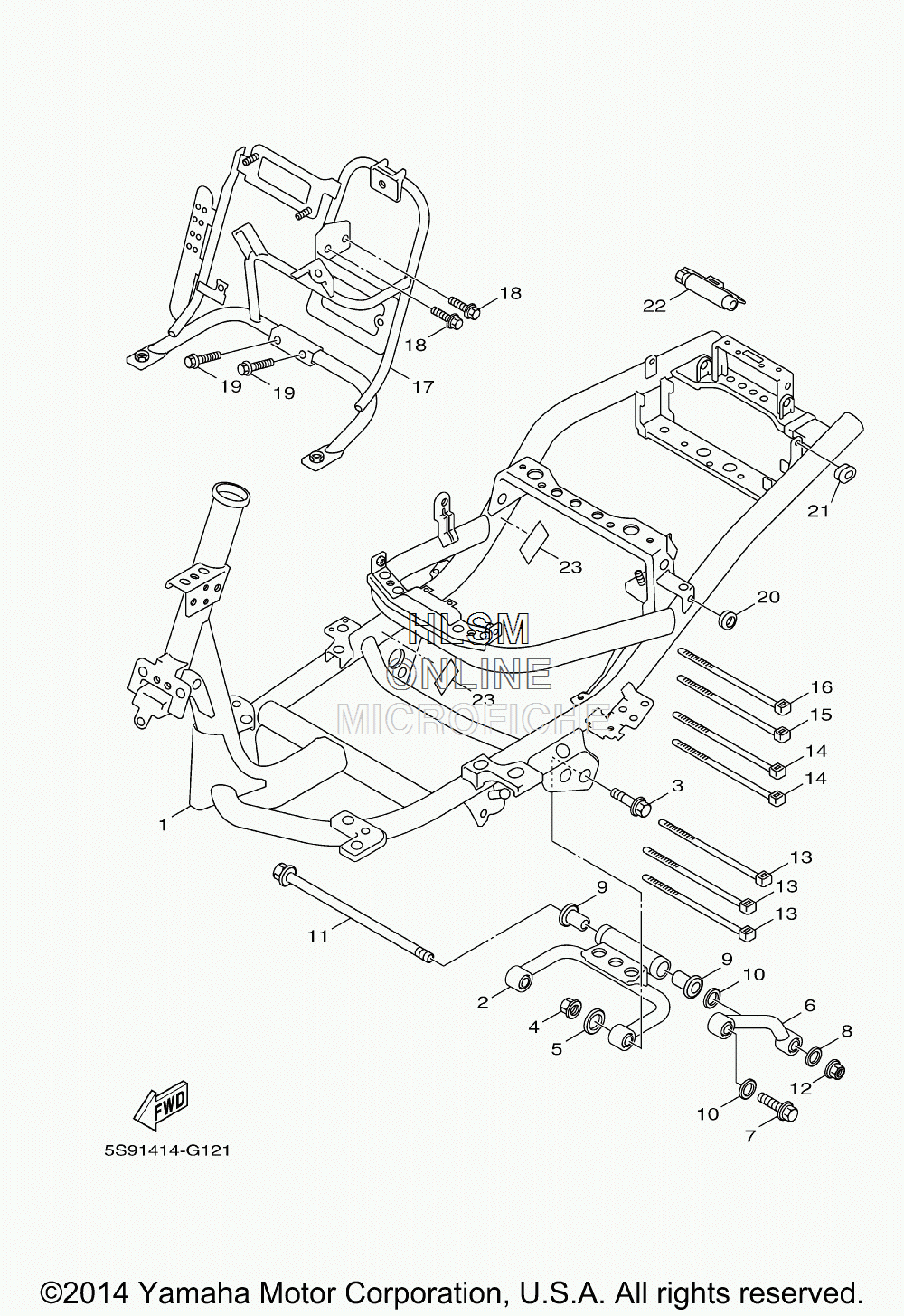

FRAME для Yamaha ZUMA 125 - 2015 года выпуска
-
№АртикулНазвание
-
132S-F1110-00-7M FRAME COMP. (MIDNIGHT SILVER)FRAME COMP. (MIDNIGHT SILVER)
-
25S9-F1420-00-00 ENGINE BRACKET COMP. 2ENGINE BRACKET COMP. 2
-
33UH-F1481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
490185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590201-105A2-00 WASHER, PLATEWASHER, PLATE
-
65ML-F1480-10-00 STAY, ENGINESTAY, ENGINE
-
75S9-F1482-00-00 BOLT, ENGINE MOUNTING 2BOLT, ENGINE MOUNTING 2
-
890201-105A2-00 WASHER, PLATEWASHER, PLATE
-
95ML-F1544-01-00 COLLAR 1COLLAR 1
-
1090202-15803-00 WASHER, PLATEWASHER, PLATE
-
115ML-F1481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
1290185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390464-40801-00 CLAMPCLAMP
-
1490464-12812-00 CLAMPCLAMP
-
1590464-20809-00 CLAMPCLAMP
-
1690464-60800-00 CLAMPCLAMP
-
1732S-F128A-00-00 BRACKET, REGULATORBRACKET, REGULATOR
-
1895807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1995817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
2090480-13814-00 GROMMETGROMMET
-
2190480-01558-00 GROMMETGROMMET
-
224CW-F8100-00-00 TOOL KITTOOL KIT
-
235ML-F1541-00-00 DAMPER 1DAMPER 1
