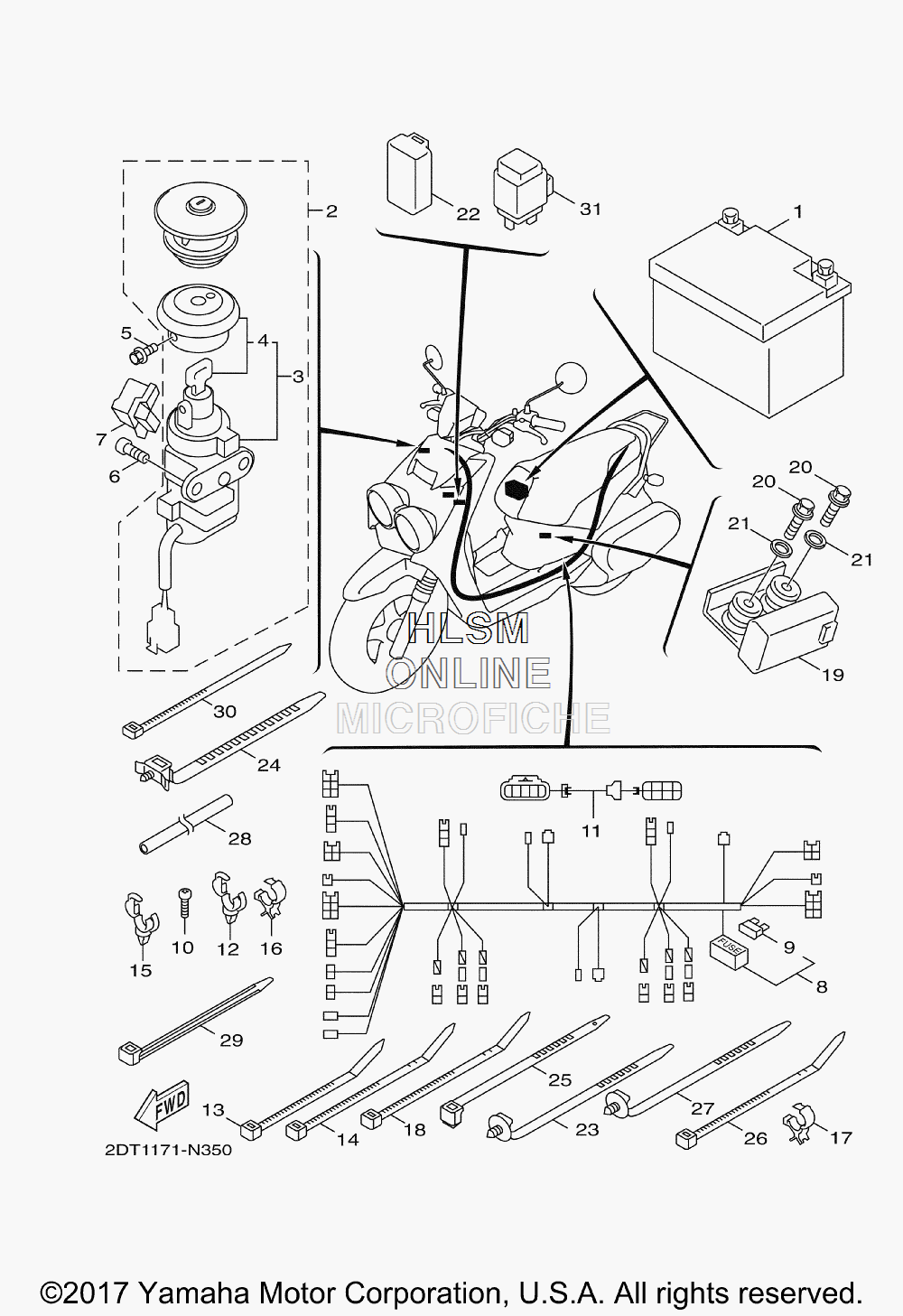

ELECTRICAL 2 для Yamaha ZUMA 50FX - 2017 года выпуска
-
№АртикулНазвание
-
15PJ-H2100-00-00 BATTERY ASSY (GTX5L-BS)BATTERY ASSY (GTX5L-BS)
-
21CD-WH203-02-00 KEY SETKEY SET
-
31CD-H2501-01-00 ...MAIN SWITCH STEERING LOCK...MAIN SWITCH STEERING LOCK
-
41CD-WH250-01-A0 ......MAIN SW. IMMOBILIZER KIT......MAIN SW. IMMOBILIZER KIT
-
41CD-WH250-01-C0 ......MAIN SW. IMMOBILIZER KIT......MAIN SW. IMMOBILIZER KIT
-
590119-05004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690155-06803-00 SCREW, FLAT FILLISTERSCREW, FLAT FILLISTER
-
73D0-H2155-00-00 BANDBAND
-
82DT-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
95ML-H2151-10-00 ...FUSE (15A)...FUSE (15A)
-
1095807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
113B3-H2509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
1290464-20803-00 CLAMPCLAMP
-
1390464-26800-00 CLAMPCLAMP
-
1490464-40801-00 CLAMPCLAMP
-
1590464-20803-00 CLAMPCLAMP
-
1690464-25801-00 CLAMPCLAMP
-
1790464-30801-00 CLAMPCLAMP
-
1890464-40801-00 CLAMPCLAMP
-
1932P-H2576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
2090110-04802-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2190201-047A2-00 WASHER, PLATEWASHER, PLATE
-
2229U-81950-93-00 RELAY ASSY (ACA12115-1)RELAY ASSY (ACA12115-1)
-
2390464-30802-00 CLAMPCLAMP
-
2490464-45803-00 CLAMPCLAMP
-
2590464-12812-00 CLAMPCLAMP
-
2690464-40801-00 CLAMPCLAMP
-
2790464-30802-00 CLAMPCLAMP
-
281CD-F117G-10-00 PROTECTORPROTECTOR
-
2990465-13152-00 CLAMPCLAMP
-
3090464-60800-00 CLAMPCLAMP
-
313B3-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
