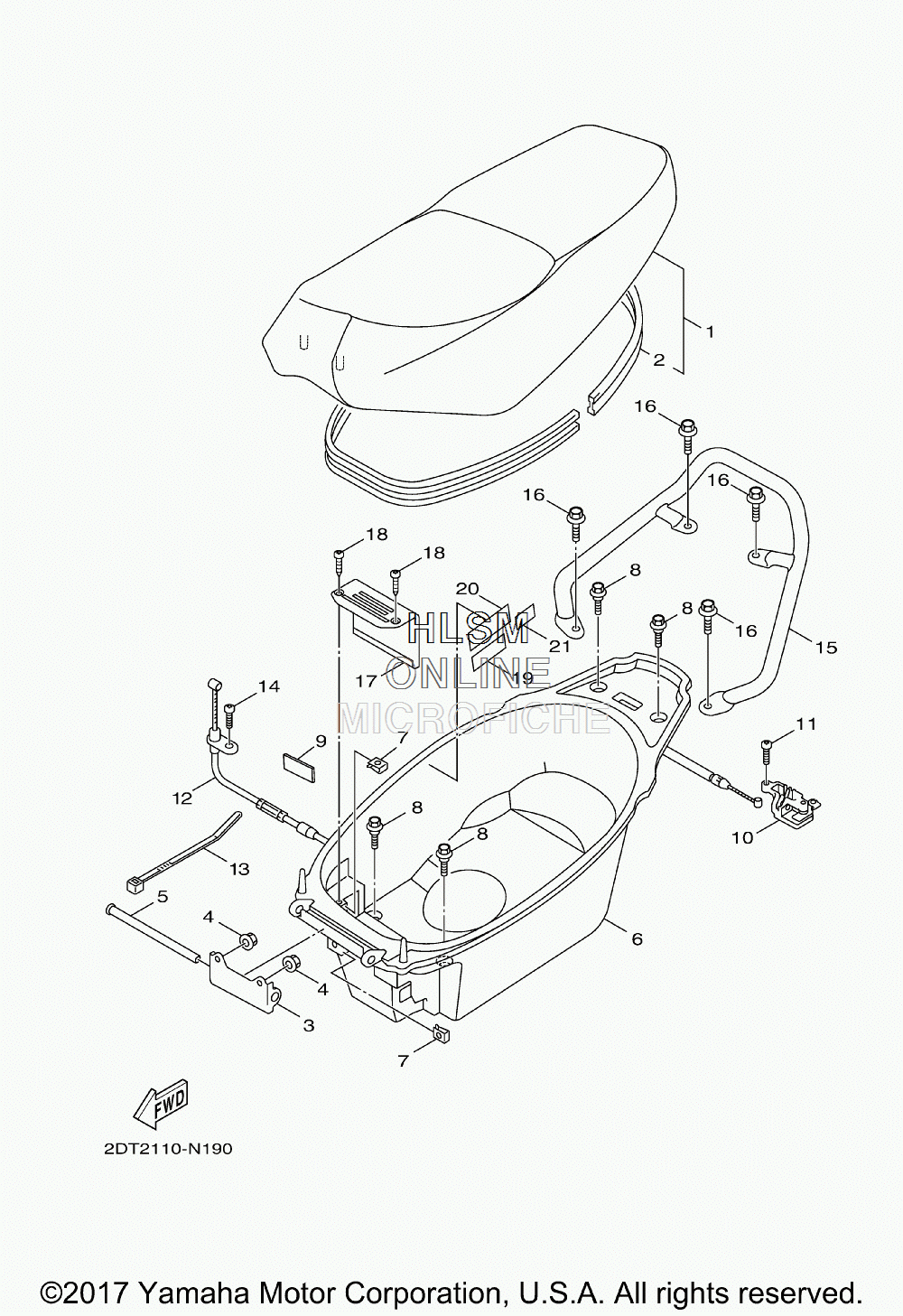

SEAT ASSY. для Yamaha ZUMA 50FX - 2017 года выпуска
-
№АртикулНазвание
-
11CD-F4730-10-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
21CD-F475M-00-00 ...SEAL...SEAL
-
34CW-F4726-01-00 HINGE, SEATHINGE, SEAT
-
495707-06500-00 NUT, FLANGENUT, FLANGE
-
590241-10015-00 PINPIN
-
61CD-F473R-00-00 BOX 1BOX 1
-
790183-05816-00 NUT, SPRINGNUT, SPRING
-
890109-06043-00 BOLTBOLT
-
91CD-H2176-00-00 DAMPERDAMPER
-
105ML-F4780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1195827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
121CD-F478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1390464-26800-00 CLAMPCLAMP
-
1498507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
152DT-F4812-00-35 HANDLE (SL - SILVER)HANDLE (SL - SILVER)
-
1690119-08850-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
173B3-H2129-00-00 COVER, BATTERYCOVER, BATTERY
-
1897707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
194JK-F8446-01-00 LABEL, CAUTIONLABEL, CAUTION
-
203B3-F1668-00-00 LABEL, TIRELABEL, TIRE
-
215PJ-F4877-01-00 LABEL, CAUTIONLABEL, CAUTION
