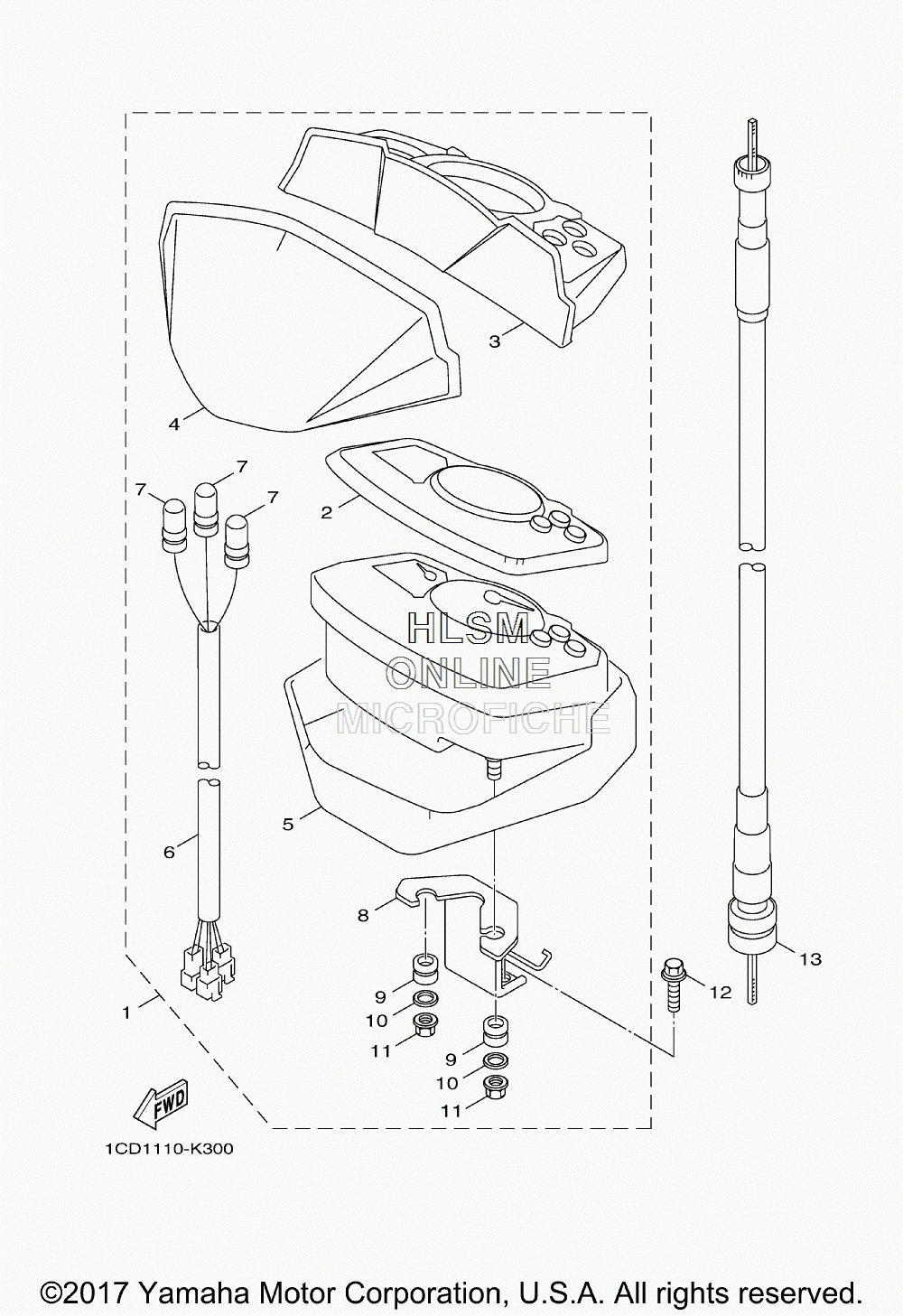

INSTRUMENT PANEL для Yamaha ZUMA 50FX - 2017 года выпуска
-
№АртикулНазвание
-
12DT-H3500-10-7X METER ASSY (LNMH - GRAY METALLIC)METER ASSY (LNMH - GRAY METALLIC)
-
12DT-H3500-10-8X METER ASSY (HTR - HEAT RED)METER ASSY (HTR - HEAT RED)
-
21CD-H353K-00-00 ...GLASS PLATE...GLASS PLATE
-
31CD-H353E-00-5Y ......CASE, METER UPPER (LNMH - GRAY METALLIC)......CASE, METER UPPER (LNMH - GRAY METALLIC)
-
31CD-H353E-00-3X ......CASE, METER UPPER (HTR - HEAT RED)......CASE, METER UPPER (HTR - HEAT RED)
-
41CD-H3559-00-P9 ......COVER, METER (LNMH - GRAY METALLIC)......COVER, METER (LNMH - GRAY METALLIC)
-
41CD-H3559-00-EY ......COVER, METER (HTR - HEAT RED)......COVER, METER (HTR - HEAT RED)
-
51CD-H3507-00-00 ...CASE COMP, UNDER...CASE COMP, UNDER
-
62DT-H3509-00-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
75JS-H3517-00-00 ...BULB (12V-1.7W T6.5)...BULB (12V-1.7W T6.5)
-
81CD-H3519-01-00 ...BRACKET, METER...BRACKET, METER
-
95ST-H3513-00-00 ...DAMPER...DAMPER
-
105ST-H3663-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
115ST-H354P-00-00 ...NUT...NUT
-
1295027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
131CD-H3550-00-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
