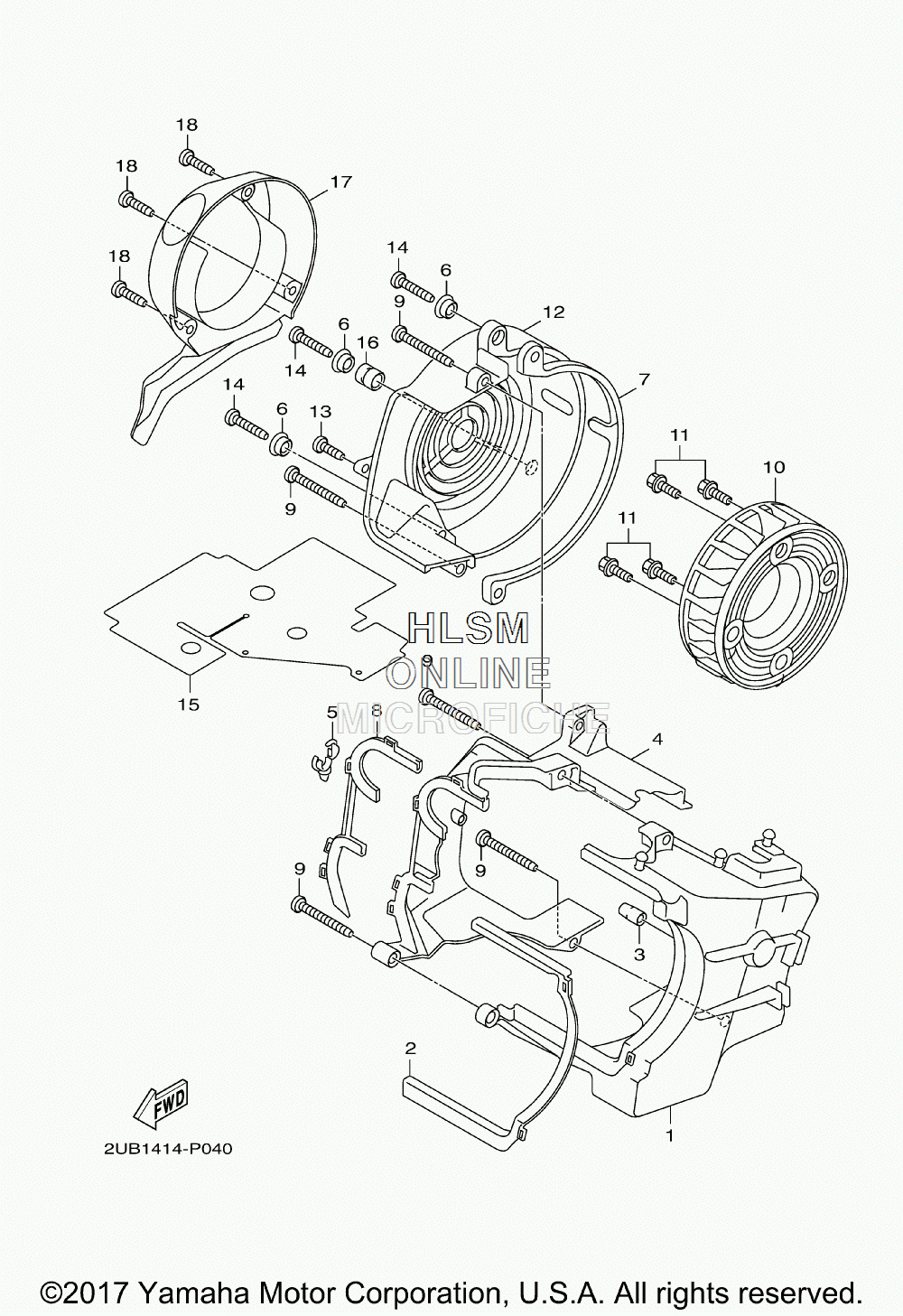

AIR SHROUD W/ FAN для Yamaha ZUMA 125 - 2018 года выпуска
-
№АртикулНазвание
-
15ML-E2651-00-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
25ML-E2659-00-00 DAMPER, AIR SHROUD 2DAMPER, AIR SHROUD 2
-
33KW-E3569-00-00 PLUG, BLINDPLUG, BLIND
-
44C6-E2652-00-00 AIR SHROUD, CYLINDER 2AIR SHROUD, CYLINDER 2
-
590464-10800-00 CLAMPCLAMP
-
690387-068F9-00 COLLARCOLLAR
-
75ML-E2658-00-00 DAMPER, AIR SHROUD 1DAMPER, AIR SHROUD 1
-
85ML-E2668-00-00 DAMPER, AIR SHROUD 3DAMPER, AIR SHROUD 3
-
997707-60530-00 SCREW, TAPPINGSCREW, TAPPING
-
102JS-E2611-00-00 FANFAN
-
1190119-06857-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
125ML-E2653-01-00 AIR SHROUD, CYLINDER 3AIR SHROUD, CYLINDER 3
-
1397707-60516-00 SCREW, TAPPINGSCREW, TAPPING
-
1498980-06020-00 SCREW, BINDSCREW, BIND
-
152JS-E2682-00-00 PROTECTOR, HEATPROTECTOR, HEAT
-
1690480-12497-00 GROMMETGROMMET
-
172JS-E262H-00-00 GUIDE 1GUIDE 1
-
1897707-60520-00 SCREW, TAPPINGSCREW, TAPPING
