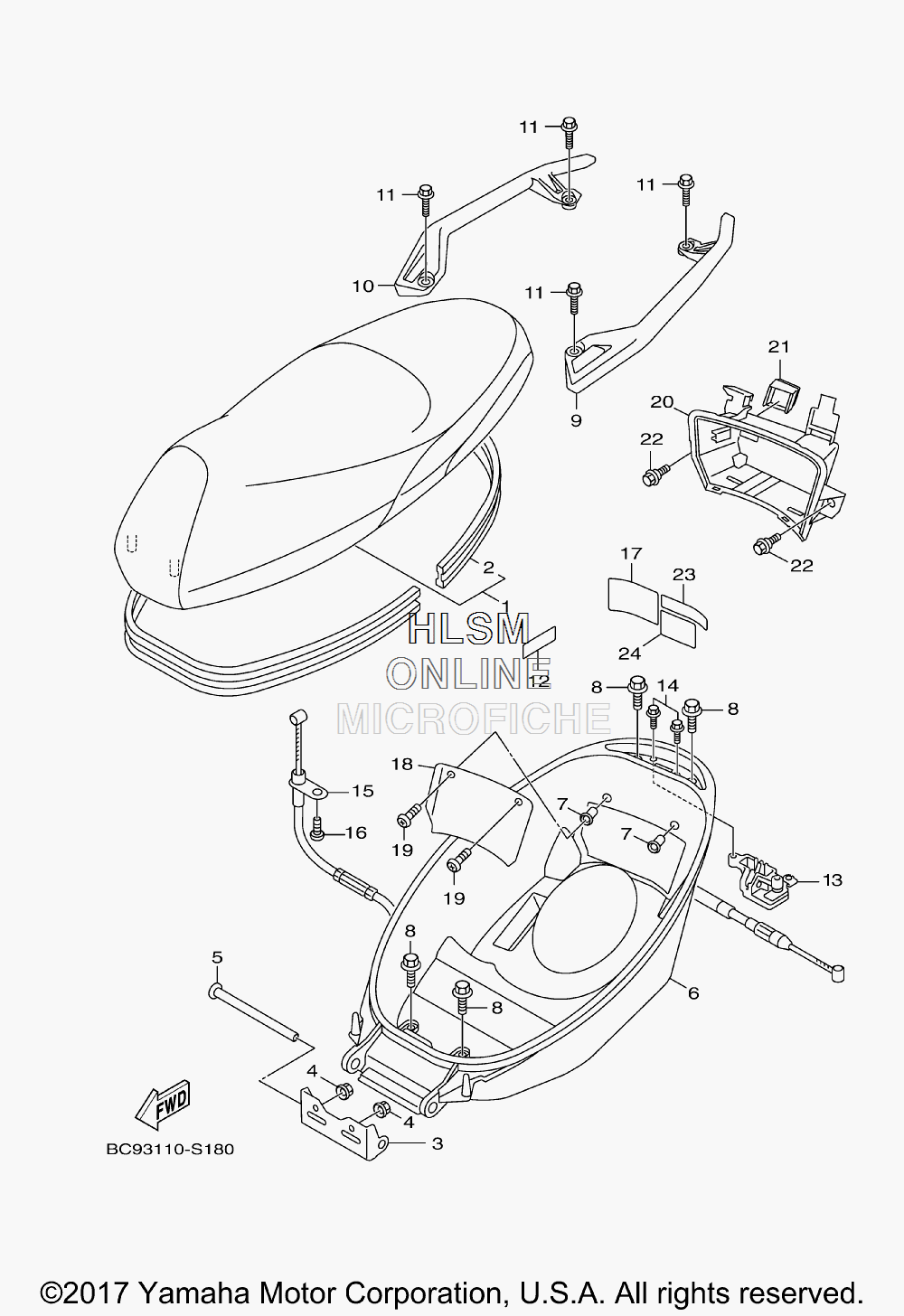

SEAT ASSY. для Yamaha ZUMA 125 - 2018 года выпуска
-
№АртикулНазвание
-
12JS-F4730-01-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
22JS-F475M-00-00 ...SEAL...SEAL
-
32JS-F4726-00-00 HINGE, SEATHINGE, SEAT
-
495702-06500-00 NUT, FLANGENUT, FLANGE
-
590241-10015-00 PINPIN
-
62JS-F473R-00-00 BOX 1BOX 1
-
790179-05849-00 NUTNUT
-
890109-06885-00 BOLTBOLT
-
92JS-F474A-00-P3 ASSIST, GRIPASSIST, GRIP
-
102JS-F474W-00-P3 ASSIST, GRIP 2ASSIST, GRIP 2
-
1195022-08030-00 BOLT, FLANGEBOLT, FLANGE
-
125PJ-F4877-01-00 LABEL, CAUTIONLABEL, CAUTION
-
135ML-F4780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1495802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
152JS-F478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1690119-05022-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1724P-F1668-00-00 LABEL, TIRELABEL, TIRE
-
182JS-H2129-01-00 COVER, BATTERYCOVER, BATTERY
-
1998907-05014-00 SCREW, BINDSCREW, BIND
-
202JS-XH21B-02-00 BOX,BATTERYBOX,BATTERY
-
212JS-H215B-00-00 CAPCAP
-
2290109-06172-00 BOLTBOLT
-
234JK-F8446-01-00 LABEL, CAUTIONLABEL, CAUTION
-
2432S-F1686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
