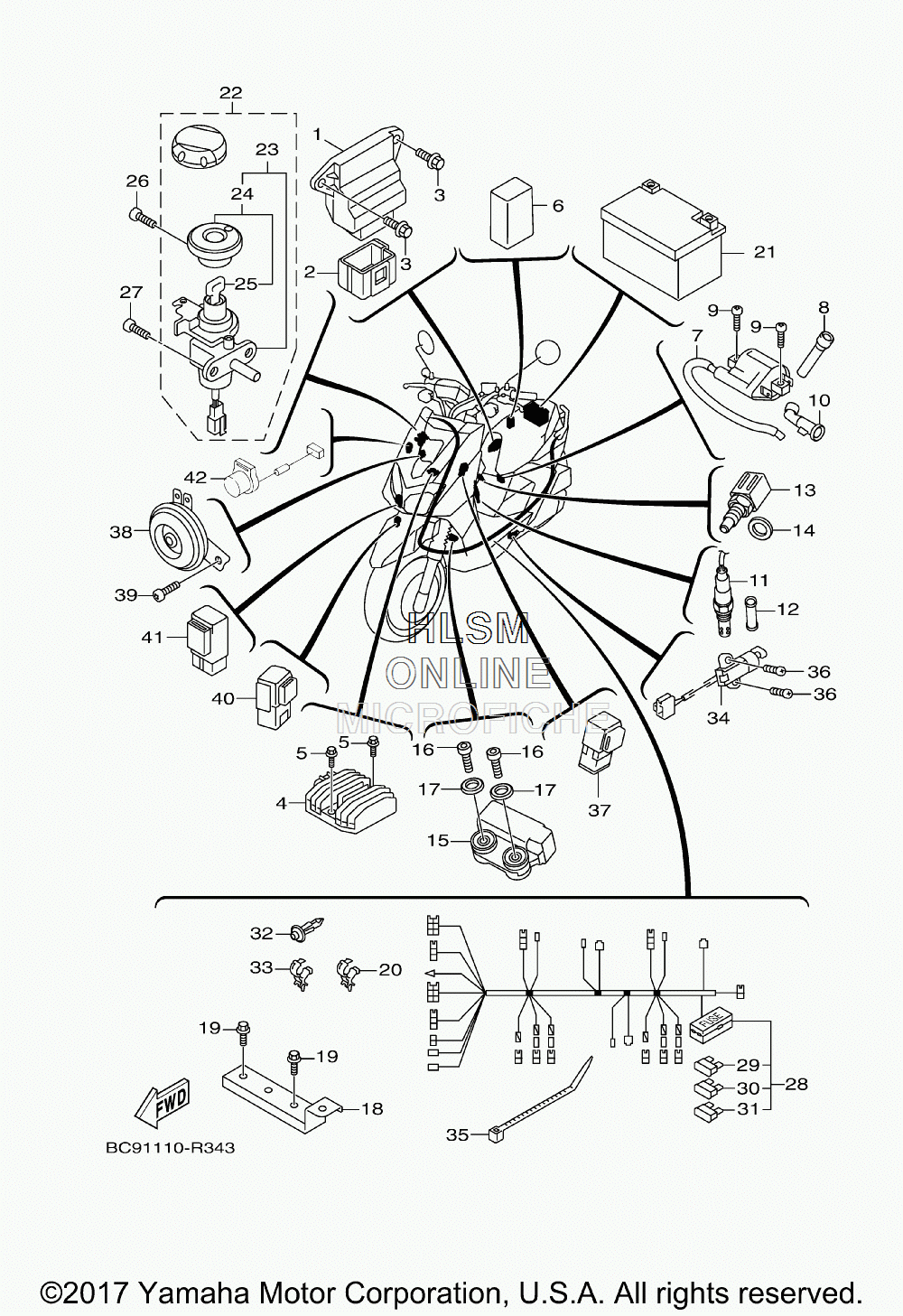

ELECTRICAL для Yamaha ZUMA 125 - 2018 года выпуска
-
№АртикулНазвание
-
1BC9-H591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
22JS-H1128-00-00 CLAMPCLAMP
-
395807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
45ML-H1960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
595807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
65WC-H1940-01-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
72JS-H2310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
81CE-H2373-00-00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
995023-06020-00 BOLTBOLT
-
101P5-H2370-11-00 PLUG CAP ASSYPLUG CAP ASSY
-
112EB-H592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
122EB-H5833-00-00 GROMMET,WIREGROMMET,WIRE
-
134P9-83591-00-00 THERMO UNITTHERMO UNIT
-
1490430-10802-00 GASKETGASKET
-
1532P-H2576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
1691312-04025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1790201-04027-00 WASHER, PLATEWASHER, PLATE
-
182JS-E546C-00-00 HOLDERHOLDER
-
1997527-06512-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090464-16803-00 CLAMPCLAMP
-
214P9-H2100-20-00 BATTERY ASSYBATTERY ASSY
-
22BG1-WH203-01-00 KEY SETKEY SET
-
23BG1-H2501-01-00 ...MAIN SWITCH STEERING LOCK...MAIN SWITCH STEERING LOCK
-
24BG1-WH250-00-C0 ......SHUTTER & BLANK KEY......SHUTTER & BLANK KEY
-
24BG1-WH250-00-A0 ......SHUTTER & BLANK KEY......SHUTTER & BLANK KEY
-
25BG1-H2511-00-00 ..........BLANK KEY..........BLANK KEY
-
2690119-05805-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2798502-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
28BC9-H2590-01-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
295MH-H2151-00-00 ...FUSE (20A)...FUSE (20A)
-
301P5-H2151-10-00 ...FUSE (10A)...FUSE (10A)
-
315ML-H2151-20-00 ...FUSE (7.5A)...FUSE (7.5A)
-
3290269-06803-00 RIVETRIVET
-
3390464-30804-00 CLAMPCLAMP
-
34BF9-H2566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
3590464-26800-00 CLAMPCLAMP
-
3690157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3752S-H3350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
3810B-H3371-00-00 HORNHORN
-
3995807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
4029U-81950-93-00 RELAY ASSY (ACA12115-1)RELAY ASSY (ACA12115-1)
-
414HM-81950-20-00 RELAY ASSY (4HM-20)RELAY ASSY (4HM-20)
-
423XY-H3390-02-00 AUDIO PILOT ASSYAUDIO PILOT ASSY
